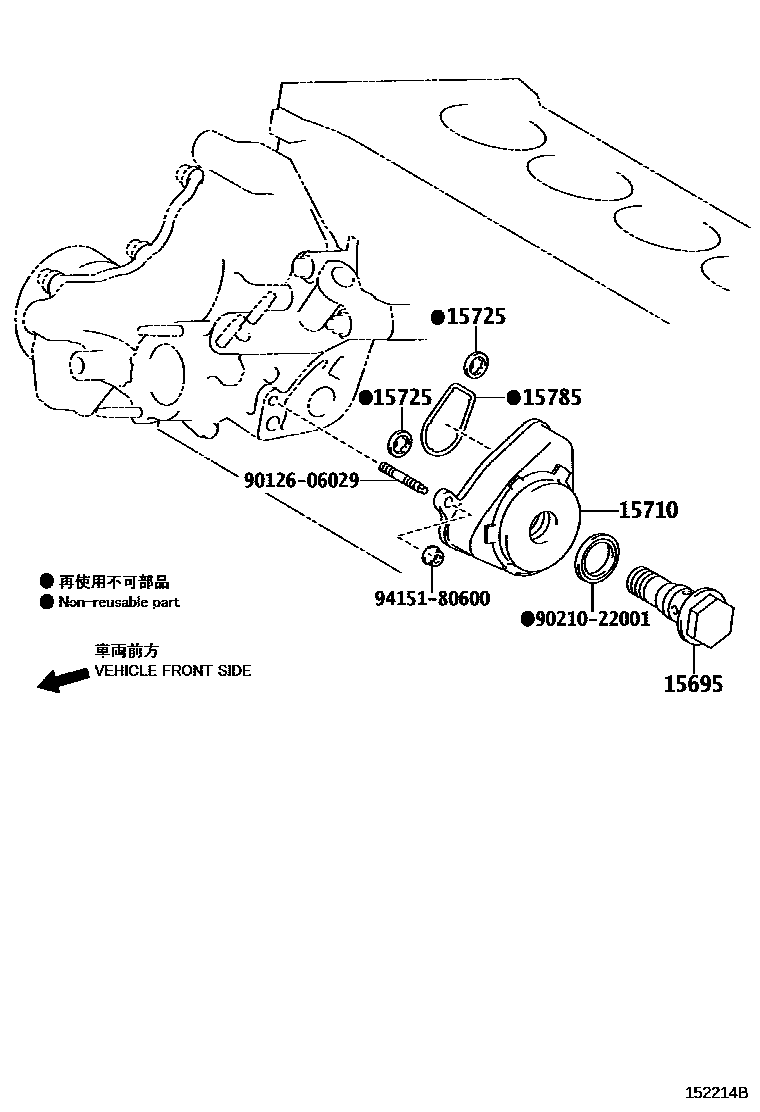

ENGINE OIL COOLER

0001 1 0002 1

15695BOLT, OIL COOLER UNION

main15695-62030i2ARFXE..AYZ15¥1,170201407-201709

15710COOLER ASSY, OIL

main15710-36010i2ARFXE..AYZ15¥32,900201407-201709

main15710-36030i8ARFTS..AGZ1#¥35,600201410-201705

sub15710-36031¥29,600

sub82715-78160¥600

sub91551-80616¥60

main15710-36031i8ARFTS..AGZ1#¥29,600201705-201709

15725GASKET, OIL COOLER COVER

main15725-36010i2ARFXE..AYZ10¥380201407-201709

15785GASKET, OIL COOLER

main15785-36010i2ARFXE..AYZ10¥380201407-201709

main15785-36020i8ARFTS..AGZ1#¥550201410-201602

main15785-36021i8ARFTS..AGZ1#¥380201602-201709

9012606029

main90126-06029¥60

9021022001

main90210-22001

9415180600

main94151-80600¥60

7 parts on this diagram · 2 diagrams in section
