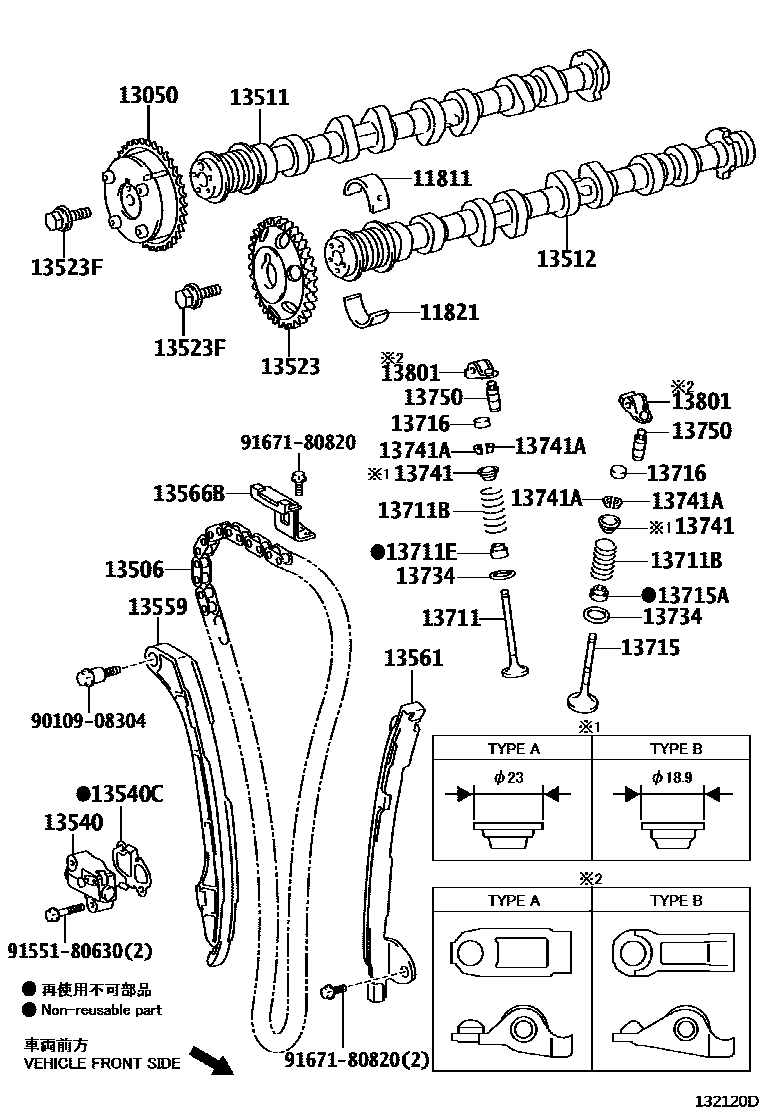

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
11821BEARING, CAMSHAFT, NO.2
13050GEAR ASSY, CAMSHAFT TIMING
13506CHAIN SUB-ASSY
13512CAMSHAFT, NO.2
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523FBOLT(FOR CAMSHAFT TIMING GEAR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
13540CGASKET(FOR CHAIN TENSIONER)
13559SLIPPER, CHAIN TENSIONER
13566BGUIDE, TIMING CHAIN
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
PNC 13741=TYPE A
PNC 13741=TYPE B
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
PNC 13801=TYPE A
PNC 13801=TYPE B
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
9010908304
main90109-08304
9155180630
main91551-80630
9167180820
main91671-80820
27 parts on this diagram · 2 diagrams in section
