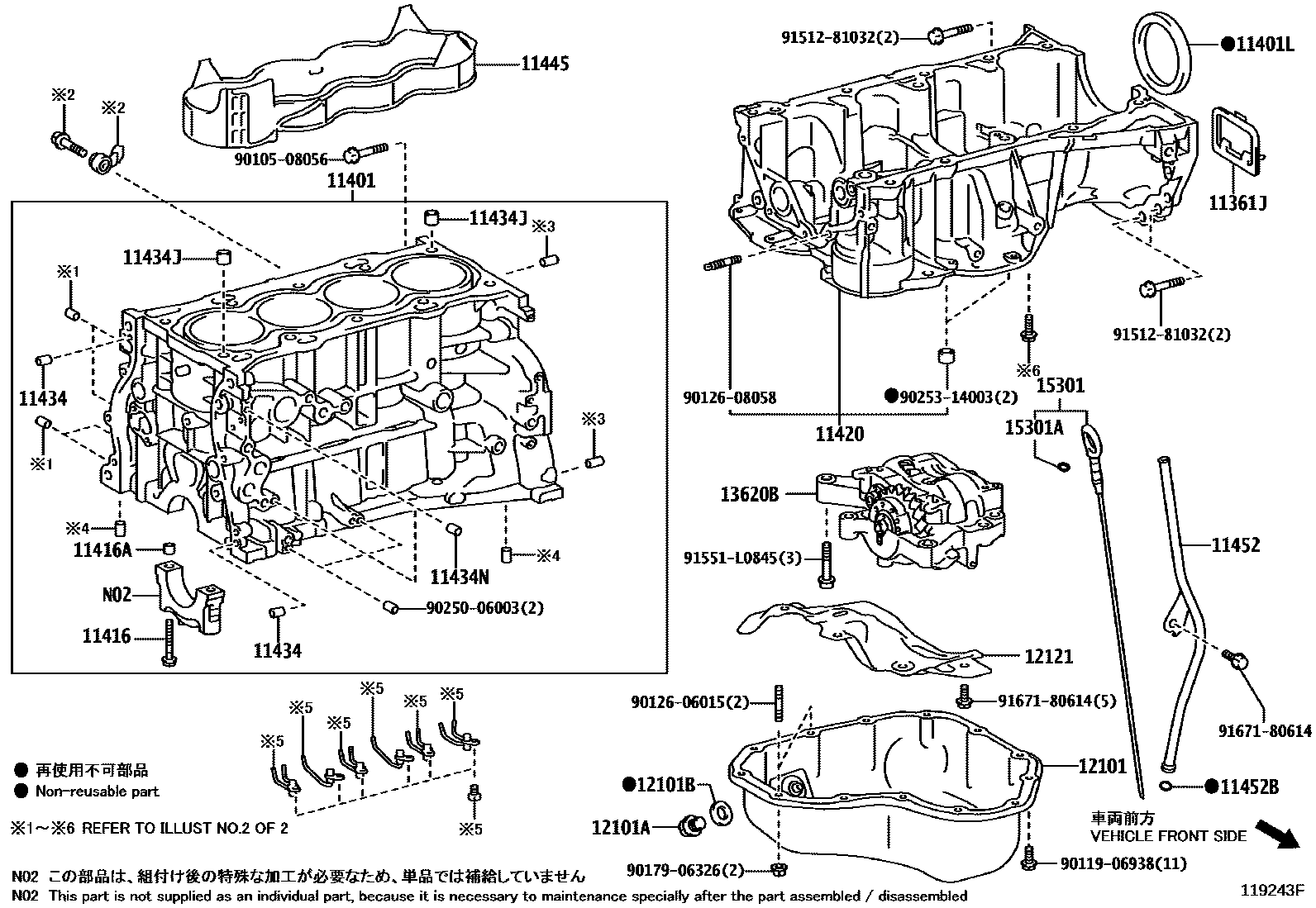

CYLINDER BLOCK

0001 1CYLINDER BLOCK 0002 1FITTING PARTS 0003 1CYLINDER BLOCK 0004 1FITTING PARTS 1/2 0005 1FITTING PARTS 2/2

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-28010i2ARFXE,8ARFTS..AGZ1#,AYZ15201407-201709

11401BLOCK SUB-ASSY, CYLINDER

main11410-39126i2ARFXE..AYZ15201407-201709

main11410-39195i8ARFTS..AGZ1#201410-202110

sub11410-39255

11401LSEAL, ENGINE REAR OIL

main90311-89013i2ARFXE..AYZ15201407-201408

sub90311-89015

main90311-89014i8ARFTS..AGZ1#201410-201709

main90311-89015i2ARFXE..AYZ10201408-201709

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02154i8ARFTS..AGZ1#201410-201709

main90910-02173i2ARFXE..AYZ15201407-201709

main90910-02197i8ARFTS..AGZ1#201709

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017i2ARFXE..AYZ15201407-201709

main90253-14003i8ARFTS..AGZ1#201410-201709

11420CRANKCASE ASSY, STIFFENING

main11420-36020i2ARFXE..AYZ15201407-201709

main11420-36051i8ARFTS..AGZ1#201410-201709

11434PIN, STRAIGHT(FOR TIMING CHAIN COVER)

main90250-06003i2ARFXE,8ARFTS..AGZ1#,AYZ1#201407-201709

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-15001i2ARFXE..AYZ10201407-201709

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003i2ARFXE,8ARFTS..AGZ1#,AYZ15201407-201709

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-36010i2ARFXE..AYZ10201407-201709

main11445-36020i8ARFTS..AGZ1#201410-201709

11452GUIDE, OIL LEVEL GAGE

main11452-36040i8ARFTS..AGZ1#201410-201709

main11452-36050i2ARFXE..AYZ10201407-201709

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96723-19010i8ARFTS..AGZ1#201410-201709

main96741-19010i2ARFXE..AYZ10201407-201709

12101PAN SUB-ASSY, OIL

main12101-36050i2ARFXE..AYZ15201407-201709

main12101-36080i8ARFTS..AGZ1#201410-201709

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2ARFXE..AYZ10201407-201709

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2ARFXE,8ARFTS..AGZ1#,AYZ15201407-201709

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-36030i2ARFXE..AYZ15201407-201709

main12121-36060i8ARFTS..AGZ1#201410-201811

main12121-36061i8ARFTS..AGZ1#201811

13620BBALANCER ASSY, ENGINE

main13620-36020i2ARFXE..AYZ1#201407-201501

main13620-36040i8ARFTS..AGZ1#201410-201705

sub13620-36041

main13620-36041i8ARFTS..AGZ1#201706-201709

main13620-36060i2ARFXE..AYZ10201501-201709

15301GAGE SUB-ASSY, OIL LEVEL

main15301-36031i2ARFXE..AYZ10201407-201912

sub15301-36032

main15301-36032i2ARFXE..AYZ15202001

main15301-36060i8ARFTS..AGZ1#201410-201709

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2ARFXE,8ARFTS..AGZ1#,AYZ15201407-201709

9010508056

main90105-08056

9011906938

main90119-06938

9012606015

main90126-06015

9012608058

main90126-08058

9017906326

main90179-06326

9025006003

main90250-06003

9025314003

main90253-14003

9151281032

main91512-81032

91551L0845

main91551-L0845

9167180614

main91671-80614

29 parts on this diagram · 5 diagrams in section
