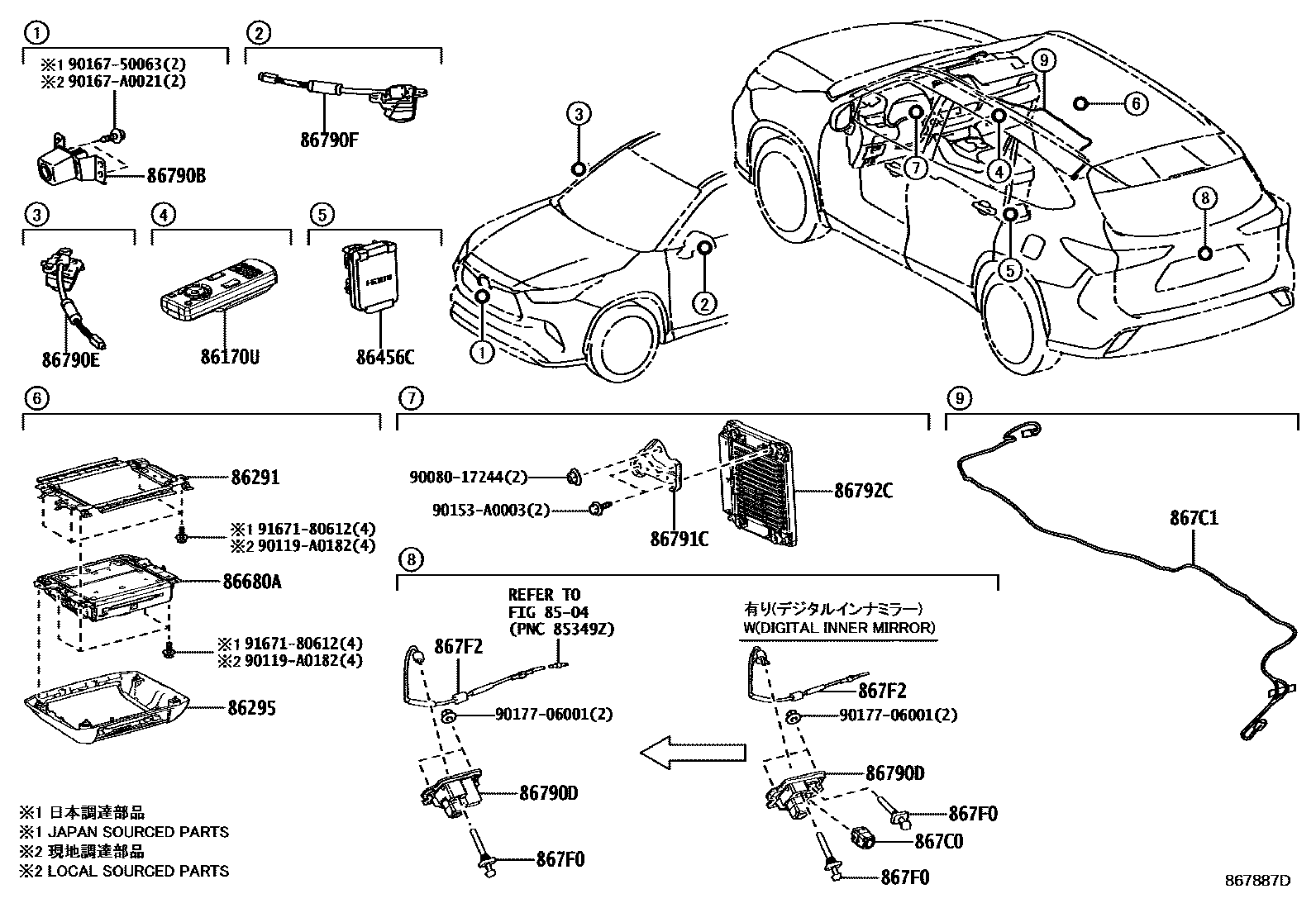

CAMERA & REAR MONITOR DISPLAY

8504

86170USWITCH & VOLUME ASSY, REAR

86291BRACKET, TELEVISION

main86291-0E020

86295BASE, TELEVISION

main86295-0E080

86456CCOVER, MULTI-MEDIA MODULE

86680ADISPLAY ASSY, TELEVISION

86790BCAMERA ASSY, TELEVISION, FR

86790DCAMERA ASSY, TELEVISION, RR

main86790-0E150i201912-202210

main86790-0E540i202210-202311

main86790-0E541i202311-202410

main867B0-0E120i201912-202110

main867B0-0E121i202110-202210

main867B0-0E280i202210-202303

sub867B0-0E281

main867B0-0E281i202304-202310

main867B0-0E300i202311

86790ECAMERA ASSY, TELEVISION, SIDE RH

86790FCAMERA ASSY, TELEVISION, SIDE LH

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

86792CCOMPUTER, PARKING ASSIST

867C0CAMERA ASSY, INNER MIRROR

main867C0-48010

867C1WIRE, MIRROR CAMERA

main867C1-0E010

main867C1-0E030

867F0NOZZLE ASSY, CAMERA CLEANER

main867F0-0E010i202210-202311

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-PANORAMIC VIEW MONITOR

main867F0-0E010i201912-202210

PLATINUM PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-12.3INCH(EMV)DECKLESS JBL11SP

main867F0-0E010i202210-202311

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main867F0-0E010i202311-202410

867F2HOSE, CAMERA CLEANER

main867F2-0E020i201912-202410

9008017244

main90080-17244

90119A0182

main90119-A0182

90153A0003

main90153-A0003

9016750063

main90167-50063

90167A0021

main90167-A0021

9017706001

main90177-06001

9167180612

main91671-80612

23 parts on this diagram · 3 diagrams in section
