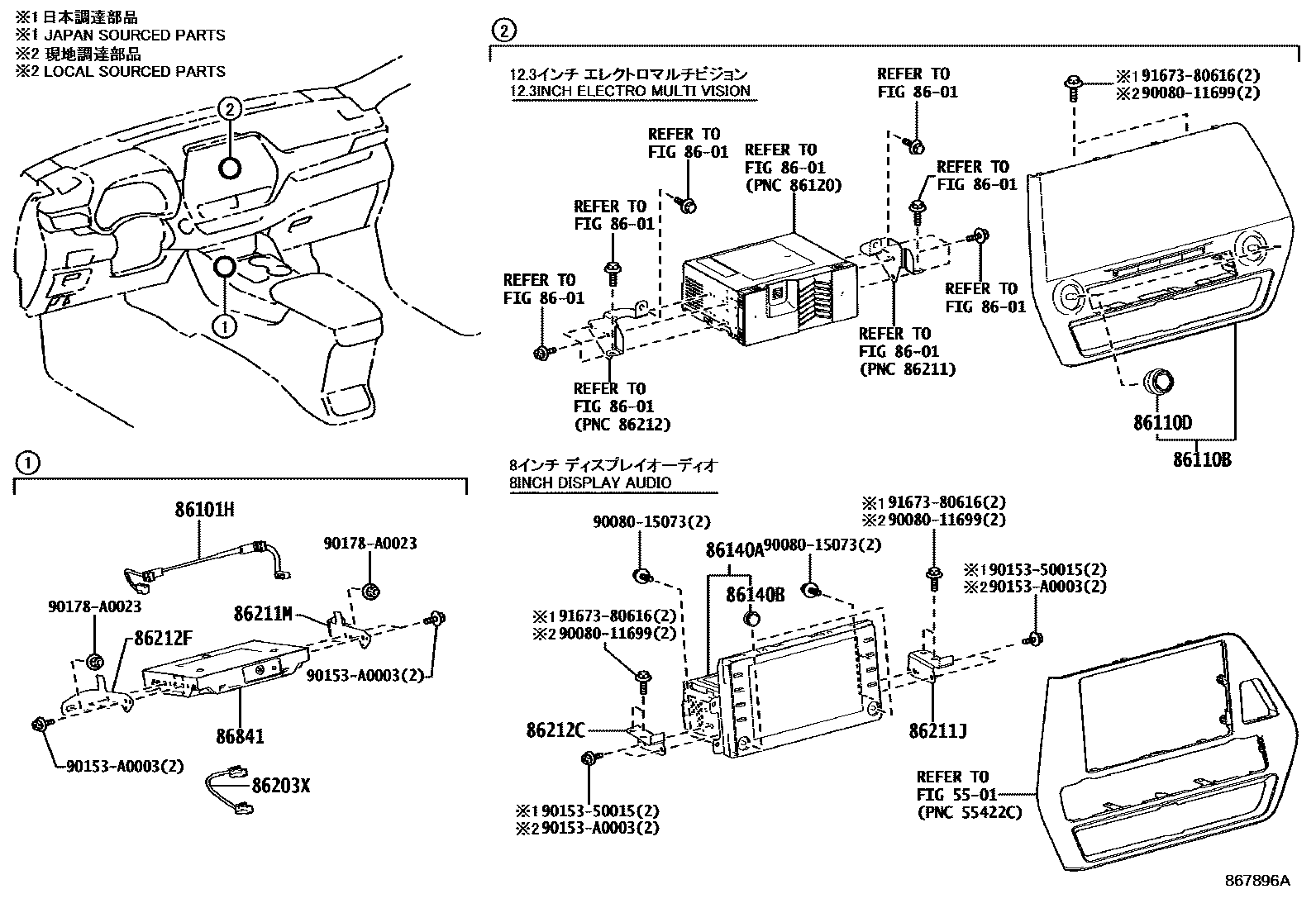

NAVIGATION & FRONT MONITOR DISPLAY
5501
8601
86101HCORD SUB-ASSY, ANTENNA
GUAM,SAIPAN SPEC&AUDIO-8INCH DECKLESS JBL11SP
A.SAMOA SPEC&AUDIO-8INCH DECKLESS JBL11SP
AUDIO-8INCH(AVN) DECKLESS 6SP
86110BMULTI-DISPLAY ASSY
86110DKNOB, MULTI-DISPLAY SWITCH
86140ARECEIVER ASSY, RADIO & DISPLAY
DENSO TEN
DENSO TEN
PANASONIC
PANASONIC,AUDIO-12.3INCH T-PREMIUM JBL11SPEAKER
PANASONIC
DENSO TEN,AUDIO-8INCH(AVN)DECKLESS JBL11SP
DENSO TEN
PANASONIC
PANASONIC,AUDIO-12.3INCH T-PREMIUM JBL11SPEAKER
PANASONIC
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
AUDIO-12.3INCH T-PREMIUM 6SPEAKER
AUDIO-12.3INCH T-PREMIUM JBL11SPEAKER
CANADA SPEC&AUDIO-12.3INCH T-PREMIUM 6SPEAKER
CANADA SPEC&AUDIO-12.3INCH T-PREMIUM JBL11SPEAKER
86203XWIRING SUB-ASSY, RADIO
MEXICO SPEC&SATELLITE RADIO-WITHOUT
GUAM,SAIPAN SPEC&AUDIO-8INCH DECKLESS JBL11SP&SATELLITE RADIO-WITHOUT
A.SAMOA SPEC&AUDIO-8INCH DECKLESS JBL11SP&SATELLITE RADIO-WITHOUT
AUDIO-8INCH(AVN) DECKLESS 6SP
86211JBRACKET, RADIO RECEIVER, NO.1
86211MBRACKET, RADIO RECEIVER, NO.3
A.SAMOA SPEC&AUDIO-8INCH DECKLESS JBL11SP
AUDIO-8INCH(AVN) DECKLESS 6SP
GUAM,SAIPAN SPEC&AUDIO-8INCH DECKLESS JBL11SP
86212CBRACKET, RADIO RECEIVER, NO.2
86212FBRACKET, RADIO RECEIVER, NO.4
AUDIO-8INCH(AVN) DECKLESS 6SP
GUAM,SAIPAN SPEC&AUDIO-8INCH DECKLESS JBL11SP
A.SAMOA SPEC&AUDIO-8INCH DECKLESS JBL11SP
86841COMPUTER, NAVIGATION
GUAM,SAIPAN SPEC&AUDIO-8INCH DECKLESS JBL11SP
A.SAMOA SPEC&AUDIO-8INCH DECKLESS JBL11SP
AUDIO-8INCH(AVN) DECKLESS 6SP
AUDIO-8INCH(AVN)DECKLESS JBL11SP
GUAM,SAIPAN SPEC&AUDIO-8INCH DECKLESS JBL11SP
A.SAMOA SPEC&AUDIO-8INCH DECKLESS JBL11SP
AUDIO-8INCH(AVN) DECKLESS 6SP
GUAM,SAIPAN SPEC&AUDIO-8INCH DECKLESS JBL11SP
sub86840-0E084
GUAM,SAIPAN SPEC&AUDIO-8INCH DECKLESS JBL11SP
sub86840-0E085
GUAM,SAIPAN SPEC&AUDIO-8INCH DECKLESS JBL11SP
sub86840-0E086
9008011699
main90080-11699
9008015073
main90080-15073
9015350015
main90153-50015
90153A0003
main90153-A0003
90178A0023
main90178-A0023
9167380616
main91673-80616
19 parts on this diagram · 4 diagrams in section
