RADIO RECEIVER & AMPLIFIER & CONDENSER

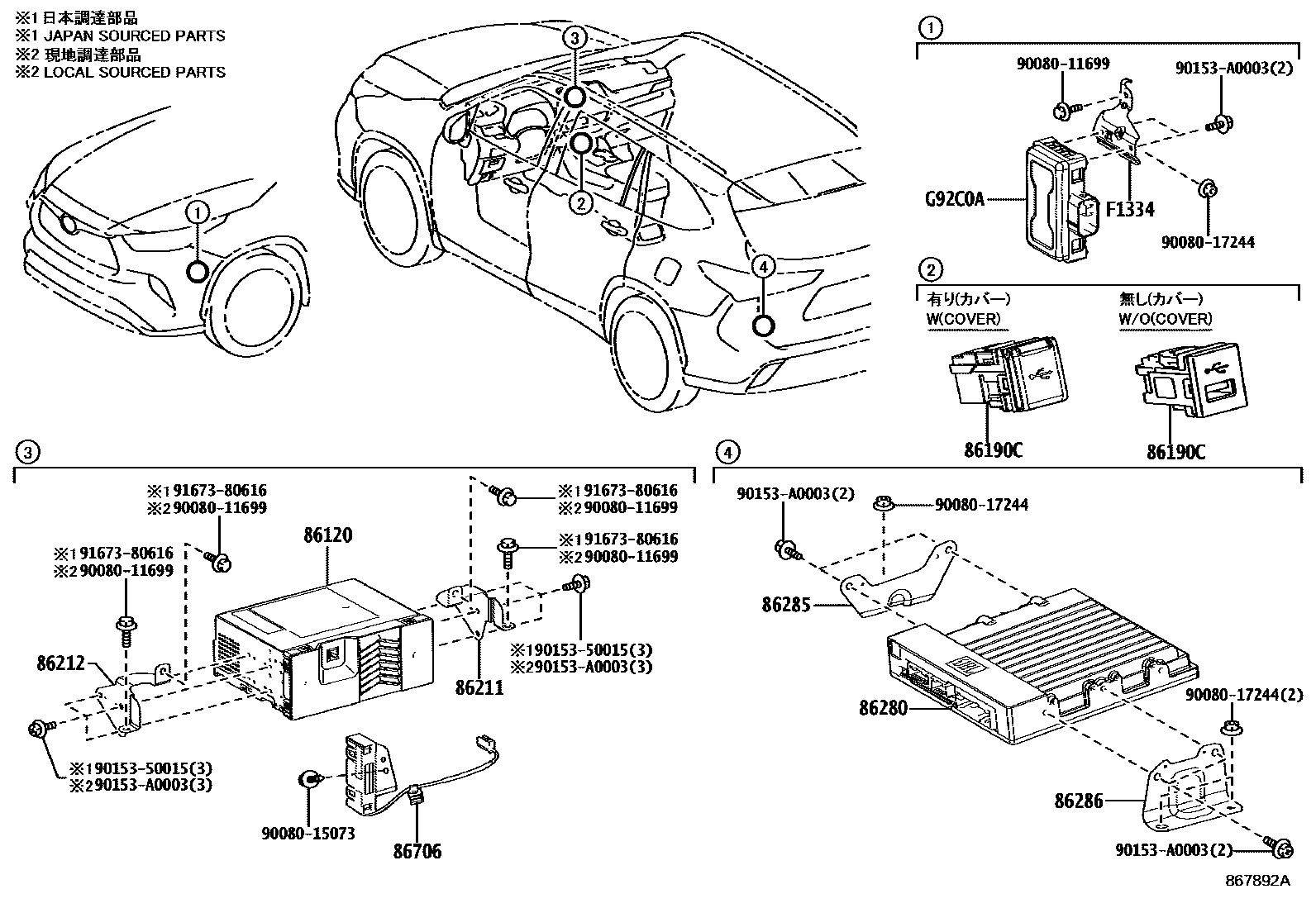

Parts diagram
86120RECEIVER ASSY, RADIO
main86120-0E420
main86120-0E430
86190CADAPTER ASSY, STEREO JACK, NO.1
main86190-34010i202210-202410
main86190-35020i201912-202109
main86190-52070i202110-202210
86211BRACKET, RADIO, NO.1
main86211-0E140
86212BRACKET, RADIO, NO.2
main86212-0E140
86280AMPLIFIER ASSY, STEREO COMPONENT
main86280-0E160i201912-202210
main86280-0E300i202411
AUDIO-12.3INCH T-PREMIUM JBL11SPEAKER
main86280-0E340i202210-202312
AUDIO-12.3INCH T-PREMIUM JBL11SPEAKER
sub86280-0E341
main86280-0E341i202312-202411
AUDIO-12.3INCH T-PREMIUM JBL11SPEAKER
86285BRACKET, AMPLIFIER, NO.1
main86285-0E040i201912-202210
main86285-0E040i202210-202311
AUDIO-12.3INCH T-PREMIUM JBL11SPEAKER
86286BRACKET, AMPLIFIER, NO.2
main86286-0E060i201912-202210
main86286-0E060i202210-202311
AUDIO-12.3INCH T-PREMIUM JBL11SPEAKER
86706BASE SUB-ASSY, TRANSCEIVER ANTENNA
main86706-0E010
F1334BRACKET, CONVERTER CONTROL, NO.1
mainF13340E020i202210-202311
GUAM,SAIPAN SPEC
mainF13340E020i201912-202210
MEXICO SPEC
mainF13340E020i201912-202210
GUAM,SAIPAN SPEC&AUDIO-8INCH DECKLESS JBL11SP
mainF13340E020i201912-202210
A.SAMOA SPEC&AUDIO-8INCH DECKLESS JBL11SP
mainF13340E020i202210-202311
AUDIO-12.3INCH T-PREMIUM JBL11SPEAKER
G92C0ACONVERTER ASSY, ECO-RUN VEHICLE
mainG92C030020i201912-202210
MEXICO SPEC
mainG92C030020i201912-202210
GUAM,SAIPAN SPEC&AUDIO-8INCH DECKLESS JBL11SP
mainG92C030020i201912-202210
A.SAMOA SPEC&AUDIO-8INCH DECKLESS JBL11SP
mainG92C030020i202210-202311
GUAM,SAIPAN SPEC
mainG92C030020i202210-202311
AUDIO-12.3INCH T-PREMIUM JBL11SPEAKER
9008011699
main90080-11699
9008015073
main90080-15073
9008017244
main90080-17244
9015350015
main90153-50015
90153A0003
main90153-A0003
9167380616
main91673-80616

16 parts on this diagram · 2 diagrams in section
