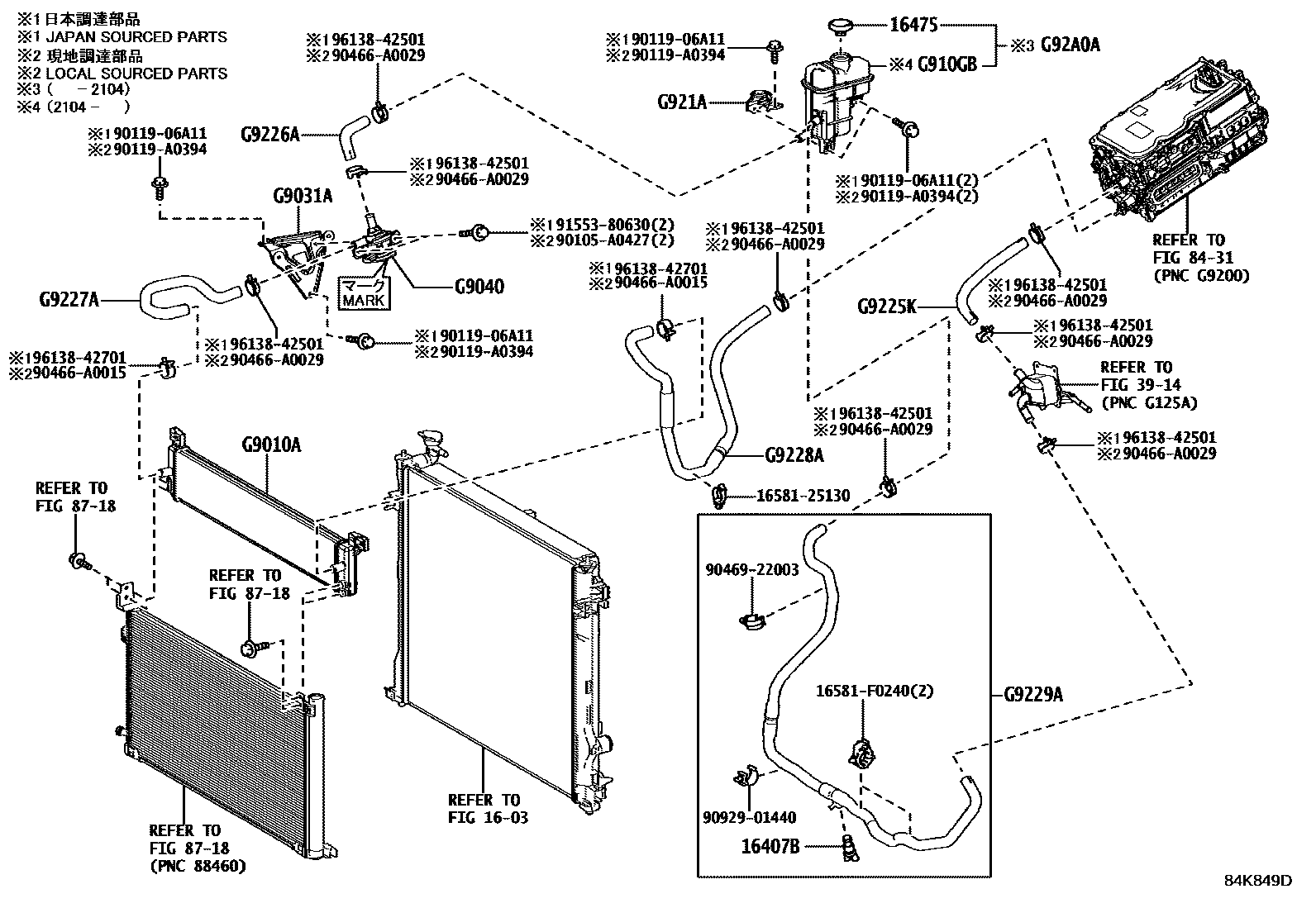

INVERTER COOLING

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iA25AFXS..AXUH7#202002-202311

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AXUH7#202002-202311

3914

8431

8718

G9010ARADIATOR ASSY

mainG901048100iAXUH7#202210-202311

mainG901048100iAXUH7#202012-202210

NO PAINT

mainG901048110iAXUH7#202002-202012

BLACK PAINT

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG91410E020iAXUH7#202002-202311

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904004020iAXUH7#202404

(L)

mainG90400E050iAXUH7#202311-202404

(L)

subG9040-04020

mainG904028020iAXUH7#202210-202305

subG9040-48060

mainG904042010iAXUH7#202002-202210

mainG904048060iAXUH7#202305-202311

mainG904048060iAXUH7#202311-202411

(J)

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G0R010iAXUH7#202104-202311

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H20R010iAXUH7#202002-202311

G9225KHOSE, INVERTER COOLING, NO.1

mainG92250E010iAXUH7#202002-202311

G9226AHOSE, INVERTER COOLING, NO.2

mainG92260R020iAXUH7#202002-202311

G9227AHOSE, INVERTER COOLING, NO.3

mainG92270E010iAXUH7#202002-202311

G9228AHOSE, INVERTER COOLING, NO.4

mainG92280E010iAXUH7#202002-202311

G9229AHOSE, INVERTER COOLING, NO.5

mainG92290E010iAXUH7#202002-202305

subG9229-0E011

mainG92290E011iAXUH7#202306-202311

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H00R020iAXUH7#202002-202104

1658125130CLAMP, HOSE(FOR WATER HOSE)

main16581-25130

16581F0240CLAMP, HOSE(FOR WATER HOSE)

main16581-F0240

90105A0427

main90105-A0427

9011906A11

main90119-06A11

90119A0394

main90119-A0394

90466A0015

main90466-A0015

90466A0029

main90466-A0029

9046922003

main90469-22003

9092901440

main90929-01440

9155380630

main91553-80630

9613842501

main96138-42501

9613842701

main96138-42701

29 parts on this diagram · 1 diagram in section
