WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE ROOM 1/2 0006 1ENGINE ROOM 2/2 0007 1ENGINE 1/2 0008 1ENGINE 2/2 0009 1ENGINE 1/2 0010 1ENGINE 2/2 0011 1ENGINE 0012 1INSTRUMENT PANEL 0013 1DOOR 0014 1FLOOR & ROOF 0015 1FLOOR & ROOF 0016 1HIGH VOLTAGE CABLE 0017 1FRONT SEAT 0018 1REAR SEAT 0019 1CLAMP & BRACKET 1/2 0020 1CLAMP & BRACKET 2/2 0021 1CLAMP & BRACKET 0022 1CABLE BOND 0023 1CONNECTOR 1/2 0024 1CONNECTOR 2/2

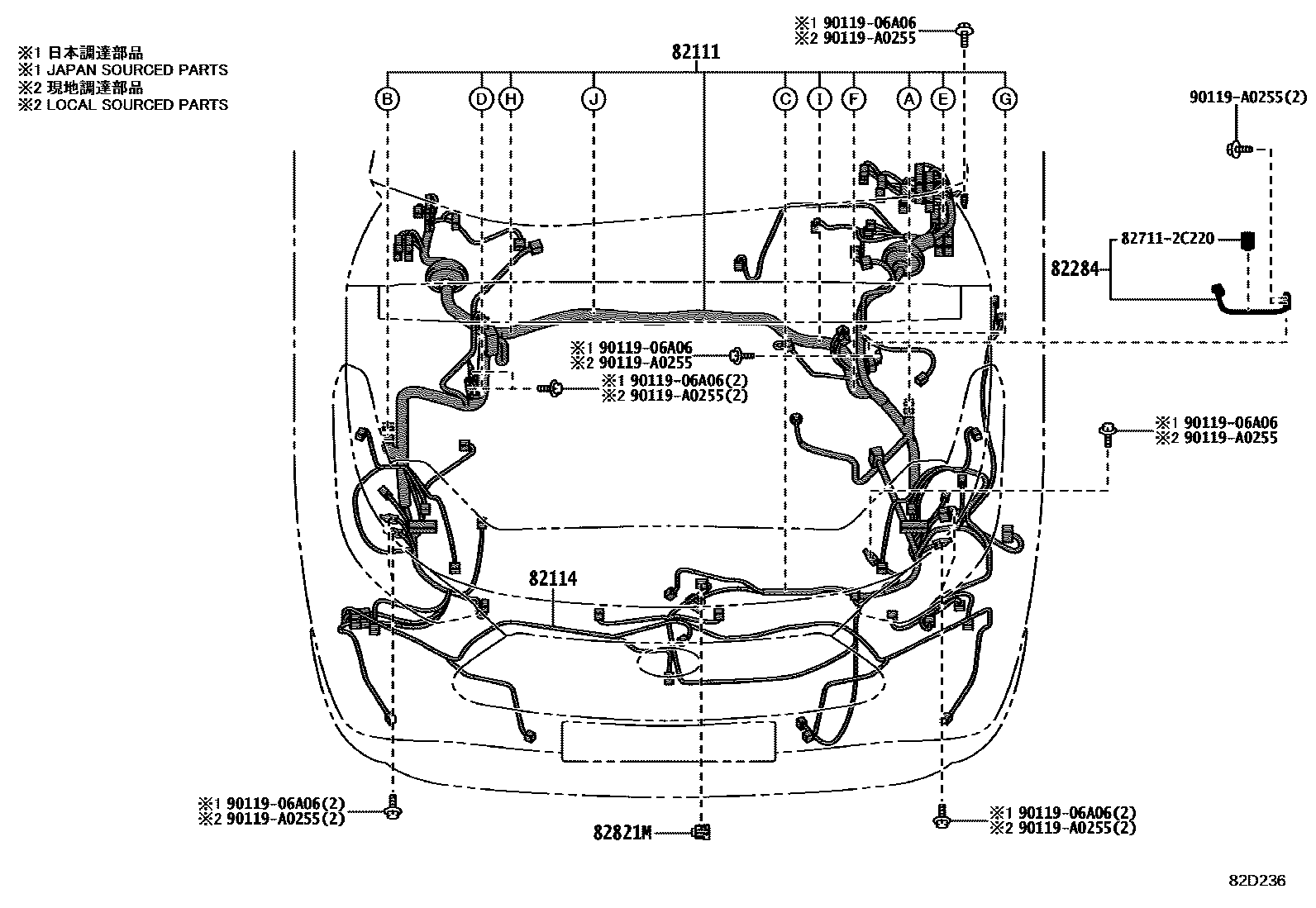

82111WIRE, ENGINE ROOM MAIN

main82111-0EU10iGSU7#..M,N201912-202009

main82111-0EV10iAXUH70..M,N202002-202009

main82111-0EV11iAXUH70..M,N202009-202110

main82111-0EV12iAXUH70..M,N202110-202210

main82111-0EV20iAXUH70..G202002-202110

main82111-0EV21iAXUH70..G202110-202210

main82111-0EV90iAXUH78..M,N202002-202009

main82111-0EW00iAXUH78..G202002-202110

main82111-0EW01iAXUH78..G202110-202210

main82111-0EW40iGSU7#..G202012-202110

main82111-0EW41iGSU7#..G202110-202210

main82111-0EZ10iGSU7#..G201912-202012

main82111-0EZ30iGSU7#..S202009-202110

main82111-0EZ31iGSU7#..S202110-202210

main82115-0E250iGSU7#..M,N202009-202110

main82115-0E251iGSU7#..M,N202110-202210

main82115-0E270iAXUH78..M,N202009-202110

main82115-0E271iAXUH78..M,N202110-202210

main82115-0E800iTXUA7#..G202210-202311

main82115-0E820iAXUH70..G202210-202311

main82115-0E860iAXUH78..G202210-202311

main82115-0ED20iTXUA75..M,N202210-202311

main82115-0ED30iTXUA7#..S202210-202311

main82115-0EE10iTXUA70..M,N202210-202311

main82115-0EE70iAXUH70..M,N202210-202311

main82115-0EE80iAXUH78..M,N202210-202311

main82115-0EQ10iAXUH78..G202311

main82115-0EQ60iTXUA7#..M,N202311

main82115-0EQ80iTXUA70..S202311-202410

main82115-0ER40iTXUA7#..G202311

main82115-0ES00iAXUH78..M,N202311

main82115-0EU50iAXUH70..G202311

main82115-0EV00iAXUH70..M,N202311

82114WIRE, ENGINE ROOM, NO.4

main82114-0E090iAXUH7#,GSU7#..G201912-202210

main82114-0E091iAXUH7#,TXUA7#..G202210-202311

main82114-0E220iAXUH7#,GSU7#..M,N201912-202210

main82114-0E221iAXUH7#,TXUA7#..M,N202210-202311

main82114-0E310iTXUA7#..S202009-202403

main82114-0E311iTXUA70..S202404-202410

main82114-0E790iAXUH7#,TXUA7#..G202311

82284WIRE, EARTH

main82284-0E030iGSU7#201912-202410

82821MCOVER, CONNECTOR

827112C220WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C220

9011906A06

main90119-06A06

90119A0255

main90119-A0255

7 parts on this diagram · 24 diagrams in section
