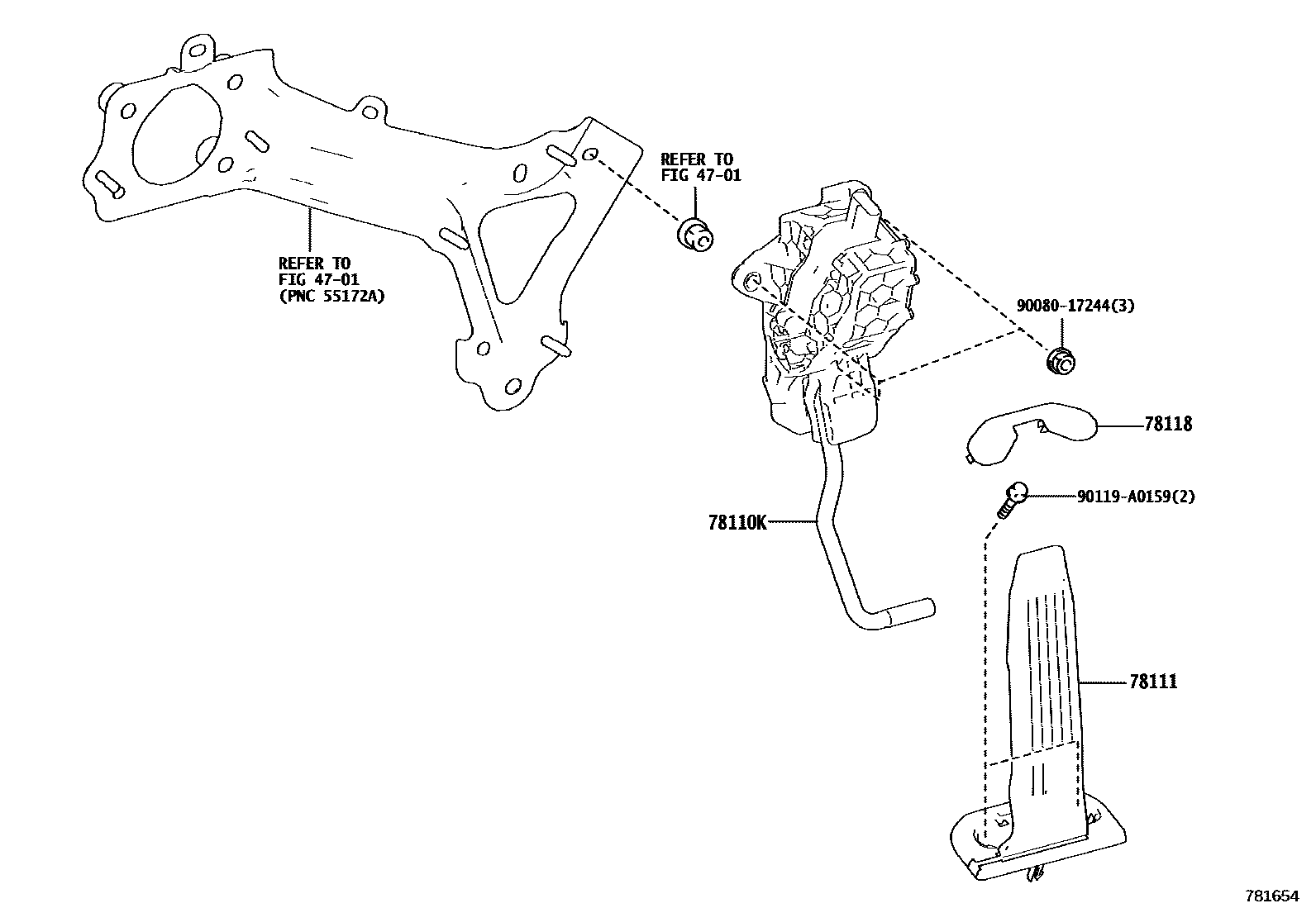

ACCELERATOR LINK

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-06060iAXUH7#,GSU7#201912-202011

sub78110-06061

main78110-06061iAXUH7#,GSU7#202012-202410

78111PEDAL, ACCELERATOR

main78101-06010iAXUH7#,GSU7#201912-202201

sub78101-06011

main78101-06011iAXUH7#,GSU7#202202-202410

78118PAD, ACCELERATOR PEDAL

main78117-06010iAXUH7#,GSU7#201912-202410

9008017244

main90080-17244

90119A0159

main90119-A0159

6 parts on this diagram · 1 diagram in section
