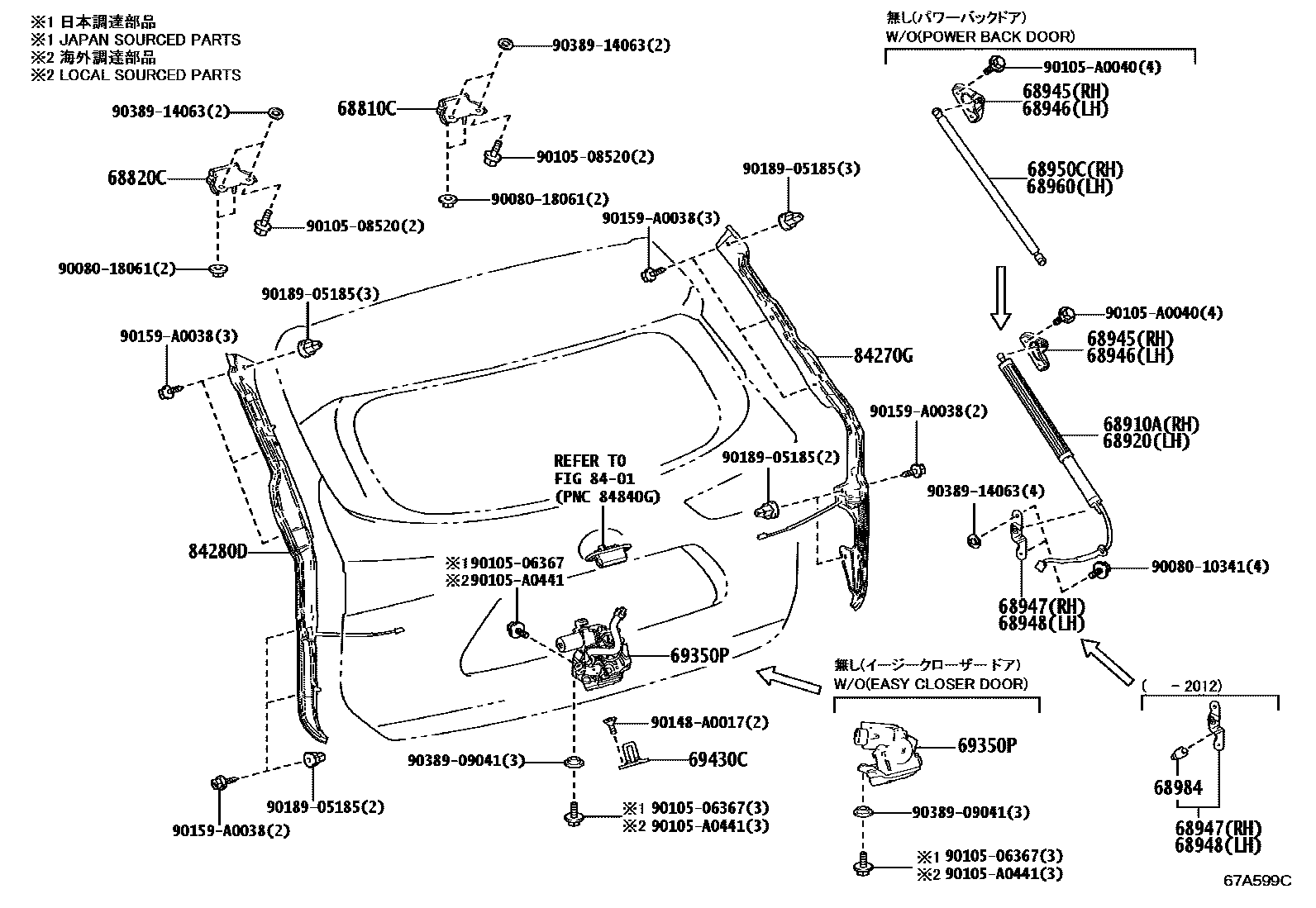

BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
PAD T=1.5
68820CHINGE ASSY, BACK DOOR, LH
PAD T=1.5
68910AUNIT ASSY SET, POWER BACK DOOR, RH
68920UNIT ASSY SET, POWER BACK DOOR, LH
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
CANADA SPEC
MEXICO SPEC
L PACKAGE
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
CANADA SPEC
MEXICO SPEC
L PACKAGE
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
MEXICO SPEC
L PACKAGE
CANADA SPEC
68960STAY ASSY, BACK DOOR, LH
MEXICO SPEC
L PACKAGE
CANADA SPEC
68984STOPPER, BACK DOOR STAY
69430CSTRIKER ASSY, BACK DOOR LOCK
8401
84270GSENSOR ASSY, POWER BACK DOOR, RH
L PACKAGE
CANADA SPEC
MEXICO SPEC
84280DSENSOR ASSY, POWER BACK DOOR, LH
L PACKAGE
CANADA SPEC
MEXICO SPEC
9008010341
main90080-10341
9008018061
main90080-18061
9010506367
main90105-06367
9010508520
main90105-08520
90105A0040
main90105-A0040
90105A0441
main90105-A0441
90148A0017
main90148-A0017
90159A0038
main90159-A0038
9018905185
main90189-05185
9038909041
main90389-09041
9038914063
main90389-14063
27 parts on this diagram · 1 diagram in section
