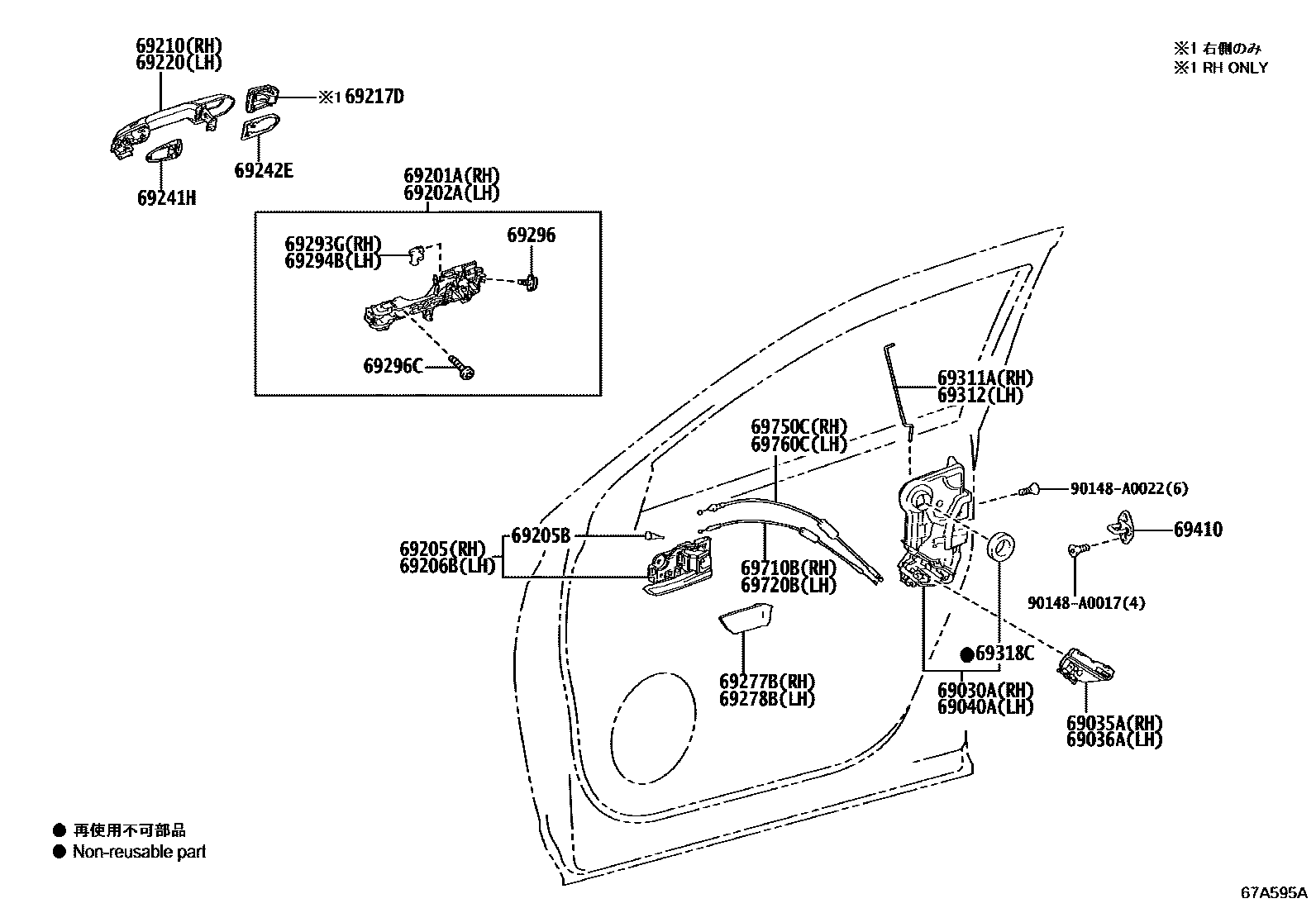

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-02380iAXUH7#,TXUA7#201912-202410

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02030iAXUH7#,GSU7#201912-202410

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02030iTXUA70..S201912-202410

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-02440iTXUA70..S201912-202410

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-0R040iAXUH7#,GSU7#201912-202410

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-0R040iAXUH7#,GSU7#201912-202410

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02300-C0iAXUH7#,GSU7#..N201912-202311

BLACK,TRIM1#,2#

main69205-06120-C0iTXUA75..S201912-202311

BLACK,TRIM1#,2#,4#

main69205-06120-C0iGSU7#..S202009-202410

BLACK,TRIM2#,3#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90080-54005iAXUH7#,GSU7#201912-202410

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02350-C0iAXUH7#,TXUA7#..N201912-202311

BLACK,TRIM1#,2#

main69206-06160-C0iAXUH7#,GSU7#..G,M201912-202311

BLACK,TRIM1#,2#,4#

main69206-06160-C0iTXUA7#..S202009-202410

BLACK,TRIM2#,3#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0E140-A0iTXUA75;AXUH7#,TXUA70..G,M,N202311-202410

PLATINUM WHITE PEARL MC.,089

main69210-0E140-B0iTXUA75;AXUH7#,TXUA70..G,M,N202311-202410

GRAY ME.,1G3

main69210-0E140-B1iTXUA75..S;AXUH7#..M,N202411

CEMENT GRAY ME.,1H5

main69210-0E140-B2iTXUA70..S202311-202410

SILVER ME.,1J9

main69210-0E140-B3iTXUA70..S202311-202411

PRECIOUS GALENA,1K5

main69210-0E140-B4iAXUH7#,TXUA7#..G,M202411

PRECIOUS METAL,1L5

main69210-0E140-C0iTXUA75;AXUH7#..G;TXUA70..G,M,N202311

ATTITUDE BLACK MC.,089 ,1H5 ,218 ,3T3

main69210-0E140-C0iTXUA70..S202311-202410

ATTITUDE BLACK MC.,218

main69210-0E140-D0iTXUA75;AXUH7#,TXUA70..G,M,N202311-202410

RED MC.,3T3

main69210-0E140-G0iTXUA70..S202311-202410

GREEN M.M.,6X5

main69210-0E140-J0iTXUA75;AXUH7#,TXUA70..G,M,N202311-202410

DK. BLUE MC.,8X8

main69210-0R070-A1iAXUH7#,GSU7#201912-202110

WHITE PEARL CS.,070

main69210-0R070-A2iAXUH7#,GSU7#202110-202311

PLATINUM WHITE PEARL MC.,089

main69210-0R070-B1iAXUH7#,TXUA7#201912-202311

GRAY ME.,1G3

main69210-0R070-B2iAXUH7#,GSU7#201912-202311

SILVER ME.,1J9

main69210-0R070-B3iAXUH7#,TXUA7#201912-202311

PRECIOUS GALENA,1K5

main69210-0R070-B4iAXUH7#..M202110-202311

CEMENT GRAY ME.,1H5

main69210-0R070-C0iAXUH7#,GSU7#201912-202311

ATTITUDE BLACK MC.,218

main69210-0R070-D0iAXUH7#,GSU7#201912-202311

RED MC.,3T3

main69210-0R070-E0iAXUH7#,GSU7#201912-202210

BLACKISH BROWN MC.,4X9

main69210-0R070-G1iAXUH7#,TXUA7#202210-202311

GREEN M.M.,6X5

main69210-0R070-J1iAXUH7#,TXUA7#201912-202311

DK. BLUE MC.,8X8

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-0R160iAXUH7#,GSU7#201912-202410

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-0E160-A0iTXUA75;AXUH7#,TXUA70..G,M,N202311-202410

PLATINUM WHITE PEARL MC.,089

main69210-0E160-B0iTXUA70..S202311-202410

GRAY ME.,1G3

main69210-0E160-B1iTXUA75..S;AXUH7#..M,N202411

CEMENT GRAY ME.,1H5

main69210-0E160-B2iTXUA70..S202311-202410

SILVER ME.,1J9

main69210-0E160-B3iTXUA75;AXUH7#,TXUA70..G,M,N202311-202411

PRECIOUS GALENA,1K5

main69210-0E160-B4iAXUH7#,TXUA7#..G,M202411

PRECIOUS METAL,1L5

main69210-0E160-C0iAXUH7#..M,N202311-202410

ATTITUDE BLACK MC.,218

main69210-0E160-C0iAXUH7#..M,N202311

ATTITUDE BLACK MC.,089 ,1H5 ,218 ,3T3

main69210-0E160-D0iTXUA75;AXUH7#,TXUA70..G,M,N202311-202410

RED MC.,3T3

main69210-0E160-G0iTXUA75;AXUH7#,TXUA70..G,M,N202311-202410

GREEN M.M.,6X5

main69210-0E160-J0iTXUA70..S202311-202410

DK. BLUE MC.,8X8

main69210-0R080-A1iAXUH7#,GSU7#201912-202110

WHITE PEARL CS.,070

main69210-0R080-A2iAXUH7#,TXUA7#202110-202311

PLATINUM WHITE PEARL MC.,089

main69210-0R080-B1iAXUH7#,GSU7#201912-202311

GRAY ME.,1G3

main69210-0R080-B2iAXUH7#,GSU7#201912-202311

SILVER ME.,1J9

main69210-0R080-B3iAXUH7#,TXUA7#201912-202311

PRECIOUS GALENA,1K5

main69210-0R080-B4iAXUH7#..M202110-202311

CEMENT GRAY ME.,1H5

main69210-0R080-C0iAXUH7#,TXUA7#201912-202311

ATTITUDE BLACK MC.,218

main69210-0R080-D0iAXUH7#,TXUA7#201912-202311

RED MC.,3T3

main69210-0R080-E0iAXUH7#,GSU7#201912-202210

BLACKISH BROWN MC.,4X9

main69210-0R080-G1iAXUH7#,TXUA7#202210-202311

GREEN M.M.,6X5

main69210-0R080-J1iAXUH7#,TXUA7#201912-202311

DK. BLUE MC.,8X8

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-0R030iAXUH7#,GSU7#201912-202410

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-0R030iAXUH7#,GSU7#201912-202410

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-0E050iAXUH7#,GSU7#201912-202410

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-0E050iAXUH7#,GSU7#201912-202410

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-33030iAXUH7#,GSU7#201912-202410

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-33040iAXUH7#,GSU7#201912-202410

69296SCREW, DOOR INSIDE HANDLE

main90084-14006iAXUH7#,GSU7#201912-202410

69296CSCREW, DOOR INSIDE HANDLE

main69296-0T010iAXUH7#,GSU7#201912-202210

main90148-50006iAXUH7#,TXUA7#202210-202410

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0E080iAXUH7#,GSU7#201912-202410

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0E070iAXUH7#,GSU7#201912-202410

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-AA010iAXUH7#,GSU7#201912-202410

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-02030iAXUH7#,GSU7#201912-202410

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-0E090iAXUH7#,GSU7#201912-202410

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-0E090iAXUH7#,GSU7#201912-202410

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-0E090iAXUH7#,GSU7#201912-202410

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-0E090iAXUH7#,GSU7#201912-202410

90148A0017

main90148-A0017

90148A0022

main90148-A0022

30 parts on this diagram · 1 diagram in section
