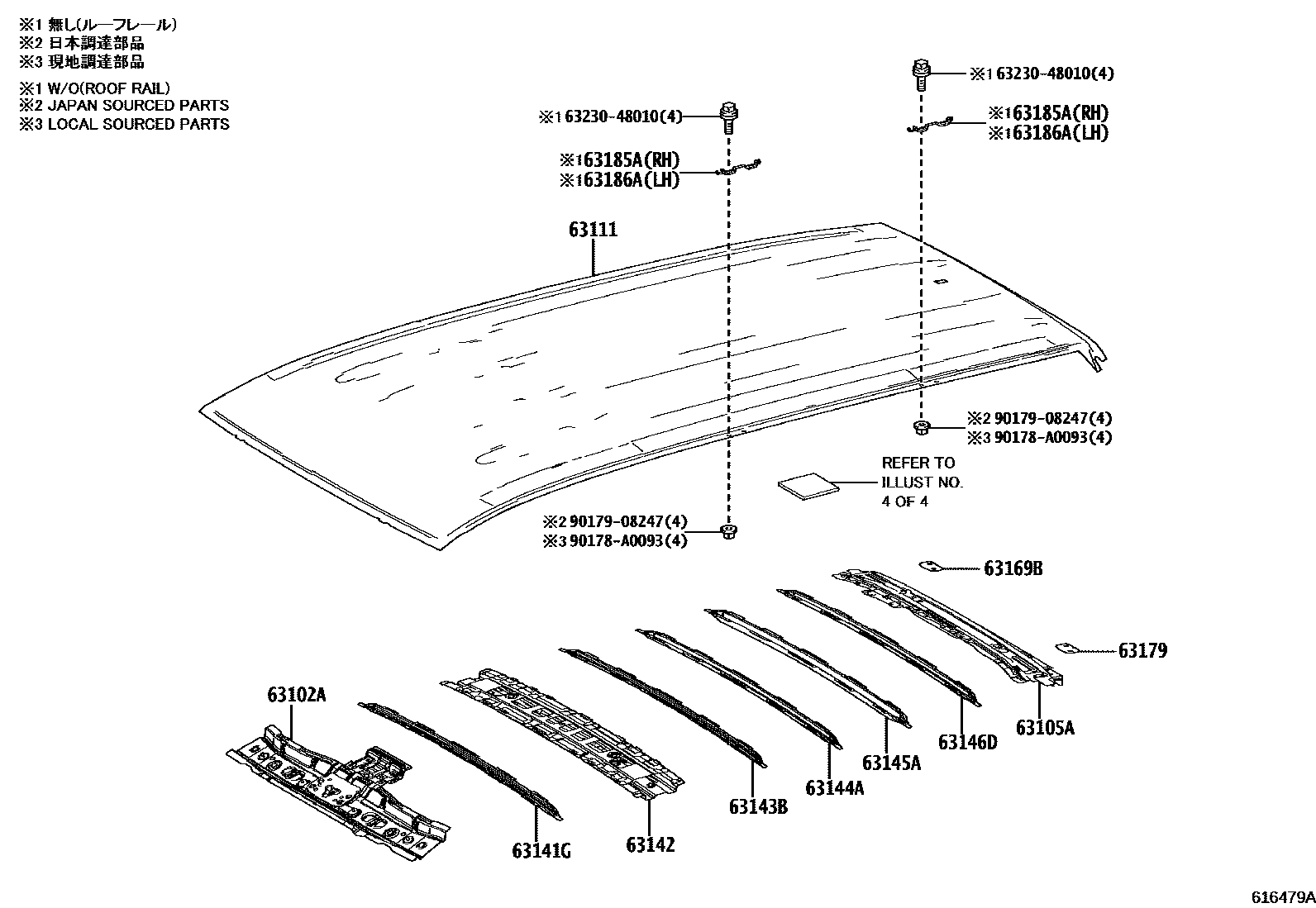

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL ROOF) 0002 1ROOF PANEL(MOON ROOF) 0003 1ROOF PANEL(PANORAMA ROOF) 0004 1REMOVABLE ROOF HOUSING(MOON R0005 1REMOVABLE ROOF HOUSING(PANORA0006 1ROOF RAIL 0007 1HIGH DECREMENT MASTIC SEAL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0E912iTXUA70..S201912-202410

main63102-0E913iAXUH7#,TXUA7#..N201912-202311

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0E080iTXUA70..S201912-202410

63111PANEL, ROOF

main63111-0E340iAXUH7#,TXUA7#..N201912-202311

main63111-0E380iTXUA75..G,M,S;AXUH7#,TXUA70..G,M201912-202410

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63178-0E020iAXUH7#,GSU7#..N201912-202311

63142REINFORCEMENT, ROOF PANEL, NO.2

main63103-0E090iAXUH7#,GSU7#..N201912-202311

main63142-0E100iAXUH7#,TXUA7#..G,M,S201912-202410

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0E100iTXUA70..S201912-202410

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63123-0E080iAXUH7#,GSU7#201912-202410

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63177-0E030iAXUH7#,GSU7#201912-202410

63146DREINFORCEMENT, ROOF PANEL, NO.6

main63144-0E090iAXUH7#,GSU7#201912-202410

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-0E060iAXUH7#,GSU7#201912-202410

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63169-0E060iAXUH7#,GSU7#201912-202410

63185ABRACKET, ROOF RACK, FRONT RH

main63185-48010iAXUH7#,GSU7#..N201912-202210

ROOF RAIL-WITHOUT

main63185-48010iAXUH7#,TXUA7#..N202210-202311

63186ABRACKET, ROOF RACK, FRONT LH

main63185-48010iAXUH7#,GSU7#..N201912-202210

ROOF RAIL-WITHOUT

main63185-48010iAXUH7#,TXUA7#..N202210-202311

6323048010MOULDING ASSY, ROOF WINDOW, SIDE

main63230-48010

90178A0093

main90178-A0093

9017908247

main90179-08247

16 parts on this diagram · 7 diagrams in section
