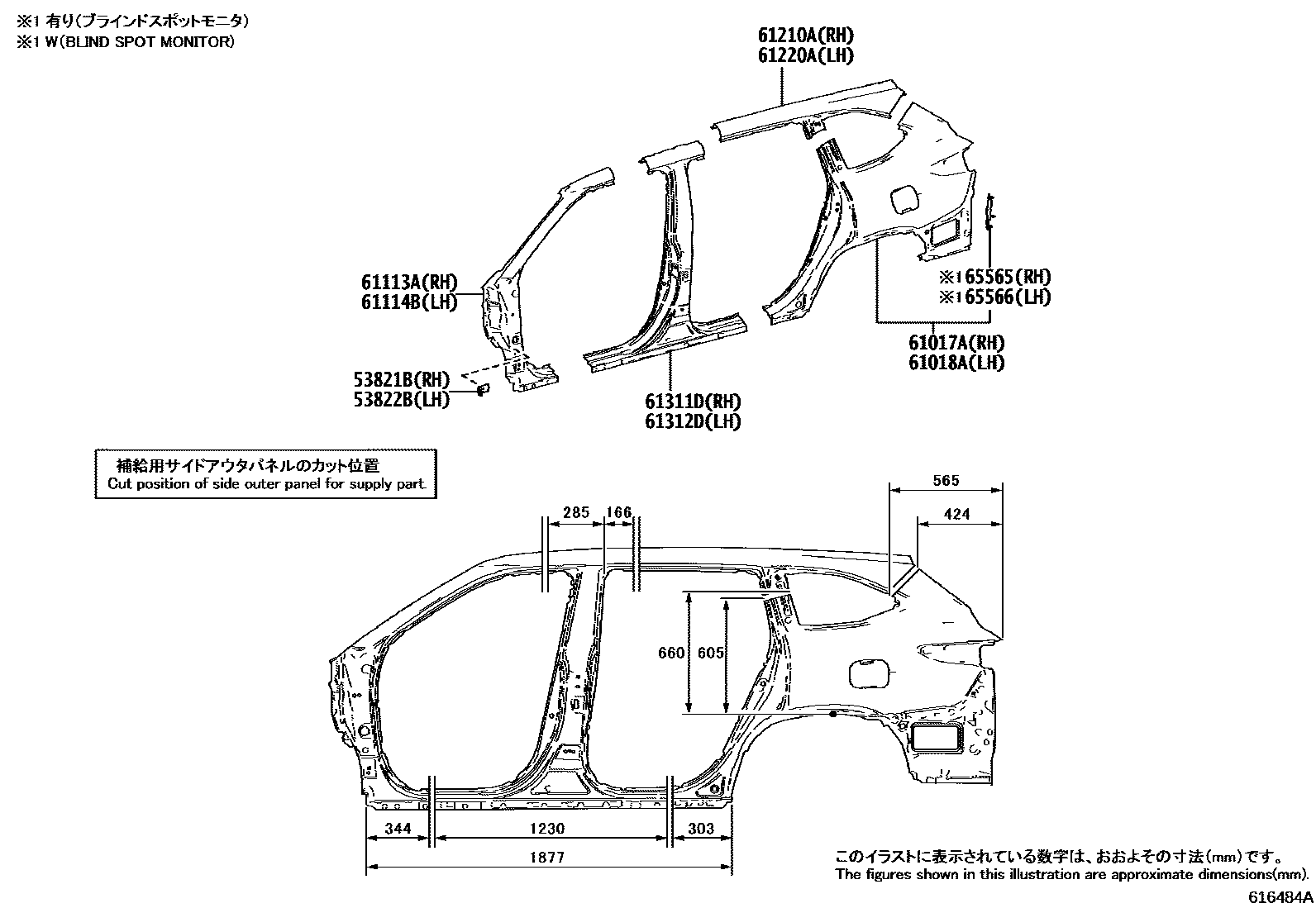

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-0E050iGSU70..N201912-202311

MEXICO SPEC

main53821-0E050iGSU70..N201912-202311

L PACKAGE

main53821-0E050iTXUA70..S202311-202410

53822BBRACKET, FRONT FENDER, REAR LH

main53821-0E050iAXUH7#,GSU7#201912-202410

61017AMEMBER SUB-ASSY, SIDE, REAR RH

main61017-0E020iAXUH7#,GSU7#¥43,600201912-202410

61018AMEMBER SUB-ASSY, SIDE, REAR LH

main61018-0E020iAXUH7#,GSU7#201912-202410

61113APANEL, SIDE, OUTER NO.2 RH

main61113-0E010iAXUH7#,GSU7#201912-202410

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-0E010iAXUH7#,GSU7#201912-202410

61210ARAIL ASSY, ROOF SIDE, RH

main61210-0E010iAXUH7#,GSU7#201912-202410

61220ARAIL ASSY, ROOF SIDE, LH

main61220-0E010iAXUH7#,GSU7#201912-202410

61311DPANEL, REAR BODY, FRONT OUTSIDE RH

main61311-0E080iAXUH7#,TXUA7#201912-202410

61312DPANEL, REAR BODY, FRONT OUTSIDE LH

main61312-0E080iAXUH7#,GSU7#201912-202410

65565PATCH, SIDE PANEL REAR END, RH

main65565-06110iAXUH7#,GSU7#201912-202410

65566PATCH, SIDE PANEL REAR END, LH

main65565-06110iAXUH7#,GSU7#201912-202410

12 parts on this diagram · 3 diagrams in section
