COWL PANEL & WINDSHIELD GLASS

0001 1 0003 1

53607BBRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, RH

main53607-0E020iAXUH7#,TXUA7#201912-202410

53608ABRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, LH

main53608-0E020iTXUA75;AXUH7#,TXUA70..G,M,N201912-202410

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0E080iTXUA75;AXUH7#,TXUA70..G,M,N201912-202410

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0E080iAXUH7#,TXUA7#201912-202410

53895FSHIELD, FRONT FENDER SPLASH, FRONT RH

main53895-0E130iAXUH7#,GSU7#201912-202410

53896ASHIELD, FRONT FENDER SPLASH, FRONT LH

main53896-0E130iTXUA75;AXUH7#,TXUA70..G,M,N201912-202410

55700BCOWL ASSY

main55700-0E120iTXUA70..S201912-202410

55704BPANEL SUB-ASSY, COWL VENTILATOR

main55704-0E020iAXUH7#201912-202311

main55704-0E100iTXUA75;TXUA70..G,M,N202210-202410

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0E080iAXUH7#,GSU7#201912-202410

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0E080iAXUH7#,GSU7#201912-202410

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0E180iAXUH7#,GSU7#201912-202311

TYPE A:REFER ILLUST.,TYPE B:REFER ILLUST.

main55708-0E180iTXUA70..S202311-202410

TYPE B:REFER ILLUST.

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-A0035iTXUA75;AXUH7#,TXUA70..G,M,N201912-202410

56111GLASS, WINDSHIELD

main56101-0E610iAXUH7#201912-202410

main56101-0E620iAXUH7#202002-202008

sub56101-0E621

main56101-0E621iAXUH7#202009-202110

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iAXUH7#,GSU7#201912-202410

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAXUH7#,GSU7#201912-202410

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0E050iTXUA75;AXUH7#,TXUA70..G,M,N201912-202410

L=718

main56117-0E050iAXUH7#,GSU7#201912-202311

L=718,PLATINUM PACKAGE

main56117-0E050iAXUH7#,GSU7#201912-202311

L=718,PLATINUM PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main56117-0E050iAXUH7#,TXUA7#202210-202311

L=718,HYBRID SPECIAL EDITION

main56117-0E050iAXUH7#,TXUA7#202210-202311

L=718,HYBRID SPECIAL EDITION&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

56117EDAM, WINDOW GLASS ADHESIVE

main56117-0E090iAXUH7#,GSU7#201912-202410

L=1469

main56117-0E090iAXUH7#,GSU7#201912-202311

L=1469,PLATINUM PACKAGE

main56117-0E090iAXUH7#,GSU7#201912-202311

L=1469,PLATINUM PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main56117-0E090iAXUH7#,TXUA7#202210-202311

L=1469,HYBRID SPECIAL EDITION

main56117-0E090iAXUH7#,TXUA7#202210-202311

L=1469,HYBRID SPECIAL EDITION&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-0E020iAXUH7#,GSU7#201912-202410

5701

75531FMOULDING, WINDSHIELD, OUTSIDE UPPER

main75531-0E040iAXUH7#,GSU7#201912-202410

8617

9011906A68

main90119-06A68

90178A0093

main90178-A0093

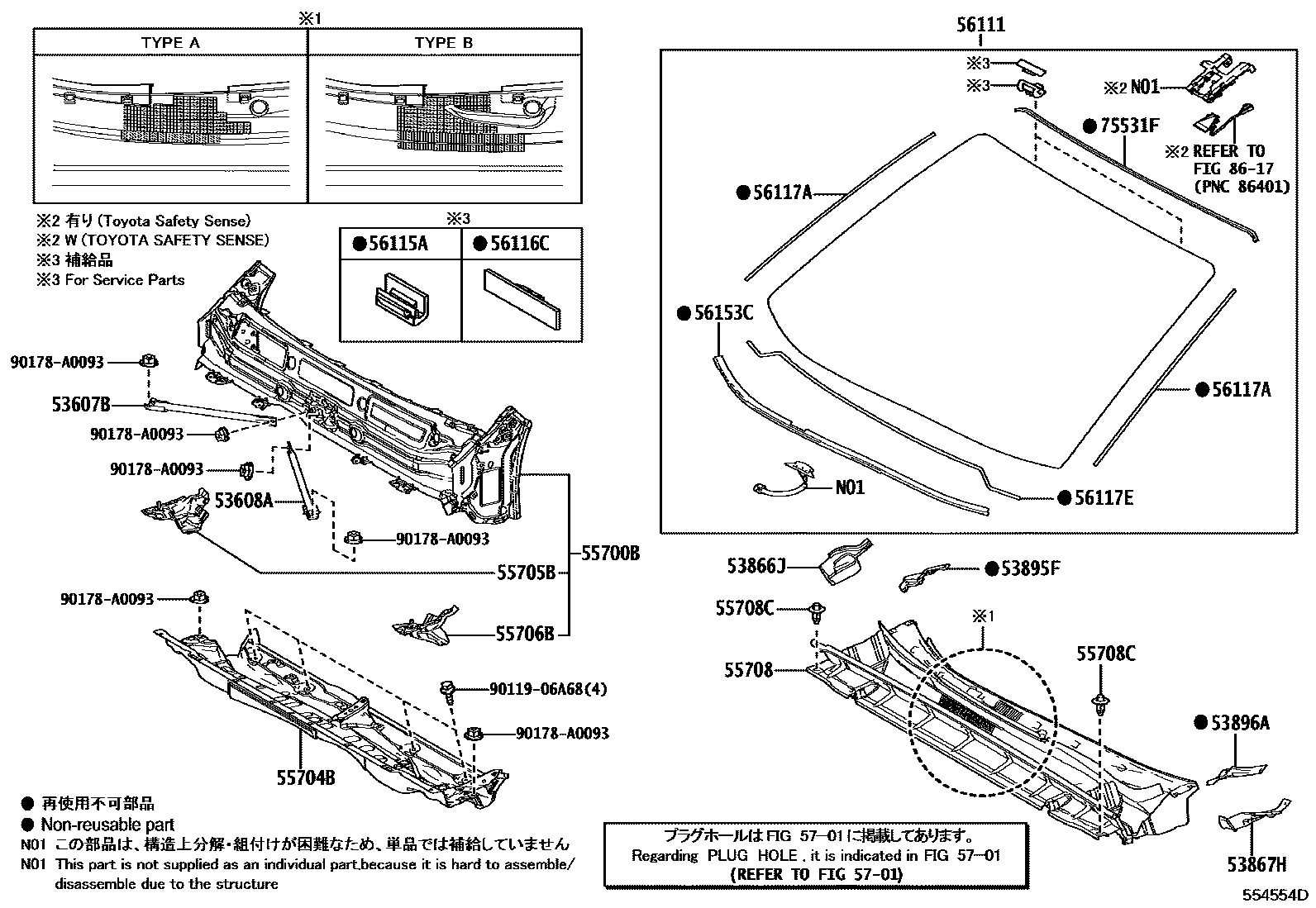

23 parts on this diagram · 2 diagrams in section
