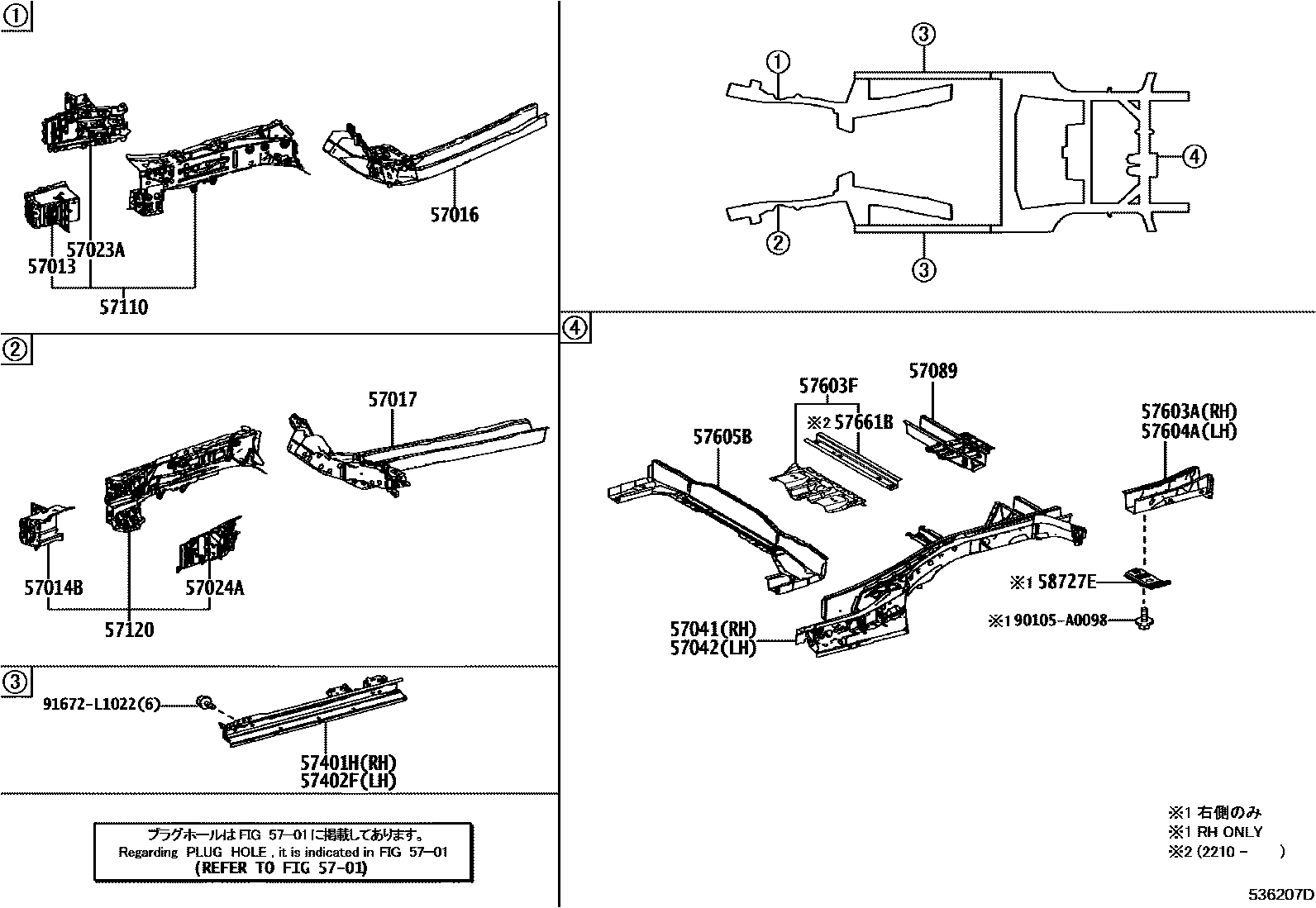

FLOOR SIDE MEMBER

0001 1 0002 1

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-0E010iTXUA75;AXUH7#,TXUA70..G,M,N201912-202410

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-0E010iAXUH7#,GSU7#201912-202410

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0E050iAXUH7#,GSU7#201912-202007

sub57016-0E051

main57016-0E051iAXUH7#,GSU7#202008-202204

main57016-0E052iTXUA75;AXUH7#,TXUA70..G,M,N202204-202410

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0E050iAXUH7#,GSU7#201912-202007

sub57017-0E051

main57017-0E051iAXUH7#,GSU7#202008-202410

57023AMEMBER SUB-ASSY, REAR SIDE, RH

main57023-0E010iAXUH7#,GSU7#201912-202410

57024AMEMBER SUB-ASSY, REAR SIDE, LH

main57024-0E010iAXUH7#,GSU7#201912-202410

57041MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH

main57041-0E050iGSU7#201912-202410

main57041-0E060iAXUH7#202002-202311

57042MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH

main57042-0E050iTXUA70..S201912-202410

main57042-0E060iAXUH7#202002-202311

57089REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.6

main57089-0E030iAXUH7#,GSU7#201912-202410

57110MEMBER ASSY, FRONT SIDE, RH

main57110-0E010iTXUA70..S201912-202410

57120MEMBER ASSY, FRONT SIDE, LH

main57120-0E010iAXUH7#,GSU7#201912-202410

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0E080iAXUH7#,GSU7#201912-202210

sub57401-0E170

main57401-0E170iAXUH7#,TXUA7#202210-202410

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0E080iAXUH7#,GSU7#201912-202210

sub57402-0E170

main57402-0E170iAXUH7#,TXUA7#202210-202410

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57606-0E070iAXUH7#,GSU7#201912-202410

57603FGUSSET SUB-ASSY, REAR FLOOR CROSSEMEMBER

main57603-0E090iGSU7#201912-202410

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57607-0E080iAXUH7#,GSU7#201912-202410

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0E090iGSU7#201912-202008

main57605-0E100iAXUH7#202002-202311

main57605-0E150iTXUA7#202009-202410

57661BMEMBER, REAR FLOOR CROSS, FRONT

main57661-0E011iTXUA70..S202002-202410

58727EPLATE, ENGINE SERVICE COVER, NO.1

main58727-0E010iTXUA7#201912-202311

TOWING PACKAGE-5000LBS&WITH(HITCH)

main58727-0E010iTXUA7#202002-202311

TOWING PACKAGE-3500LBS&WITH(HITCH)

main58727-0E010iTXUA70..S202311-202410

main58727-0E010iTXUA75;AXUH7#,TXUA70..G,M,N202311

TOWING PACKAGE-5000LBS & WITH(HITCH)

main58727-0E010iTXUA75;AXUH7#,TXUA70..G,M,N202311

TOWING PACKAGE-3500LBS & WITH(HITCH)

90105A0098

main90105-A0098

91672L1022

main91672-L1022

22 parts on this diagram · 2 diagrams in section
