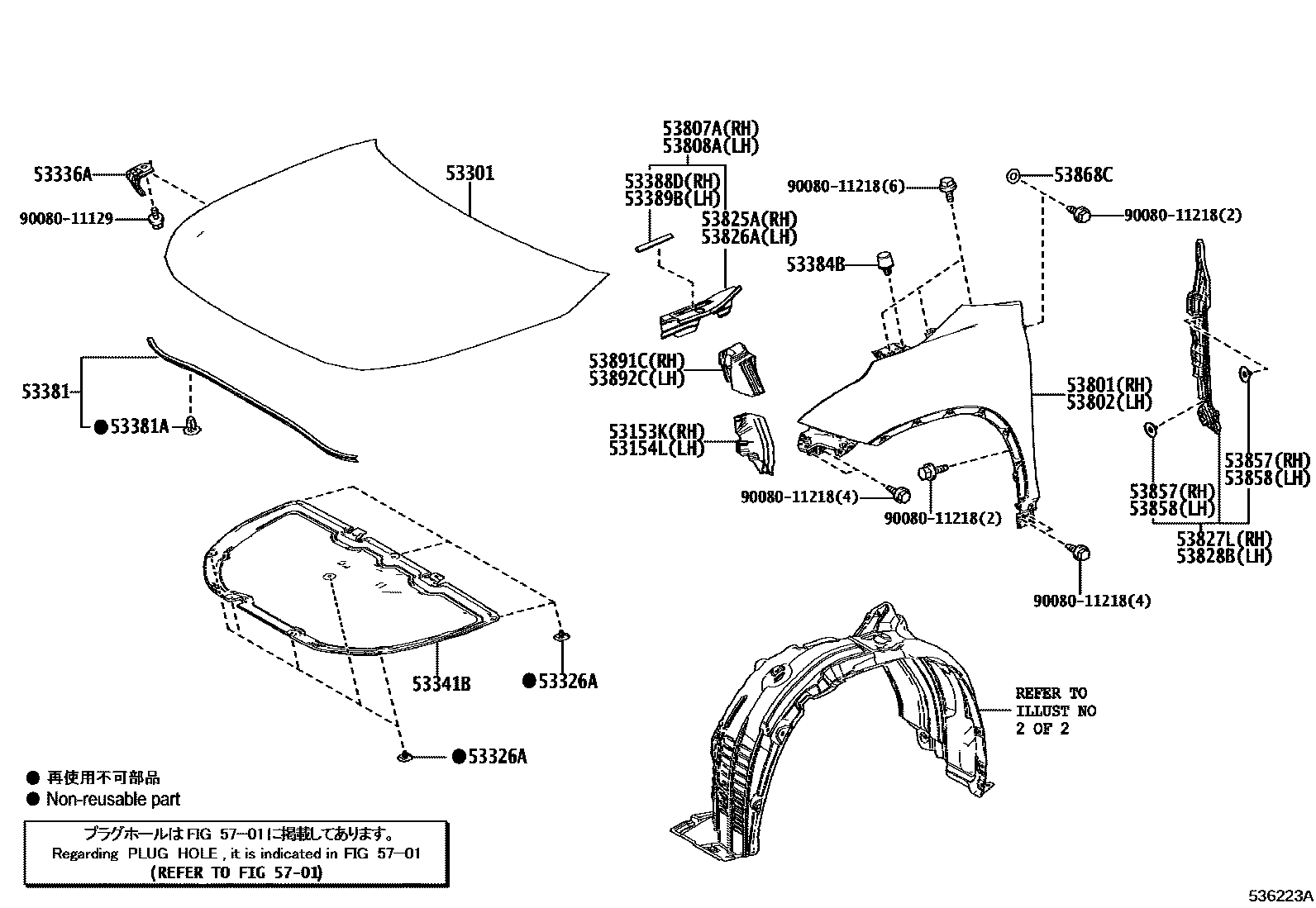

HOOD & FRONT FENDER
53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH
53301HOOD SUB-ASSY
53326ACLIP, HOOD MOULDING
53336ABRACKET, HOOD STAY
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384BCUSHION, HOOD, CENTER
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53807ASHIELD SUB-ASSY, FENDER SPLASH, REAR RH
53808ASHIELD SUB-ASSY, FENDER SPLASH, REAR LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53868CSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH
53891CSEAL, FRONT FENDER SPLASH SHEILD, FRONT
53892CSEAL, FRONT FENDER SPLASH SHIELD, FRONT LH
5701
9008011129
main90080-11129
9008011218
main90080-11218
27 parts on this diagram · 2 diagrams in section
