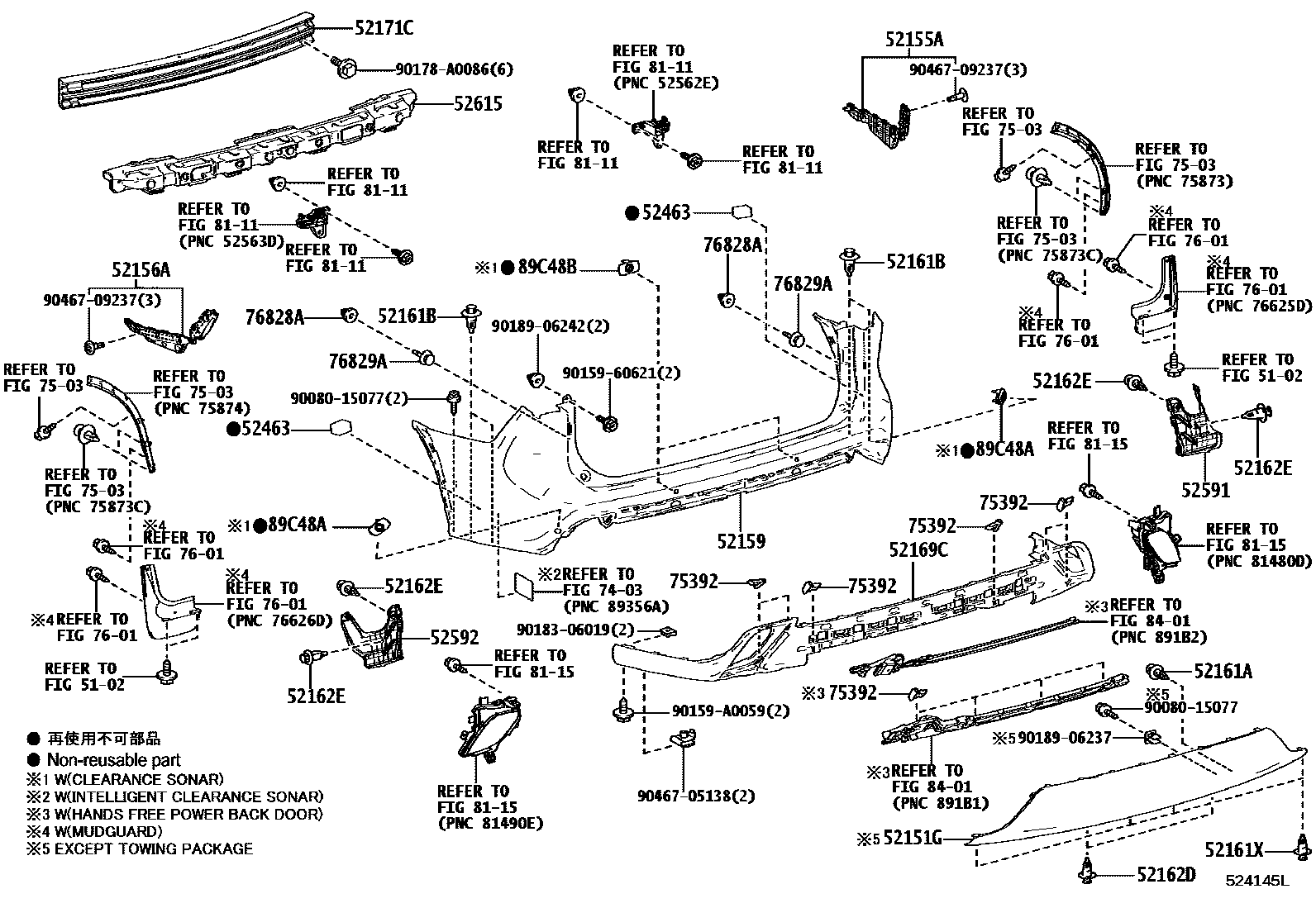

REAR BUMPER & BUMPER STAY
5102
52151GEXTENSION, REAR BUMPER
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
52161APIECE, REAR BUMPER, RH
52161BPIECE, REAR BUMPER
PLATINUM PACKAGE&TOWING PACKAGE-5000LBS & WITH(HITCH)
PLATINUM PACKAGE&TOWING PACKAGE-3500LBS & WITH(HITCH)
TOWING PACKAGE-5000LBS & WITH(HITCH)
TOWING PACKAGE-3500LBS & WITH(HITCH)
52161XPIECE, REAR BUMPER
TOWING PACKAGE-5000LBS & WITH(HITCH)
TOWING PACKAGE-5000LBS&WITH(HITCH)
52162DPIECE, REAR BUMPER
52162EPIECE, REAR BUMPER
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.
PAINT REQ.
52171CREINFORCEMENT, REAR BUMPER
52463PAD, REAR BUMPER, LH
NO PAINT REQ.
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
7403
7503
75392RETAINER, OUTSIDE MOULDING
TOWING PACKAGE-5000LBS & WITH(HITCH)
7601
76828ARETAINER, BACK DOOR GARNISH, NO.3
76829ARETAINER, BACK DOOR GARNISH
8111
8115
8401
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
PLATINUM WHITE PEARL MC.,089,RH
GRAY ME.,1G3,RH
SILVER ME.,1J9,RH
PRECIOUS GALENA,1K5,RH
PRECIOUS METAL,1L5,RH
ATTITUDE BLACK MC.,218,RH
RED MC.,3T3,RH
GREEN M.M.,6X5,RH
DK. BLUE MC.,8X8,RH
PLATINUM WHITE PEARL MC.,089,LH
GRAY ME.,1G3,LH
SILVER ME.,1J9,LH
PRECIOUS GALENA,1K5,LH
PRECIOUS METAL,1L5,LH
ATTITUDE BLACK MC.,218,LH
RED MC.,3T3,LH
GREEN M.M.,6X5,LH
DK. BLUE MC.,8X8,LH
WHITE PEARL CS.,070,RH
PLATINUM WHITE PEARL MC.,089,RH
GRAY ME.,1G3,RH
SILVER ME.,1J9,RH
PRECIOUS GALENA,1K5,RH
ATTITUDE BLACK MC.,218,RH
RED MC.,3T3,RH
BLACKISH BROWN MC.,4X9,RH
GREEN M.M.,6X5,RH
DK. BLUE MC.,8X8,RH
WHITE PEARL CS.,070,LH
PLATINUM WHITE PEARL MC.,089,LH
GRAY ME.,1G3,LH
SILVER ME.,1J9,LH
PRECIOUS GALENA,1K5,LH
ATTITUDE BLACK MC.,218,LH
RED MC.,3T3,LH
BLACKISH BROWN MC.,4X9,LH
GREEN M.M.,6X5,LH
DK. BLUE MC.,8X8,LH
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
SILVER ME.,1J9
PRECIOUS GALENA,1K5
PRECIOUS METAL,1L5
ATTITUDE BLACK MC.,218
RED MC.,3T3
GREEN M.M.,6X5
DK. BLUE MC.,8X8
9008015077
main90080-15077
9015960621
main90159-60621
90159A0059
main90159-A0059
90178A0086
main90178-A0086
9018306019
main90183-06019
9018906237
main90189-06237
9018906242
main90189-06242
9046705138
main90467-05138
9046709237
main90467-09237
36 parts on this diagram · 4 diagrams in section
