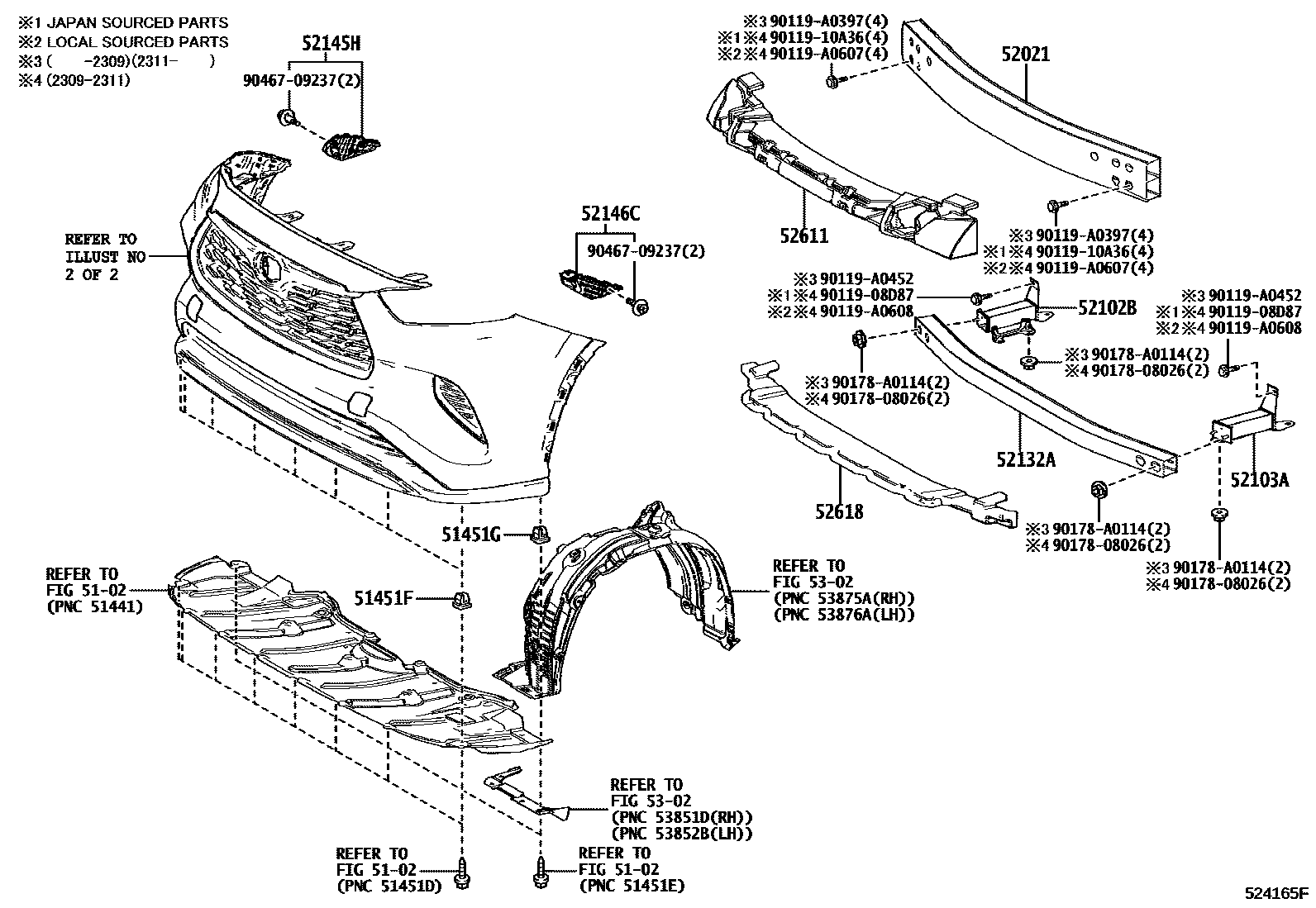

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1

5102

51451FGROMMET, NO.1

main90189-06237iTXUA70..S201912-202410

51451GGROMMET, NO.2

main90189-06237iAXUH7#,GSU7#201912-202410

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0E090iAXUH7#,GSU7#201912-202410

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-0E010iAXUH7#,GSU7#201912-202410

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-0E010iAXUH7#,GSU7#201912-202410

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-0E010iAXUH7#,GSU7#201912-202110

main52132-0E050iAXUH7#,GSU7#202110-202410

52145HSTAY, FRONT BUMPER SIDE, RH

main52145-0E100iAXUH7#,GSU7#201912-202410

52146CSTAY, FRONT BUMPER SIDE, LH

main52146-0E100iAXUH7#,GSU7#201912-202410

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0E140iAXUH7#,GSU7#..G,M,N201912-202311

main52611-0E160iTXUA75..S202009-202410

52618ABSORBER, FRONT BUMPER, LOWER

main52618-0E030iAXUH7#,GSU7#201912-202410

5302

9011908D87

main90119-08D87

9011910A36

main90119-10A36

90119A0397

main90119-A0397

90119A0452

main90119-A0452

90119A0607

main90119-A0607

90119A0608

main90119-A0608

9017808026

main90178-08026

90178A0114

main90178-A0114

9046709237

main90467-09237

21 parts on this diagram · 5 diagrams in section
