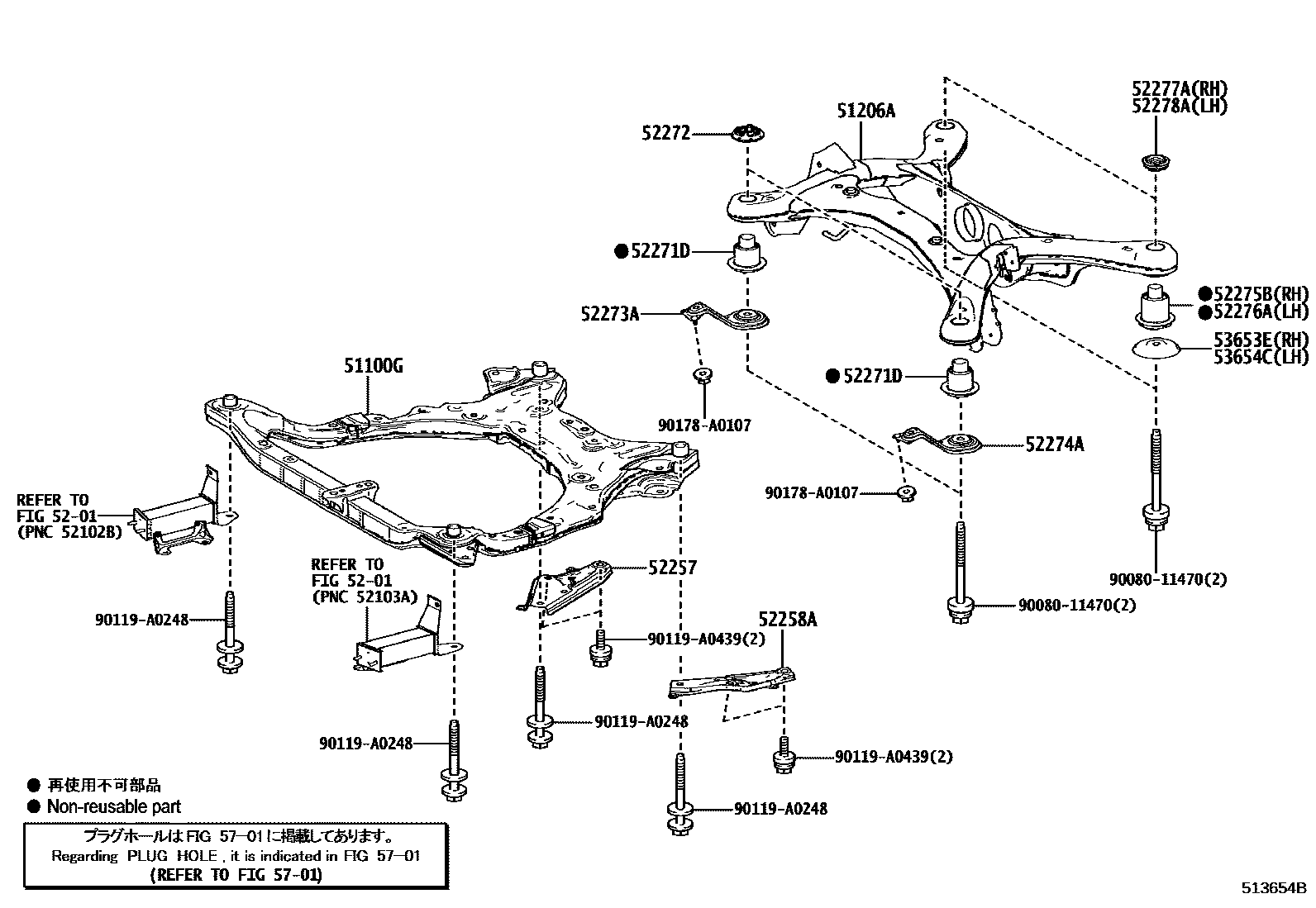

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1UNDER COVER 0004 1UNDER COVER(TOWING PACKAGE) 0005 1UNDER COVER 0006 1UNDER COVER 0007 1UNDER COVER

51100GFRAME ASSY, FRONT

main51100-0E080iGSU7#201912-202001

sub51100-0E081

main51100-0E081iAXUH7#,GSU7#202002-202210

main51100-0E131iTXUA75;AXUH7#,TXUA70..G,M,N202210-202410

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0E043iTXUA7#201912-202410

main51206-0E082iAXUH7#202002-202311

5201

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-0R040iAXUH7#,TXUA7#201912-202410

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-0R040iAXUH7#,GSU7#201912-202410

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-0E090iAXUH7#,GSU7#201912-202410

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-0E090iAXUH7#,GSU7#201912-202410

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-0E050iAXUH7#,GSU7#201912-202410

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52274-0E030iAXUH7#,GSU7#201912-202410

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-0E080iAXUH7#,GSU7#201912-202410

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-0E030iAXUH7#,GSU7#201912-202410

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52277-0E080iTXUA70..S201912-202410

52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH

main52277-0E080iAXUH7#,TXUA7#201912-202410

53653EBRACE, REAR SUSPENSION, LOWER RH

main53653-0E010iAXUH7#,TXUA7#201912-202410

53654CBRACE, REAR SUSPENSION, LOWER LH

main53653-0E010iTXUA70..S201912-202410

5701

9008011470

main90080-11470

90119A0248

main90119-A0248

90119A0439

main90119-A0439

90178A0107

main90178-A0107

20 parts on this diagram · 7 diagrams in section
