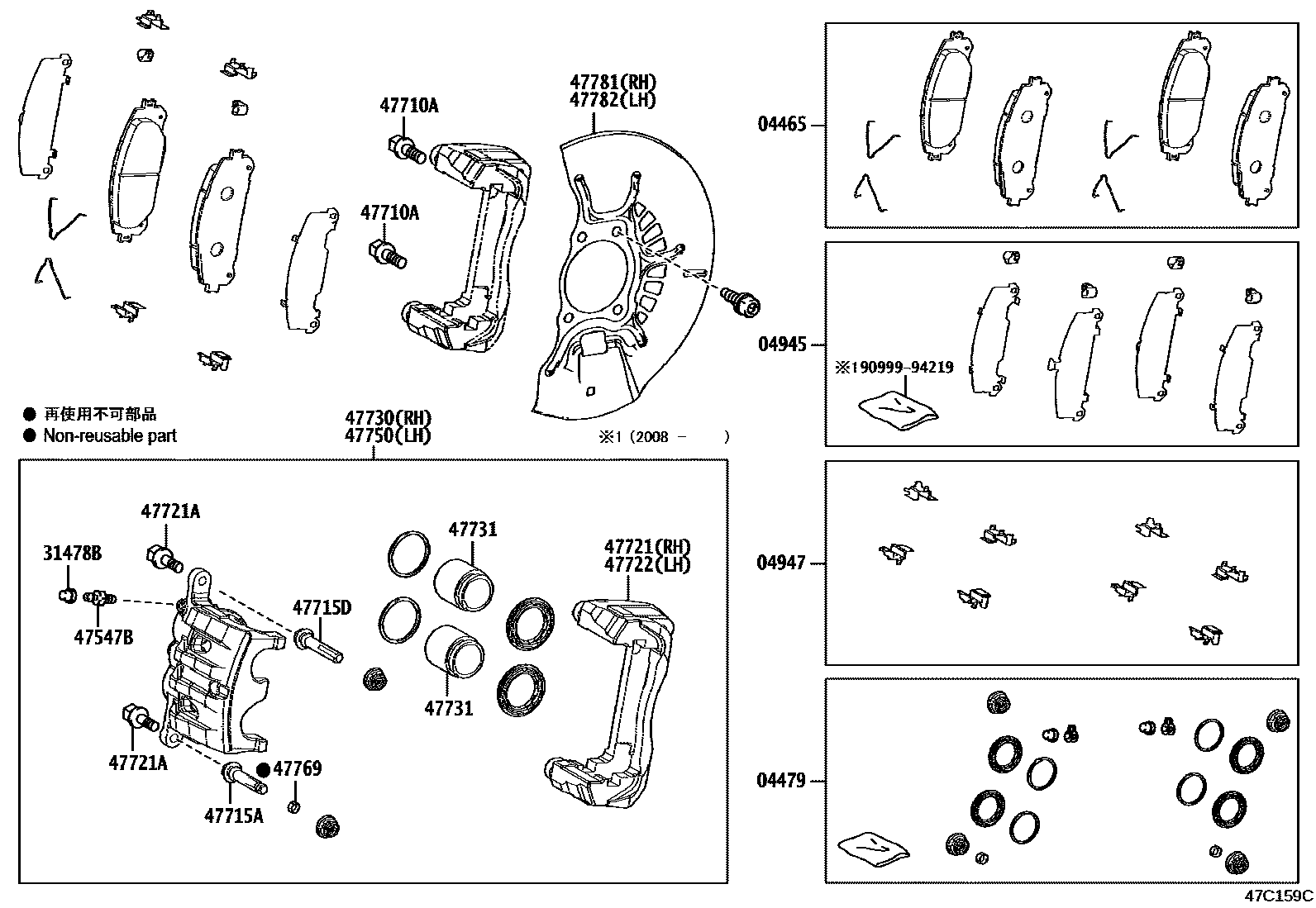

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-02530iAXUH7#,TXUA7#¥11,300201912-202410

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02440iAXUH7#,GSU7#201912-202410

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-02310iAXUH7#,GSU7#201912-202008

sub04945-02311

main04945-02311iAXUH7#,GSU7#202008-202410

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0E010iAXUH7#,GSU7#¥1,670201912-202410

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAXUH7#,TXUA7#¥160201912-202410

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAXUH7#,TXUA7#¥200201912-202410

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14212iTXUA70..S¥190201912-202410

*14-1.5PX35.5-31,(J)

main90105-A0435iAXUH7#,GSU7#201912-202410

*14-1.5PX35.5-31,(L)

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-0E070iAXUH7#,GSU7#201912-202410

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-0E070iAXUH7#,GSU7#201912-202410

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0E070iAXUH7#,GSU7#201912-202210

main47721-0E071iAXUH7#,TXUA7#202210-202410

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA615iAXUH7#,GSU7#201912-202410

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-0E070iAXUH7#,GSU7#201912-202210

main47722-0E071iAXUH7#,TXUA7#202210-202410

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0E070iAXUH7#,GSU7#201912-202210

sub47730-0E071

main47730-0E071iAXUH7#,TXUA7#202210-202410

47731PISTON, FRONT DISC BRAKE

main47731-0E070iAXUH7#,GSU7#201912-202410

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0E070iAXUH7#,GSU7#201912-202210

main47750-0E071iAXUH7#,TXUA7#202210-202410

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-0E070iAXUH7#,GSU7#¥240201912-202210

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0E060iAXUH7#,GSU7#201912-202410

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0E060iAXUH7#,GSU7#201912-202410

9099994219

main90999-94219

19 parts on this diagram · 1 diagram in section
