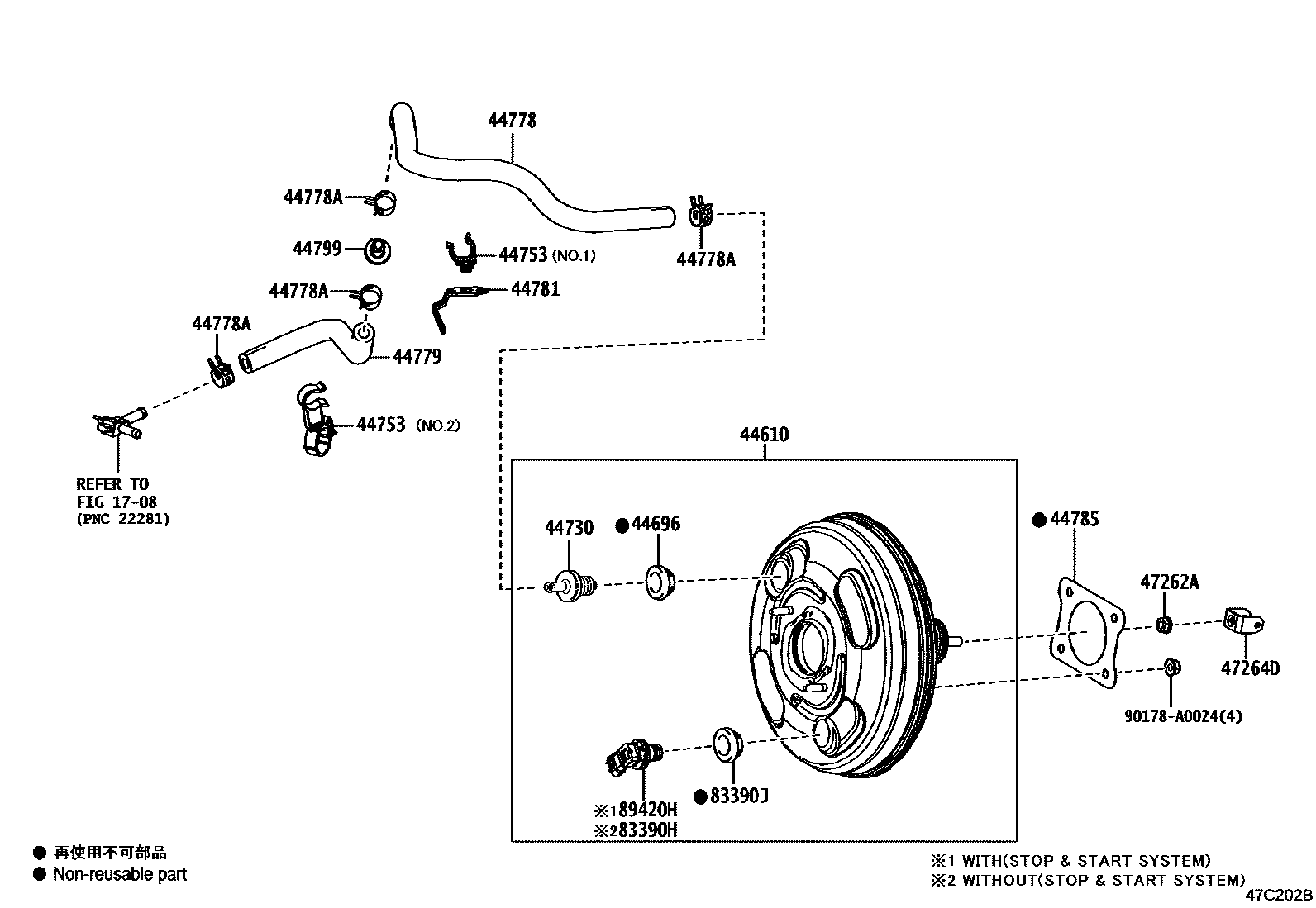

BRAKE BOOSTER & VACUUM TUBE
1708
44610BOOSTER ASSY, BRAKE
CANADA SPEC&WITHOUT(STOP & START SYSTEM)
MEXICO SPEC&WITHOUT(STOP & START SYSTEM)
GUAM,SAIPAN SPEC&WITHOUT(STOP & START SYSTEM)
A.SAMOA SPEC&WITHOUT(STOP & START SYSTEM)
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44753CLAMP, VACUUM RESERVOIR, NO.2
NO.1
NO.2
44778HOSE, CONNECTOR TO CHECK VALVE
44778ACLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
44779HOSE, UNION TO CONNECTOR
44781BRACKET, HOSE
44785GASKET, BRAKE BOOSTER
44799WAY, BRAKE VACUUM HOSE
47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
83390HSWITCH ASSY, VACUUM WARNING
WITHOUT(STOP & START SYSTEM)
83390JGROMMET, VACUUM WARNING SWITCH
89420HSENSOR ASSY, VACUUM
MEXICO SPEC
CANADA SPEC
GUAM,SAIPAN SPEC
A.SAMOA SPEC
CANADA SPEC
GUAM,SAIPAN SPEC
A.SAMOA SPEC
90178A0024
main90178-A0024
17 parts on this diagram · 2 diagrams in section
