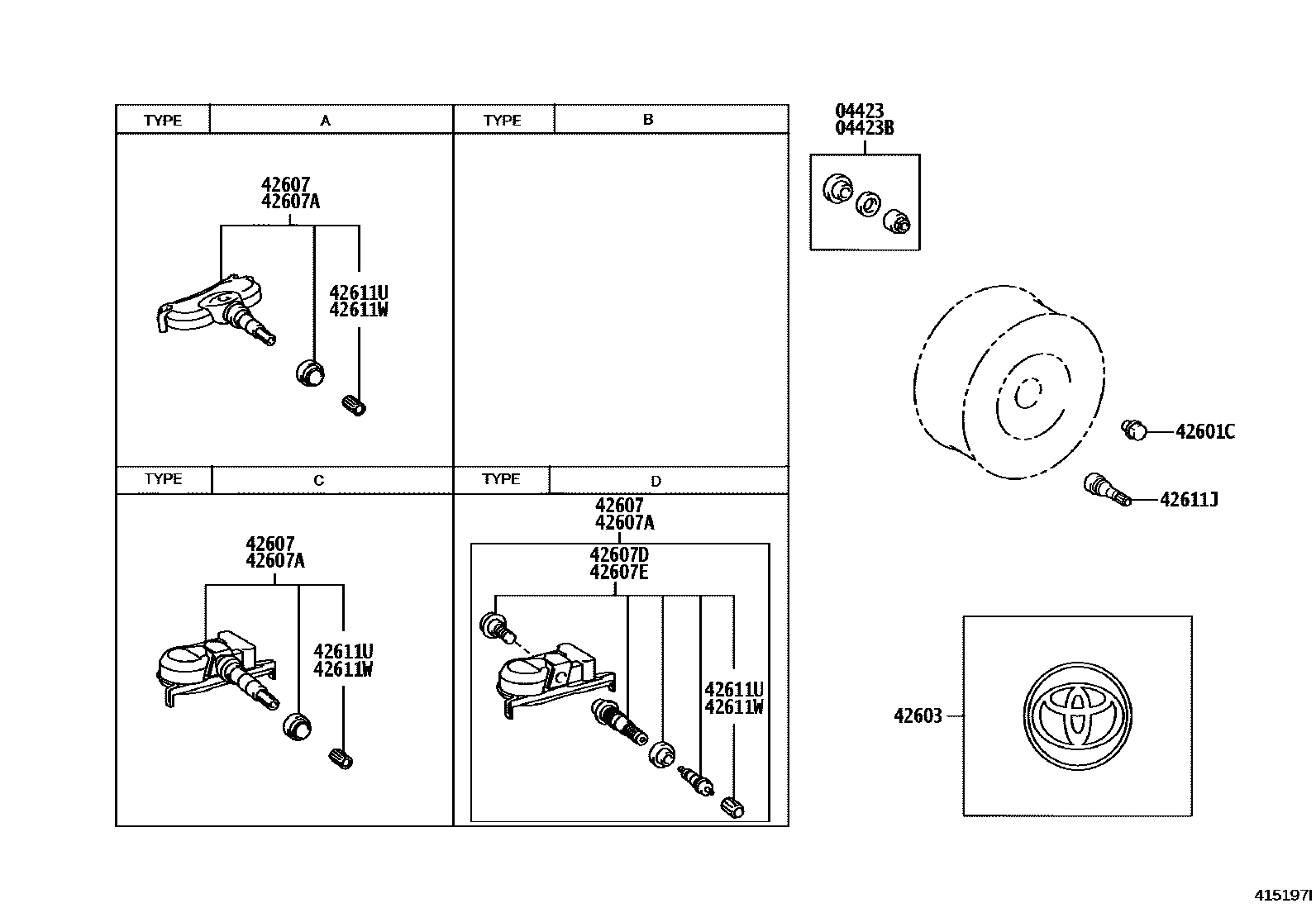

DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0C170iAXUH7#,TXUA7#201912-202408

main04423-0E010iTXUA70..S202408-202410

04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)

42601WHEEL, DISC

main4260D-0E030iAXUH7#,TXUA7#..G201912-202311

20X8J,#,TYPE D:REFER ILLUST.

main42611-0E510iAXUH7#,TXUA7#..N201912-202311

18X8J,#,TYPE A:REFER ILLUST.

main42611-0E530iAXUH7#,TXUA7#..M201912-202311

18X8J,#,TYPE B:REFER ILLUST.

main42611-0E540iGSU7#..S202009-202210

20X8J,#,TYPE G:REFER ILLUST.

sub42611-0E600

main42611-0E580iAXUH7#,TXUA7#..M201912-202311

18X8J,#,TYPE C:REFER ILLUST.

main42611-0EB80iAXUH78..G202210-202410

20X8J,#,TYPE G:REFER ILLUST.

main42611-0EB80iTXUA7#..S202210-202311

20X8J,#,KOREA SPEC,TYPE G:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90084-94001iAXUH7#,GSU7#201912-202310

WHEEL LOCKS-WITH(ACCESSORY)

sub90942-A1009

main90084-94001iAXUH7#,TXUA7#..G,M,N202210-202310

KOREA SPEC&PLATINUM PACKAGE&WHEEL LOCKS-WITH(ACCESSORY)

sub90942-A1009

main90084-94001iAXUH7#,TXUA7#..G,M,N202210-202310

KOREA SPEC&PLATINUM PACKAGE

sub90942-A1009

main90942-A1005iTXUA7#..S202210-202310

KOREA SPEC

sub90942-A1010

main90942-A1005iTXUA7#..S202210-202310

KOREA SPEC&WHEEL LOCKS-WITH(ACCESSORY)

sub90942-A1010

main90942-A1009iAXUH78..G202311

KOREA SPEC&PLATINUM PACKAGE&WHEEL LOCKS-WITH(CHROME)

main90942-A1009iAXUH78..G202311

KOREA SPEC&PLATINUM PACKAGE

main90942-A1009iAXUH78..G202311

WHEEL LOCKS-WITH(CHROME)

main90942-A1010iAXUH78..G202311-202410

HYBRID SPECIAL EDITION&WHEEL LOCKS-WITH(BLACK)

main90942-A1010iAXUH7#..N202311-202410

WHEEL LOCKS-WITH(BLACK)

main90942-A1010iAXUH7#..N202311-202410

HYBRID SPECIAL EDITION

main90942-A1010iAXUH78..G202311

KOREA SPEC&WHEEL LOCKS-WITH(BLACK)

main90942-A1010iAXUH78..G202311

KOREA SPEC

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-08010iAXUH7#,TXUA7#201912-202410

*ALU

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-02100iTXUA75;AXUH7#,TXUA70..G,M,N202408-202410

TYPE D:REFER ILLUST.

main42607-0C091iAXUH7#,TXUA7#201912-202408

TYPE A:REFER ILLUST.

42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)

42607DVALVE, TIRE PRESSURE MONITOR

main90942-A5007iTXUA75;AXUH7#,TXUA70..G,M,N202408-202410

TYPE D:REFER ILLUST.

42607EVALVE, TIRE PRESSURE MONITOR (FOR SPARE)

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45006iAXUH7#,GSU7#201912-202410

42611UCAP, TIRE VALVE

main90942-A5002iTXUA75;AXUH7#,TXUA70..G,M,N202408-202410

TYPE D:REFER ILLUST.

main90942-A5004iAXUH7#,TXUA7#201912-202408

TYPE A:REFER ILLUST.

42611WCAP, TIRE VALVE (FOR SPARE)

12 parts on this diagram · 2 diagrams in section
