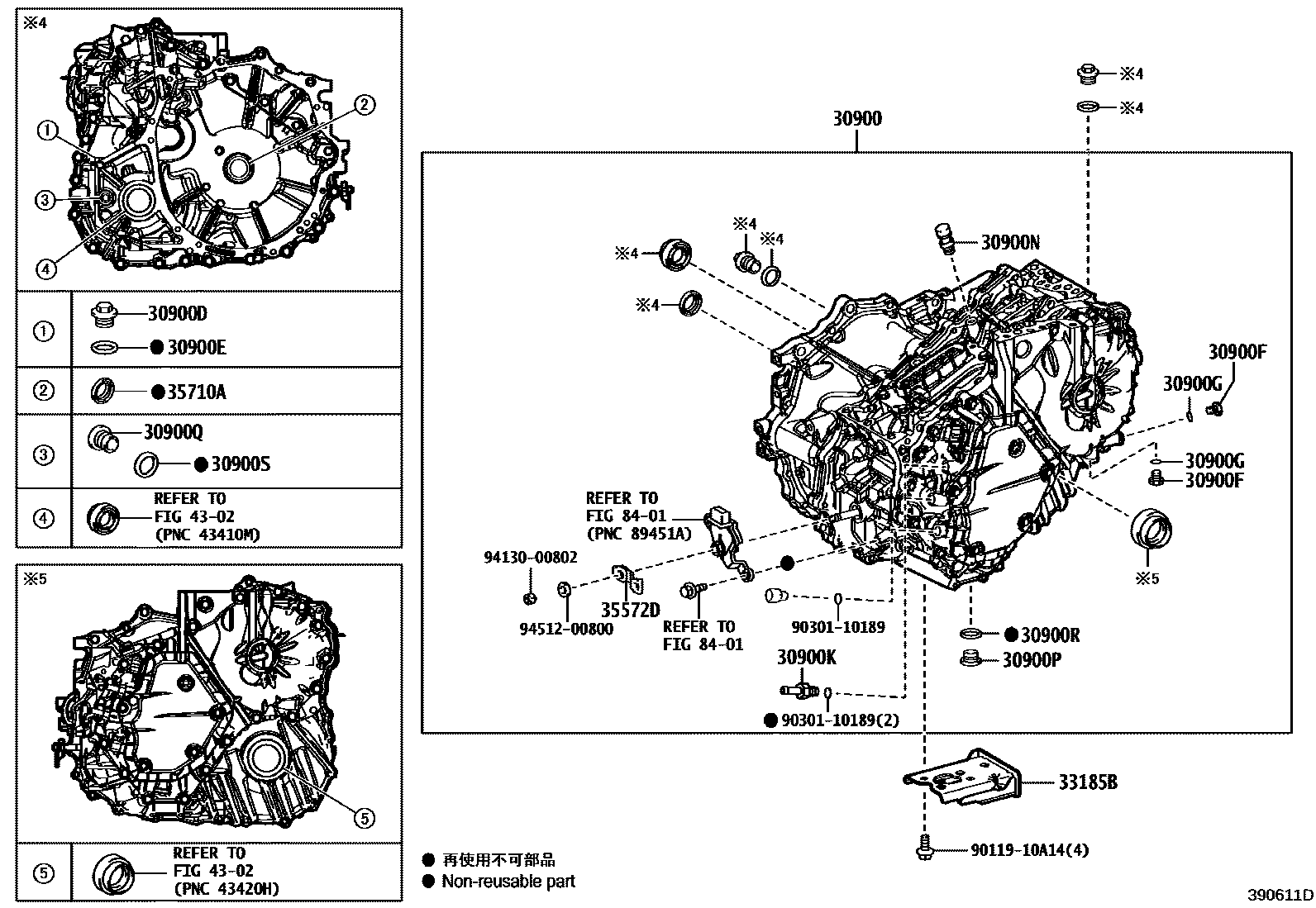

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
(L)
(L)
(J)
(J)
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900FPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)
30900GGASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)
30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)
30900NPLUG, BREATHER(FOR TRANSAXLE)
30900PPLUG, DRAIN(HEV)
30900QPLUG, FILLER(HEV)
30900RGASKET, DRAIN PLUG(HEV)
30900SGASKET, FILLER PLUG(HEV)
33185BBRACKET, TRANSAXLE UNDER STOPPER
35572DLEVER, TRANSMISSION CONTROL SHAFT
35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)
4302
8401
9011910A14
9030110189
9413000802
9451200800
20 parts on this diagram · 3 diagrams in section
