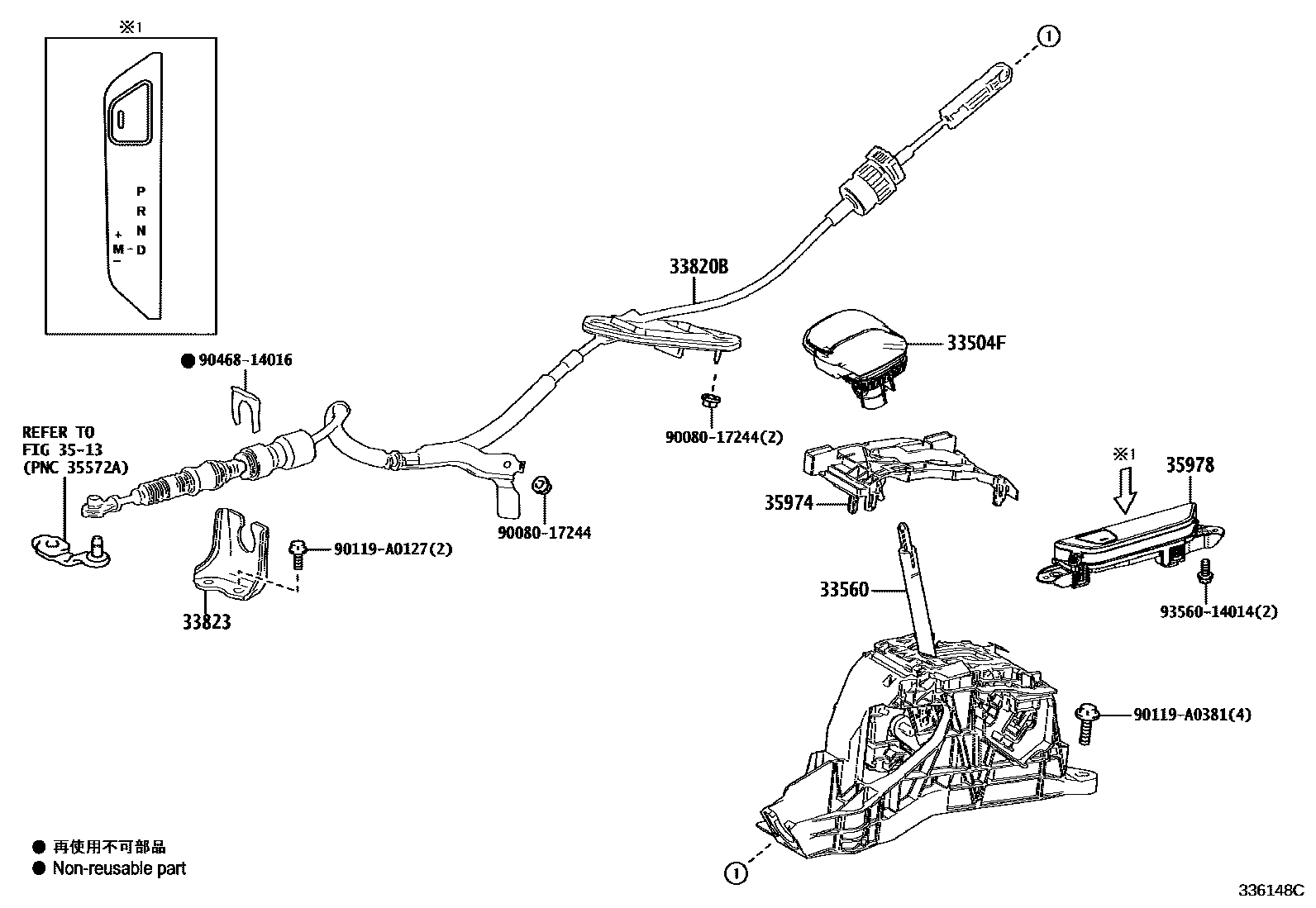

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0E210-C0iAXUH7#,TXUA7#..N202110-202311

BLACK,TRIM1#,2#

main33504-0E210-C0iAXUH7#,GSU7#..N202110-202311

BLACK,TRIM1#,2#,4#

main33504-0E210-C0iTXUA75..S202411

BLACK,TRIM2#,3#

main33504-0R120-C0iAXUH7#,TXUA7#..G202009-202411

BLACK,TRIM2#,3#

main33504-0R120-C0iAXUH7#,TXUA7#..G201912-202411

BLACK,TRIM1#,2#,4#

main33504-0R120-C0iAXUH7#,GSU7#..M201912-202110

BLACK,TRIM1#,2#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-06400iAXUH7#,GSU7#201912-202410

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0E180iGSU7#201912-202210

main33820-0E190iAXUH7#202002-202311

main33820-0E290iTXUA7#202210-202410

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-06040iTXUA7#201912-202410

main33823-0R100iAXUH7#202002-202311

3513

35974HOUSING, POSITION INDICATOR, LOWER

main35974-0E060iAXUH7#,GSU7#201912-202410

35978INDICATOR, SHIFT POSITION

main35978-0E090iGSU7#201912-202410

main35978-0E110iAXUH7#202002-202311

9008017244

main90080-17244

90119A0127

main90119-A0127

90119A0381

main90119-A0381

9046814016

main90468-14016

9356014014

main93560-14014

12 parts on this diagram · 3 diagrams in section
