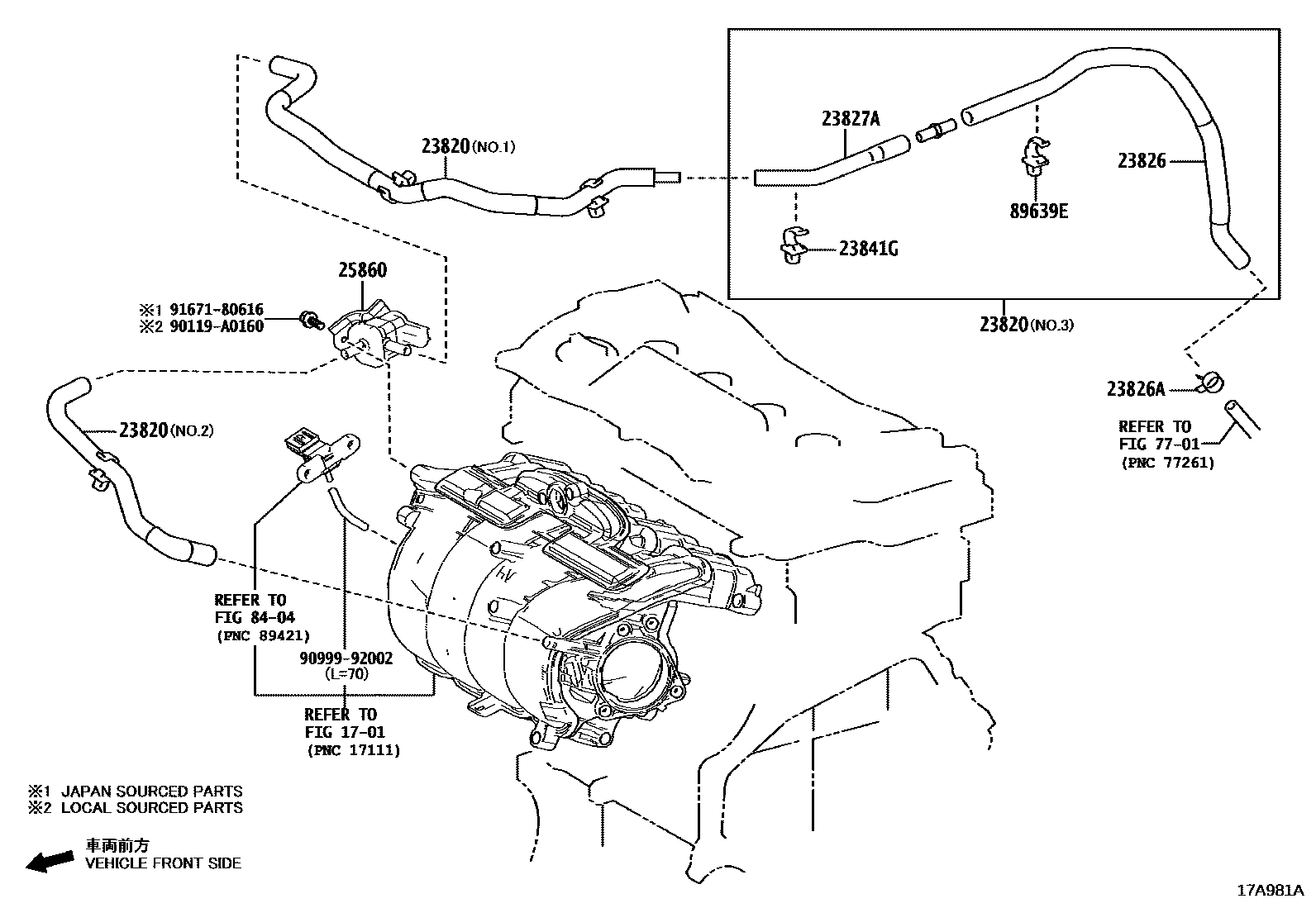

VACUUM PIPING
1701
23820HOSE ASSY, FUEL VAPOR FEED
(J),NO.1:REFER ILL.
(J),NO.2:REFER ILL.
(L),NO.1:REFER ILL.
(L),NO.2:REFER ILL.
NO.3:REFER ILLUST.
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23827AHOSE, FUEL VAPOR FEED, NO.2
23841GCLAMP, FUEL HOSE
25860VALVE ASSY, VACUUM SWITCHING, NO.1
NO.1
(J)
NO.2
(L)
7701
8404
89639ECLAMP
90119A0160
main90119-A0160
9099992002
main90999-92002
9167180616
main91671-80616
13 parts on this diagram · 4 diagrams in section
