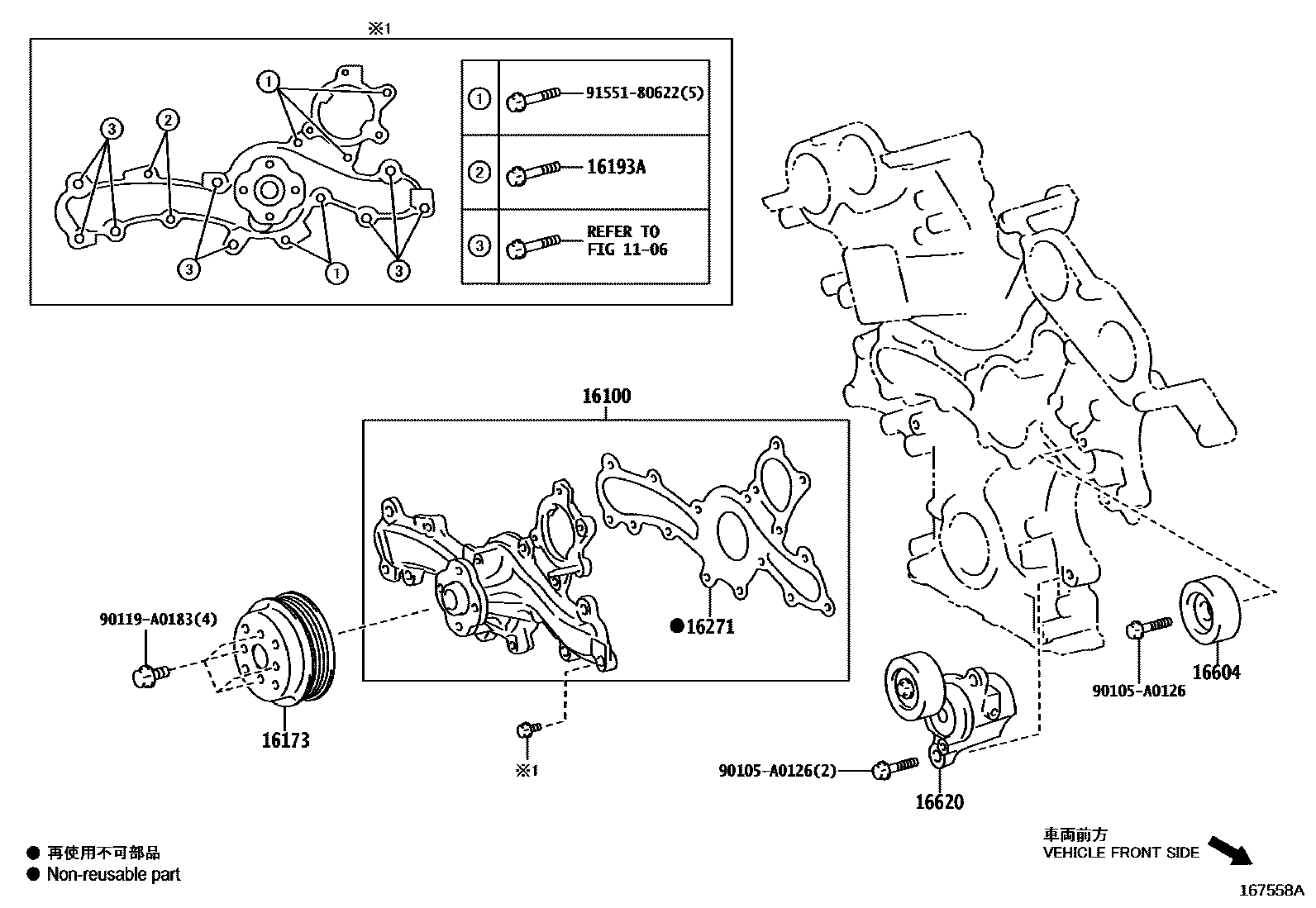

WATER PUMP

0001 1 0002 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-09690i2GRFKS..GSU7#¥9,500201912-202210

main16100-25030iT24AFTS..TXUA7#¥10,500202210-202410

(J)

main16100-F0010iT24AFTS..TXUA75;T24AFTS..TXUA70..G,M,N202210-202410

(L)

16173PULLEY, WATER PUMP

main16173-0P010i2GRFKS..GSU7#201912-202005

sub16173-0P011

main16173-0P011i2GRFKS..GSU7#202006-202210

16193ABOLT(FOR WATER PUMP COVER)

main16193-0P040i2GRFKS..GSU7#201912-202210

(L)

main16193-31080i2GRFKS..GSU7#¥210201912-202210

(J)

16271GASKET, WATER PUMP

main16271-0P030i2GRFKS..GSU7#201912-202205

main16271-25020iT24AFTS..TXUA70..S¥590202210-202410

main16271-31050i2GRFKS..GSU7#¥1,740202205-202210

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31030i2GRFKS..GSU7#¥4,180201912-202210

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0P030i2GRFKS..GSU7#201912-202210

main16620-25050iT24AFTS..TXUA70..S¥10,100202210-202410

(J)

main16620-F0040iT24AFTS..TXUA70..S202210-202410

(L)

90105A0126

main90105-A0126

90119A0183

main90119-A0183

9155180622

main91551-80622¥60

10 parts on this diagram · 2 diagrams in section
