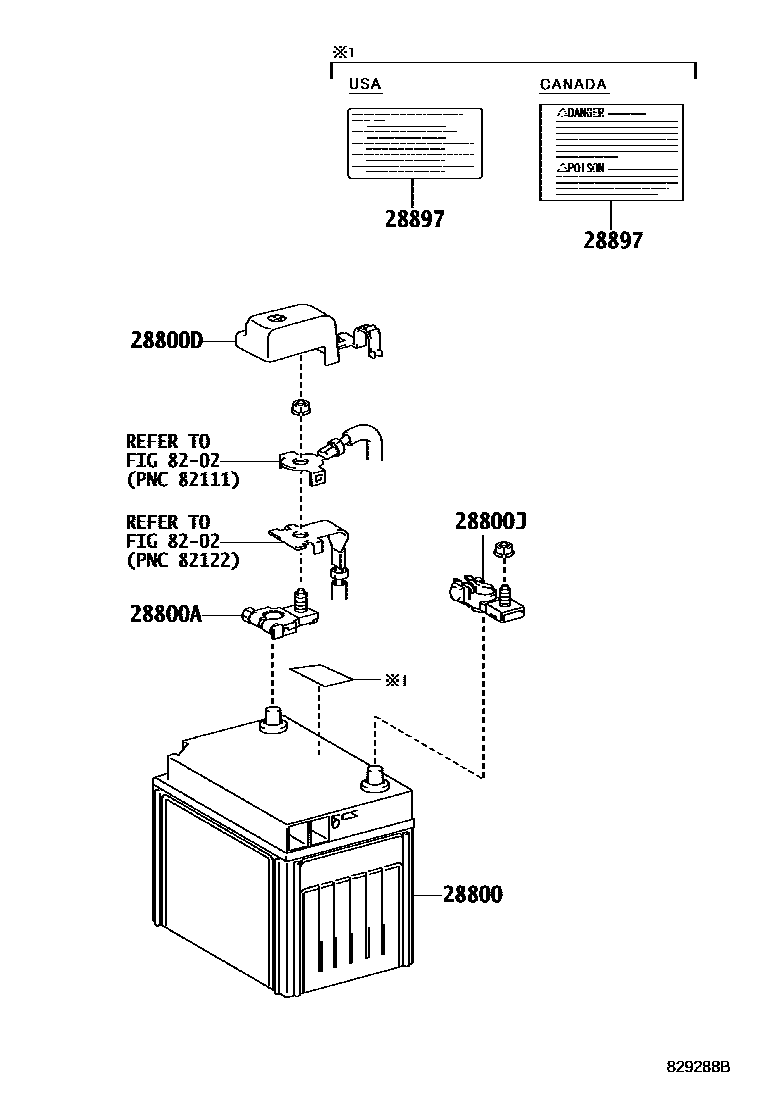

BATTERY & BATTERY CABLE

0001 1BATTERY 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY

28800BATTERY

main28800-31290i2GRFXE..GVU58201401-201703

S55D23L

sub28800-31291

main28800-31291i2GRFXS..GVU58201703

S55D23L

sub28800-31292

main28800-31550i2GRFKS..GSU5#..N201611

S-95,LE PACKAGE

main28800-31550i2GRFKS..GSU5#..G,M201611

S-95

28800ATERMINAL, BATTERY POSITIVE

main90982-05053i2GRFXS..GVU58201401-201611

main90982-05061i1ARFE,2GRFE..ASU50,GSU5#201312-201611

main90982-05062i2GRFKS..GSU5#201611

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-0E010i1ARFE,2GRFE..ASU50,GSU5#201312-201611

main82821-52060i2GRFKS..GSU5#201611

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i1ARFE,2GRFE..ASU50,GSU5#201312-201611

main90982-06070i1ARFE,2GRFKS..ASU50,GSU5#..N201611

MEXICO

28897PLATE, BATTERY CAUTION

main28898-20020i2GRFXE..GVU58201401-201611

USA POSSESSION SPEC

main28898-20020i2GRFXE..GVU58201401-201611

ECUADOR SPEC

main28898-20020i2GRFXS..GVU58201611

8202

6 parts on this diagram · 4 diagrams in section
