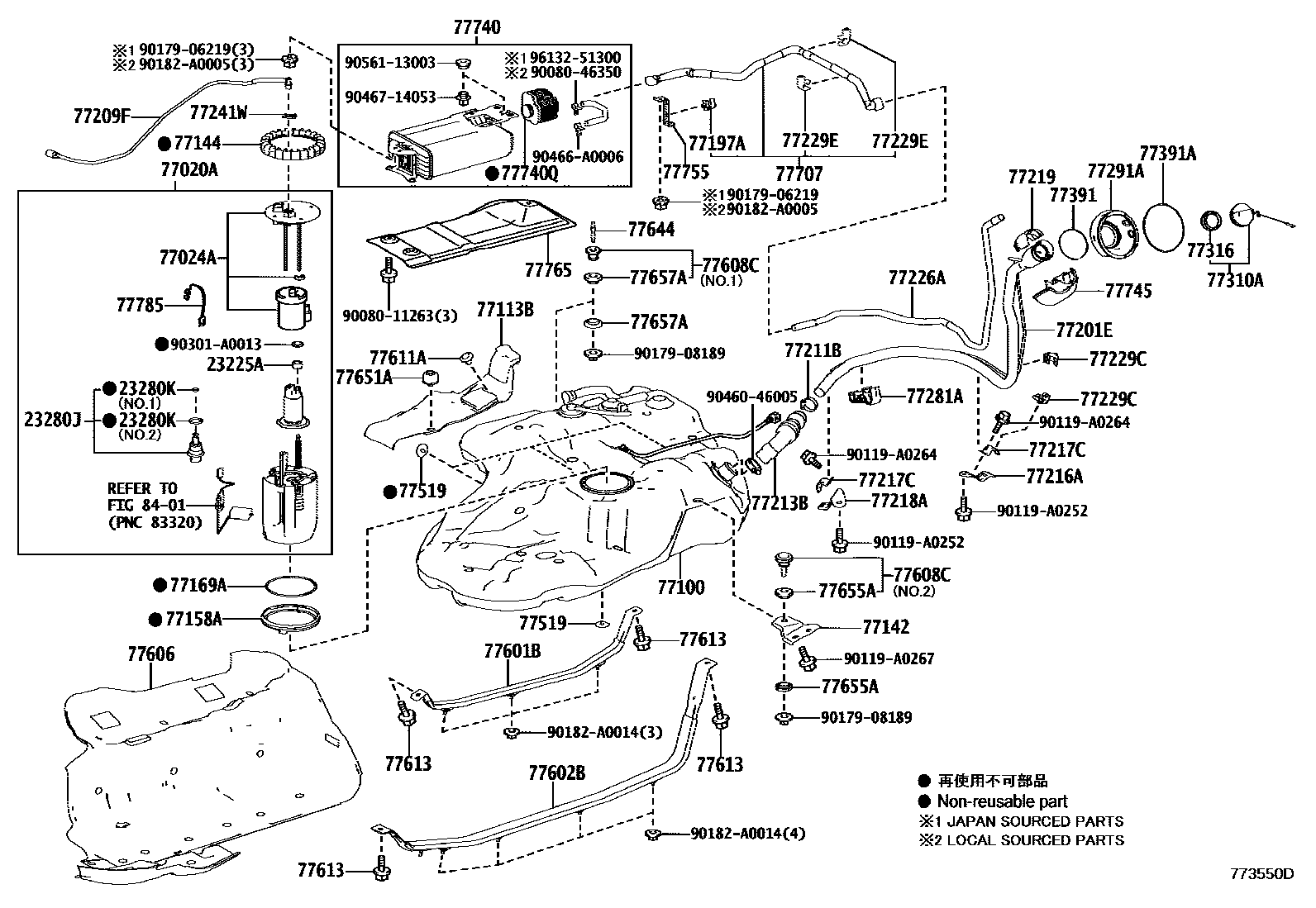

FUEL TANK & TUBE
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77113BPLATE, FUEL TANK SIDE
77142BRACKET, FUEL TANK MOUNTING, REAR
77144RETAINER, FUEL PUMP GAUGE
77158ASUPPORT, TANK SUCTION TUBE
77169AGASKET, FUEL SUCTION TUBE SET
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77211BCLAMP (FOR FUEL FILLER PIPE)
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77219COVER, FUEL TANK FILLER PIPE
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77229ECLAMP, BREATHER TUBE
77281ACLAMP, FUEL FILLER PIPE
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77519SPACER, FUEL TANK BRACKET
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77608CCUSHION SET, FUEL TANK
NO.1
NO.2
77611APIN (FOR FUEL TANK BAND)
77613BOLT, FUEL TANK BAND SET
77644BOLT, FUEL TANK
77651ACUSHION, FUEL TANK, NO.1
77655ACUSHION, FUEL TANK, NO.5
77657ACUSHION, FUEL TANK, NO.5
77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET
77740CANISTER ASSY, CHARCOAL
77745FILTER, CHARCOAL CANISTER, NO.1
77755BRACKET, CHARCOAL CANISTER OUTLET HOSE
77765PROTECTOR, CHARCOAL CANISTER
8401
9008011263
main90080-11263
9008046350
main90080-46350
90119A0252
main90119-A0252
90119A0264
main90119-A0264
90119A0267
main90119-A0267
9017906219
main90179-06219
9017908189
main90179-08189
90182A0005
main90182-A0005
90182A0014
main90182-A0014
90301A0013
main90301-A0013
9046046005
main90460-46005
90466A0006
main90466-A0006
9046714053
main90467-14053
9056113003
main90561-13003
9613251300
main96132-51300
64 parts on this diagram · 13 diagrams in section
