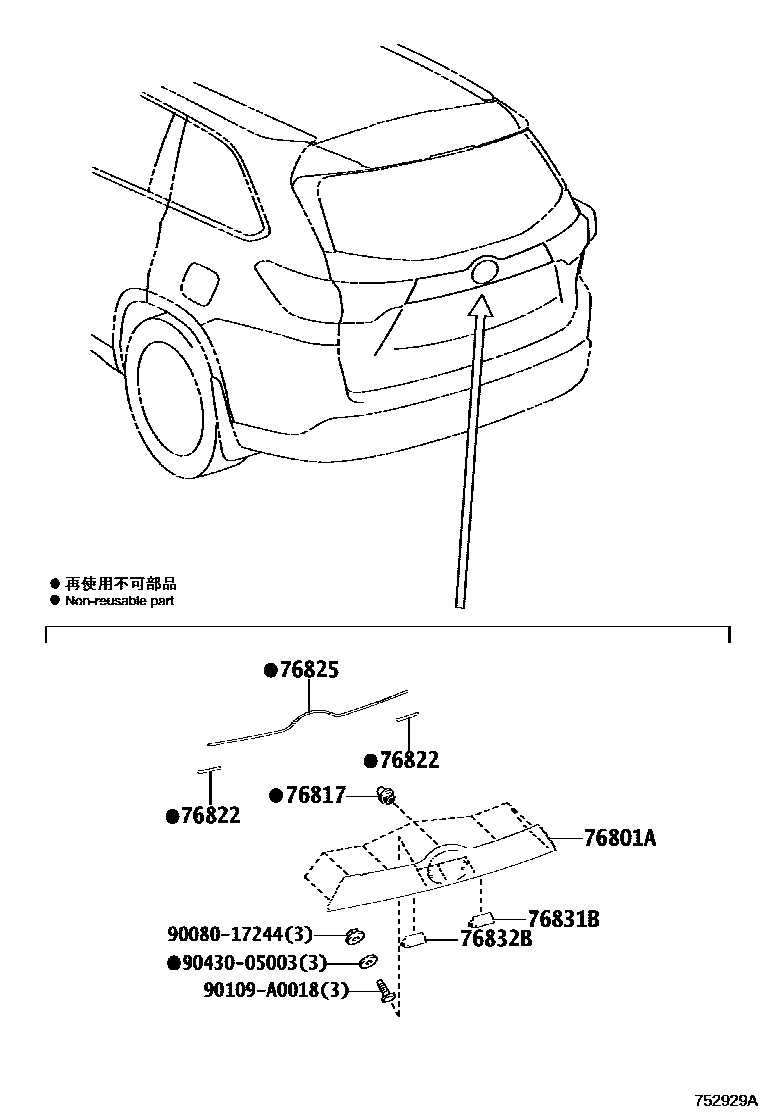

REAR MOULDING
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
PAINT REQ.
PAINT REQ.,AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
PAINT REQ.
PAINT REQ.,LE PACKAGE
76817CLIP, BACK DOOR OUTSIDE GARNISH
76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76831BCOVER, BACK DOOR FINISH PANEL, RH
76832BCOVER, BACK DOOR FINISH PANEL, LH
9008017244
main90080-17244
90109A0018
main90109-A0018
9043005003
main90430-05003
9 parts on this diagram · 1 diagram in section
