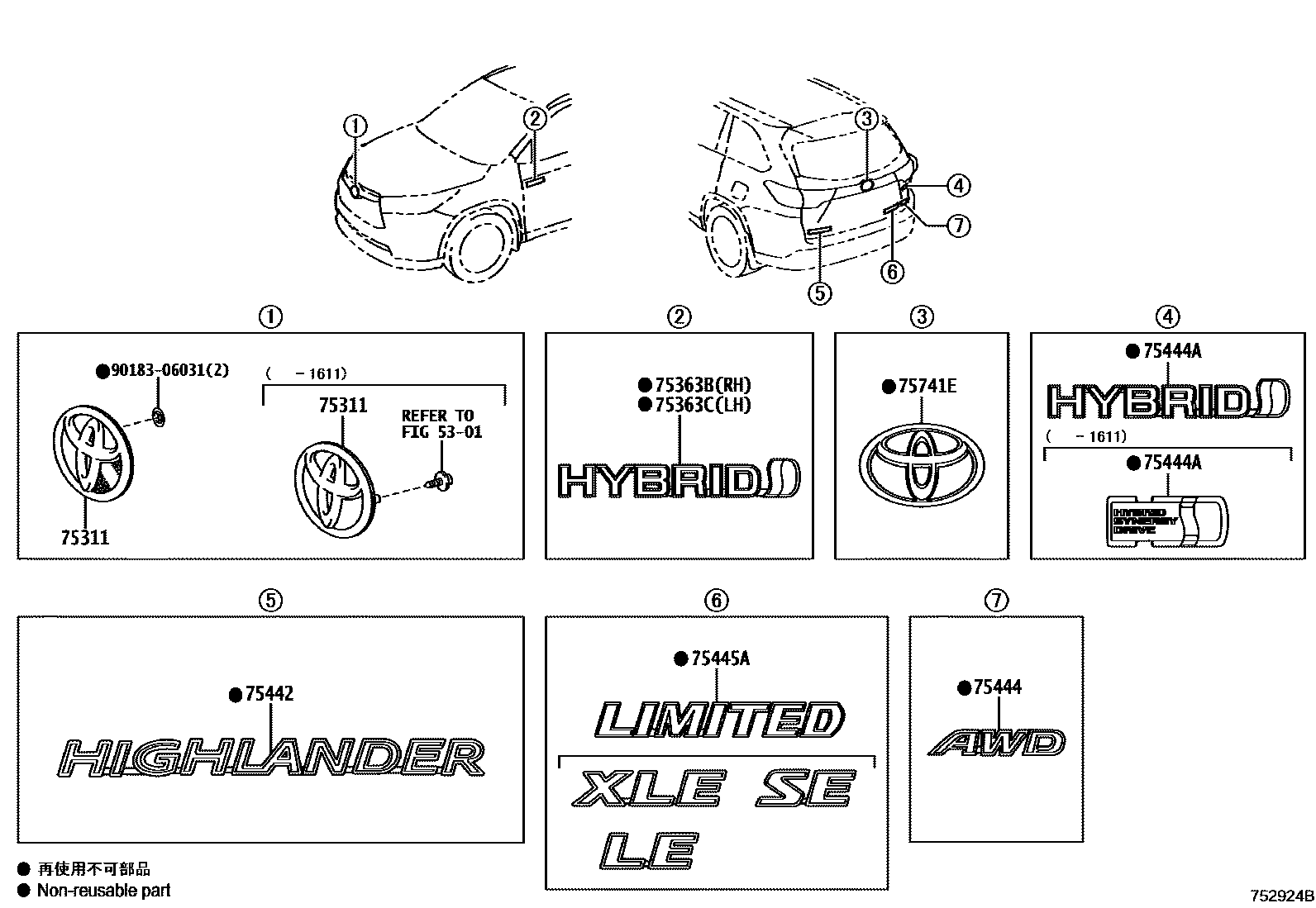

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

5301

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-42020iASU50,GSU5#201611

sub53141-42021

main53141-47030iGVU58201611

sub53141-47031

main75310-0E010iASU50,GSU5#201312-201611

main75310-47010iGVU58201401-201611

75363BPLATE, DOOR NAME, RH

main75361-48050iGVU58201401-201611

HYBRID

75363CPLATE, DOOR NAME, LH

main75362-48010iGVU58201401-201611

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-0E050iASU50,GSU5#,GVU58201312-201611

HIGHLANDER

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-0E050iGSU55201312-201611

AWD

75444APLATE, BACK DOOR NAME, NO.4

main75445-0E050iGVU58201401-201611

HYBRID SYNERGY DRIVE

main75445-48110iGVU58201611

HYBRID

75445APLATE, BACK DOOR NAME, NO.5

main75445-0E010iGSU5#,GVU58..G201312-201611

LIMITED

main75445-0E020iGSU5#,GVU58..M201312-201611

XLE

main75445-0E040iGSU50..N201312-201611

LE

main75445-0E040iGSU50..N201611

LE,CANADA&LE PACKAGE

main75445-0E040iGSU50..N201611

LE,MEXICO

main75445-0E040iGSU50..N201611

LE,LE PACKAGE

main75445-0E040iGSU5#..N201611

LE,CANADA

75741EEMBLEM, SYMBOL

main75403-0E010iGVU58201401-201611

main90975-02073iASU50,GSU5#201312-201611

9018306031

main90183-06031

10 parts on this diagram · 1 diagram in section
