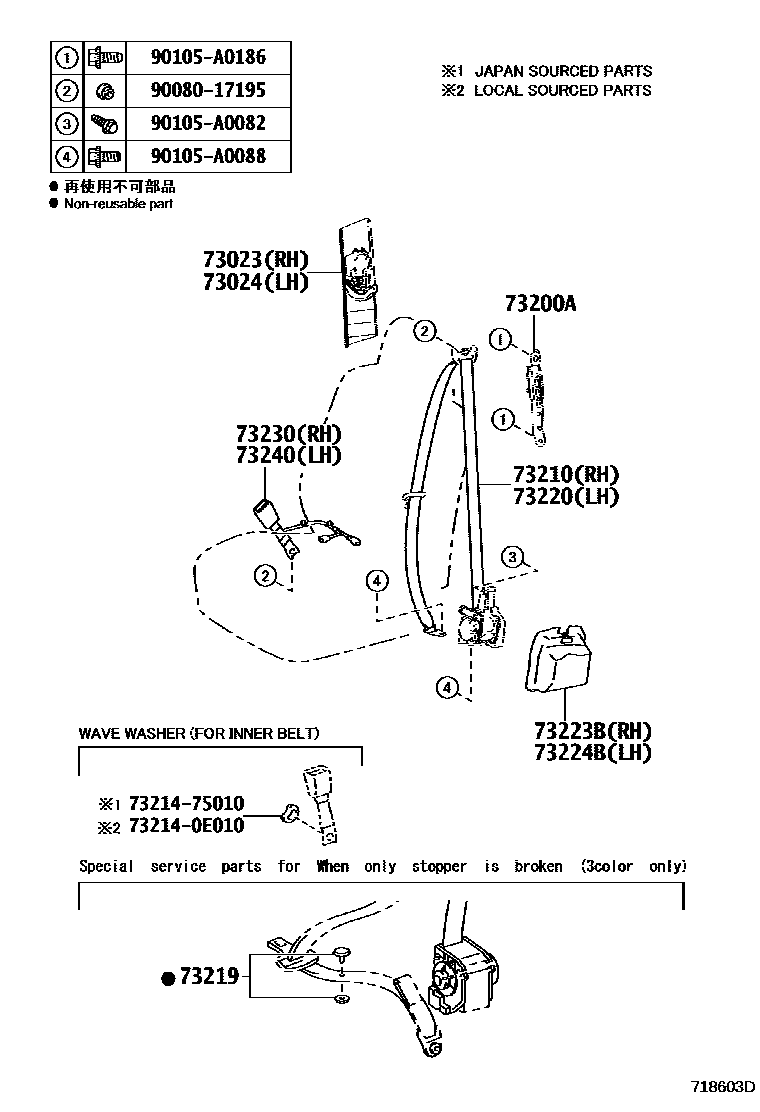

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0004 1REAR NO.1 SEAT(CAPTAIN SEAT) 0005 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-06070-A1iASU50,GSU5#,GVU58201312-201611

FLAXEN,TRIM0#

main73023-06070-B0iGSU5#,GVU58..G201312-201611

GRAY,TRIM1#,2#

main73023-06070-B0iGSU5#,GVU58..G201611

GRAY,TRIM1#,2#,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-06070-A1iASU50,GSU5#,GVU58201312-201611

FLAXEN,TRIM0#

main73024-06070-B0iGSU5#,GVU58..G201611

GRAY,TRIM1#,2#,4#

main73024-06070-B0iASU50,GSU5#,GVU58..M,N201312-201611

GRAY,TRIM1#,2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0C020iASU50,GSU5#,GVU58201312-201611

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0E080-A0iGSU5#..N201312-201510

FLAXEN,TRIM0#

sub73210-0E081

main73210-0E080-A0iGSU5#..N201312-201510

LE PACKAGE,FLAXEN,TRIM0#

sub73210-0E081

main73210-0E080-B0iASU50,GSU5#,GVU58201312-201510

GRAY,TRIM1#

sub73210-0E081

main73210-0E080-C0iASU50,GSU5#,GVU58201312-201510

BLACK,TRIM2#

sub73210-0E081

main73210-0E081-A0iGSU5#..N201511-201611

LE PACKAGE,FLAXEN,TRIM0#

main73210-0E081-A0iGVU58;GSU5#..G,M201511-201611

FLAXEN,TRIM0#

main73210-0E081-B0iASU50,GSU5#,GVU58201511-201611

GRAY,TRIM1#

main73210-0E081-C0iASU50,GSU5#,GVU58..M,N201611

BLACK,TRIM2#,4#

main73210-0E081-C0iASU50,GSU5#,GVU58201511-201611

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-02010iASU50,GSU5#,GVU58201312-201611

BLACK

main73219-02020iASU50,GSU5#,GVU58201312-201611

GRAY

main73219-02030iASU50,GSU5#,GVU58201312-201611

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0E070-A0iGVU58;GSU5#..G,M201312-201510

FLAXEN,TRIM0#

sub73220-0E071

main73220-0E070-A0iGVU58;GSU5#..G,M201312-201510

LE PACKAGE,FLAXEN,TRIM0#

sub73220-0E071

main73220-0E070-B0iASU50,GSU5#,GVU58201312-201510

GRAY,TRIM1#

sub73220-0E071

main73220-0E070-C0iASU50,GSU5#,GVU58201312-201510

BLACK,TRIM2#

sub73220-0E071

main73220-0E071-A0iGVU58;GSU5#..G,M201511-201611

FLAXEN,TRIM0#

main73220-0E071-A0iGVU58;GSU5#..G,M201511-201611

LE PACKAGE,FLAXEN,TRIM0#

main73220-0E071-B0iASU50,GSU5#,GVU58201511-201611

GRAY,TRIM1#

main73220-0E071-C0iGSU5#,GVU58..G201611

BLACK,TRIM2#,4#

main73220-0E071-C0iASU50,GSU5#,GVU58201511-201611

BLACK,TRIM2#

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-0E020iASU50,GSU5#,GVU58201312-201611

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-0E020iASU50,GSU5#,GVU58201312-201611

73230BELT ASSY, FRONT SEAT INNER, RH

main73240-0E010-A0iGSU5#..N201312-201611

LE PACKAGE,FLAXEN,TRIM0#

main73240-0E010-A0iGVU58;GSU5#..G,M201312-201611

FLAXEN,TRIM0#

main73240-0E010-B0iASU50,GSU5#,GVU58201312-201611

GRAY,TRIM1#

main73240-0E010-C0iASU50,GSU5#,GVU58..M,N201312-201611

BLACK,TRIM2#

main73240-0E010-C0iASU50,GSU5#,GVU58..M,N201611

BLACK,TRIM2#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0E080-A0iGSU5#,GVU58..G,M201312-201611

LE PACKAGE,FLAXEN,TRIM0#

main73230-0E080-A0iGVU58;GSU5#..G,M201312-201611

FLAXEN,TRIM0#

main73230-0E080-B0iGVU58;GSU5#..G,M201312-201611

LE PACKAGE,GRAY,TRIM1#

main73230-0E080-B0iGVU58;GSU5#..G,M201312-201611

GRAY,TRIM1#

main73230-0E080-C0iGSU5#,GVU58..M201611

BLACK,TRIM2#,4#

main73230-0E080-C0iGVU58;GSU5#..G,M201312-201611

BLACK,TRIM2#

main73230-0E080-C0iGVU58;GSU5#..G,M201312-201611

LE PACKAGE,BLACK,TRIM2#

main73230-0E090-B0iASU50,GSU5#,GVU58..N201312-201611

GRAY,TRIM1#

main73230-0E090-C0iASU50,GSU5#..N201312-201611

BLACK,TRIM2#

732140E010PLATE, FRONT SEAT BELT ANCHOR

main73214-0E010

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9008017195

main90080-17195

90105A0082

main90105-A0082

90105A0088

main90105-A0088

90105A0186

main90105-A0186

16 parts on this diagram · 4 diagrams in section
