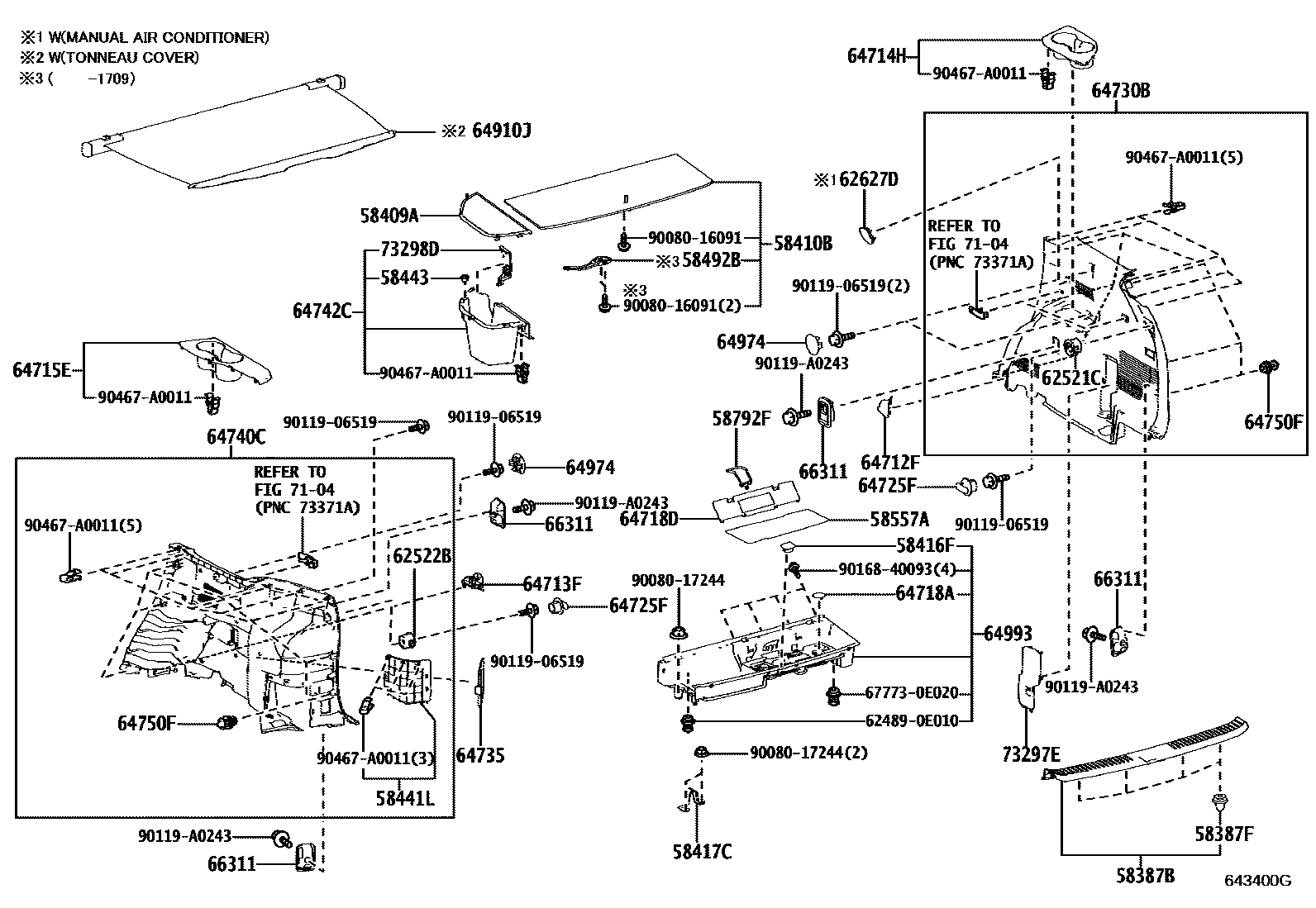

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58387BPLATE, REAR FLOOR FINISH

main58387-0E050-A0iGSU5#,GVU58201312-201611

FLAXEN,TRIM0#

main58387-0E050-B0iASU50,GSU5#,GVU58201312-201611

GRAY,TRIM1#

main58387-0E050-C0iGSU5#,GVU58..G201611

BLACK,TRIM2#,4#

main58387-0E050-C0iASU50,GSU5#,GVU58..M,N201312-201611

BLACK,TRIM2#

58387FCLIP, REAR FLOOR FINISH PLATE

main90467-A0006iASU50,GSU5#,GVU58201312-201611

58409ABOARD SUB-ASSY, DECK, NO.3

main58409-0E040-A1iASU50,GSU5#,GVU58201312-201510

FLAXEN,TRIM0#

sub58409-0E041

main58409-0E040-B1iASU50,GSU5#,GVU58201312-201510

GRAY,TRIM1#

sub58409-0E041

main58409-0E040-C1iASU50,GSU5#,GVU58201312-201510

BLACK,TRIM2#

sub58409-0E041

main58409-0E041-A1iGSU5#;GVU58..G,M201511-201611

FLAXEN,TRIM0#

main58409-0E041-B1iASU50,GSU5#,GVU58201511-201611

GRAY,TRIM1#

main58409-0E041-C1iASU50,GSU5#,GVU58..M,N201511-201611

BLACK,TRIM2#

main58409-0E041-C1iASU50,GSU5#,GVU58..M,N201611

BLACK,TRIM2#,4#

58410BBOARD ASSY, DECK

main58410-0E050-A1iGSU5#,GVU58201312-201709

FLAXEN,TRIM0#

main58410-0E050-B1iASU50,GSU5#,GVU58201312-201709

GRAY,TRIM1#

main58410-0E050-C1iASU50,GSU5#,GVU58..M,N201312-201709

BLACK,TRIM2#

main58410-0E050-C1iASU50,GSU5#,GVU58..M,N201611-201709

BLACK,TRIM2#,4#

main58410-0E051-A1iGSU5#;GVU58..G,M201709

FLAXEN,TRIM0#

main58410-0E051-B1iASU50,GSU5#,GVU58201709

LT.GRAY,TRIM1#

main58410-0E051-C1iASU50,GSU5#,GVU58..M,N201709

BLACK,TRIM2#

main58410-0E051-C1iASU50,GSU5#,GVU58..M,N201709

BLACK,TRIM2#,4#

58416FBRACKET, DECK BOARD, NO.1

main58416-33020-C0iASU50,GSU5#,GVU58201312-201611

BLACK

sub58416-33020

58417CBRACKET, DECK BOARD, NO.1 LH

main58417-0E030iASU50,GSU5#,GVU58201312-201611

58441LCOVER, BATTERY SERVICE HOLE

main58441-0E020-A0iASU50,GSU5#,GVU58201312-201611

FLAXEN,TRIM0#

main58441-0E020-B0iASU50,GSU5#,GVU58201312-201611

GRAY,TRIM1#

main58441-0E020-C0iASU50,GSU5#,GVU58..M,N201611

BLACK,TRIM2#,4#

main58441-0E020-C0iGSU5#,GVU58..G201312-201611

BLACK,TRIM2#

58443CUSHION, DECK BOARD, NO.1

main58443-33010iASU50,GSU5#,GVU58201312-201611

58492BHOOK, DECK BOARD LOCK

main58492-01010iASU50,GSU5#,GVU58201312-201709

58557AMAT, REAR

main58557-0E030iASU50,GSU5#,GVU58201312-201611

58792FSUPPORT, JACK CARRIER

main58792-0E040iASU50,GSU5#,GVU58201312-201611

62521CCOVER, QUARTER TRIM RH

main62521-48020-A2iGSU5#,GVU58201312-201611

FLAXEN,TRIM0#

sub62521-48020

main62521-48020-B2iASU50,GSU5#,GVU58201312-201611

GRAY,TRIM1#

sub62521-48020

main62521-48020-C0iASU50,GSU5#,GVU58..M,N201611

BLACK,TRIM2#,4#

sub62521-48020

main62521-48020-C0iGSU5#,GVU58..G201312-201611

BLACK,TRIM2#

sub62521-48020

62522BCOVER, QUARTER TRIM LH

main62521-48020iASU50,GSU5#,GVU58201312-201611

main62521-48020-A2iGSU5#,GVU58201611

FLAXEN,TRIM0#

sub62521-48020

main62521-48020-B2iASU50,GSU5#,GVU58201611

GRAY,TRIM1#

sub62521-48020

main62521-48020-C0iGSU5#,GVU58..G201611

BLACK,TRIM2#

sub62521-48020

main62521-48020-C0iGSU5#,GVU58..G201611

BLACK,TRIM2#,4#

sub62521-48020

62627DCOVER, SIDE TRIM, RH

main62627-0E040-B0iASU50,GSU5#..N201312-201611

GRAY,TRIM1#

main62627-0E040-C0iASU50,GSU5#..N201312-201611

BLACK,TRIM2#

64712FCOVER, DECK SIDE TRIM, FRONT RH

main64712-0E030-A0iGSU5#,GVU58201312-201611

FLAXEN,TRIM0#

main64712-0E030-B0iASU50,GSU5#,GVU58201312-201611

GRAY,TRIM1#

main64712-0E030-C0iGSU5#,GVU58..G201312-201611

BLACK,TRIM2#

main64712-0E030-C0iGSU5#,GVU58..G201611

BLACK,TRIM2#,4#

64713FCOVER, DECK SIDE TRIM, FRONT LH

main64713-0E030-A0iGSU5#,GVU58201312-201611

FLAXEN,TRIM0#

main64713-0E030-B0iASU50,GSU5#,GVU58201312-201611

GRAY,TRIM1#

main64713-0E030-C0iASU50,GSU5#,GVU58201312-201611

BLACK,TRIM2#

main64713-0E030-C0iASU50,GSU5#,GVU58..M,N201611

BLACK,TRIM2#,4#

64714HCOVER, DECK SIDE TRIM, NO.1

main64714-0E060-A0iASU50,GSU5#,GVU58201312-201611

FLAXEN,TRIM0#

main64714-0E060-B0iASU50,GSU5#,GVU58201312-201611

GRAY,TRIM1#

main64714-0E060-C0iGSU5#,GVU58..G201611

BLACK,TRIM2#,4#

main64714-0E060-C0iASU50,GSU5#,GVU58201312-201611

BLACK,TRIM2#

64715ECOVER, DECK SIDE TRIM, NO.2

main64715-0E060-A0iGSU5#,GVU58201312-201611

FLAXEN,TRIM0#

main64715-0E060-B0iASU50,GSU5#,GVU58201312-201611

GRAY,TRIM1#

main64715-0E060-C0iGSU5#,GVU58..G201611

BLACK,TRIM2#,4#

main64715-0E060-C0iASU50,GSU5#,GVU58..M,N201312-201611

BLACK,TRIM2#

64718ACOVER, DECK TRIM SERVICE HOLE

main64718-48010iASU50,GSU5#,GVU58201312-201611

64718DCOVER, DECK TRIM SERVICE HOLE

main64718-0E050iASU50,GSU5#,GVU58201312-201611

64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-48020-A1iGVU58;GSU5#..G,M201312-201611

FRONT AIR CONDITIONER-AUTO,FLAXEN,TRIM0#

main64725-48020-A1iGVU58;GSU5#..G,M201312-201611

FLAXEN,TRIM0#

main64725-48020-A1iGVU58;GSU5#..G,M201611

LE PACKAGE,FLAXEN,TRIM0#

main64725-48020-B1iASU50,GSU5#,GVU58201312-201611

GRAY,TRIM1#

main64725-48020-C0iASU50,GSU5#,GVU58..M,N201312-201807

BLACK,TRIM2#

main64725-48020-C0iASU50,GSU5#,GVU58..M,N201611-201807

BLACK,TRIM2#,4#

main64725-48020-C1iASU50,GSU5#,GVU58..M,N201807

BLACK,TRIM2#

main64725-48020-C1iASU50,GSU5#,GVU58..M,N201807

BLACK,TRIM2#,4#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0E070-A0iASU50,GSU5#,GVU58201312-201611

FLAXEN,TRIM0#

main64730-0E070-B0iASU50,GSU5#,GVU58201312-201611

GRAY,TRIM1#

main64730-0E070-C0iGSU5#,GVU58..G201312-201611

BLACK,TRIM2#

main64730-0E070-C0iGSU5#,GVU58..G201611

BLACK,TRIM2#,4#

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-0E010-A0iGSU5#..N201611

LE PACKAGE,FLAXEN,TRIM0#

main64735-0E010-A0iGVU58;GSU5#..G,M201312-201611

FLAXEN,TRIM0#

main64735-0E010-A0iGVU58;GSU5#..G,M201312-201611

FRONT AIR CONDITIONER-AUTO,FLAXEN,TRIM0#

main64735-0E010-B0iASU50,GSU5#,GVU58201312-201611

GRAY,TRIM1#

main64735-0E010-C0iASU50,GSU5#,GVU58201312-201611

BLACK,TRIM2#

main64735-0E010-C0iASU50,GSU5#,GVU58..M,N201611

BLACK,TRIM2#,4#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0E070-A0iASU50,GSU5#,GVU58201312-201611

FLAXEN,TRIM0#

main64740-0E070-B0iASU50,GSU5#,GVU58201312-201611

GRAY,TRIM1#

main64740-0E070-C0iASU50,GSU5#,GVU58201312-201611

BLACK,TRIM2#

main64740-0E070-C0iASU50,GSU5#,GVU58..M,N201611

BLACK,TRIM2#,4#

64742CBOX, DECK SIDE TRIM, LH

main64742-0E030iASU50,GSU5#201312-201611

main64742-0E060iGVU58201401-201611

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main62489-0E010iASU50,GSU5#,GVU58201312-201611

64910JCOVER ASSY, TONNEAU

main64910-0E080-A0iGSU55,GVU58..G201611-201911

CANADA,FLAXEN,TRIM0#

main64910-0E080-A0iGSU5#,GVU58..G201611-201911

FLAXEN,TRIM0#

main64910-0E080-B0iGSU5#,GVU58..G201611-201911

GRAY,TRIM1#

main64910-0E080-B0iGSU5#,GVU58..G201611-201911

CANADA,GRAY,TRIM1#

main64910-0E080-C0iGSU5#,GVU58..G201611-201911

BLACK,TRIM2#,4#

main64910-0E080-C0iGSU5#,GVU58..G201611-201911

CANADA,BLACK,TRIM2#,4#

64974COVER, DECK TRIM POCKET

main64974-0E010-A0iGSU5#..N201611

LE PACKAGE,FLAXEN,TRIM0#

main64974-0E010-A0iGVU58;GSU5#..G,M201312-201611

FLAXEN,TRIM0#

main64974-0E010-A0iGVU58;GSU5#..G,M201312-201611

FRONT AIR CONDITIONER-AUTO,FLAXEN,TRIM0#

main64974-0E010-B0iASU50,GSU5#,GVU58201312-201611

GRAY,TRIM1#

main64974-0E010-C0iASU50,GSU5#,GVU58..M,N201312-201611

BLACK,TRIM2#

main64974-0E010-C0iASU50,GSU5#,GVU58..M,N201611

BLACK,TRIM2#,4#

64993BOX, DECK FLOOR, REAR

main64993-0E110iASU50,GSU5#,GVU58201312-201611

66311HOOK, ROPE

main66311-0E010-A0iGSU5#,GVU58201312-201611

FLAXEN,TRIM0#

main66311-0E010-B0iASU50,GSU5#,GVU58201312-201611

GRAY,TRIM1#

main66311-0E010-C0iASU50,GSU5#,GVU58..M,N201312-201611

BLACK,TRIM2#

main66311-0E010-C0iASU50,GSU5#,GVU58..M,N201611

BLACK,TRIM2#,4#

7104

73297ECOVER, DECK TRIM SIDE BELT HOLE, RH

main73297-0E010-A0iASU50,GSU5#,GVU58201312-201611

FLAXEN,TRIM0#

main73297-0E010-B0iASU50,GSU5#,GVU58201312-201611

GRAY,TRIM1#

main73297-0E010-C0iASU50,GSU5#,GVU58..M,N201611

BLACK,TRIM2#,4#

main73297-0E010-C0iGSU5#,GVU58..G201312-201611

BLACK,TRIM2#

73298DCOVER,DECK TRIM SIDE BELT HOLE, LH

main73298-0E010-C0iASU50,GSU5#,GVU58201312-201611

BLACK

624890E010CLIP, MAP LAMP RETAINER

main62489-0E010

677730E020

main67773-0E020

9008016091

main90080-16091

9008017244

main90080-17244

9011906519

main90119-06519

90119A0243

main90119-A0243

9016840093

main90168-40093

90467A0011

main90467-A0011

41 parts on this diagram · 2 diagrams in section
