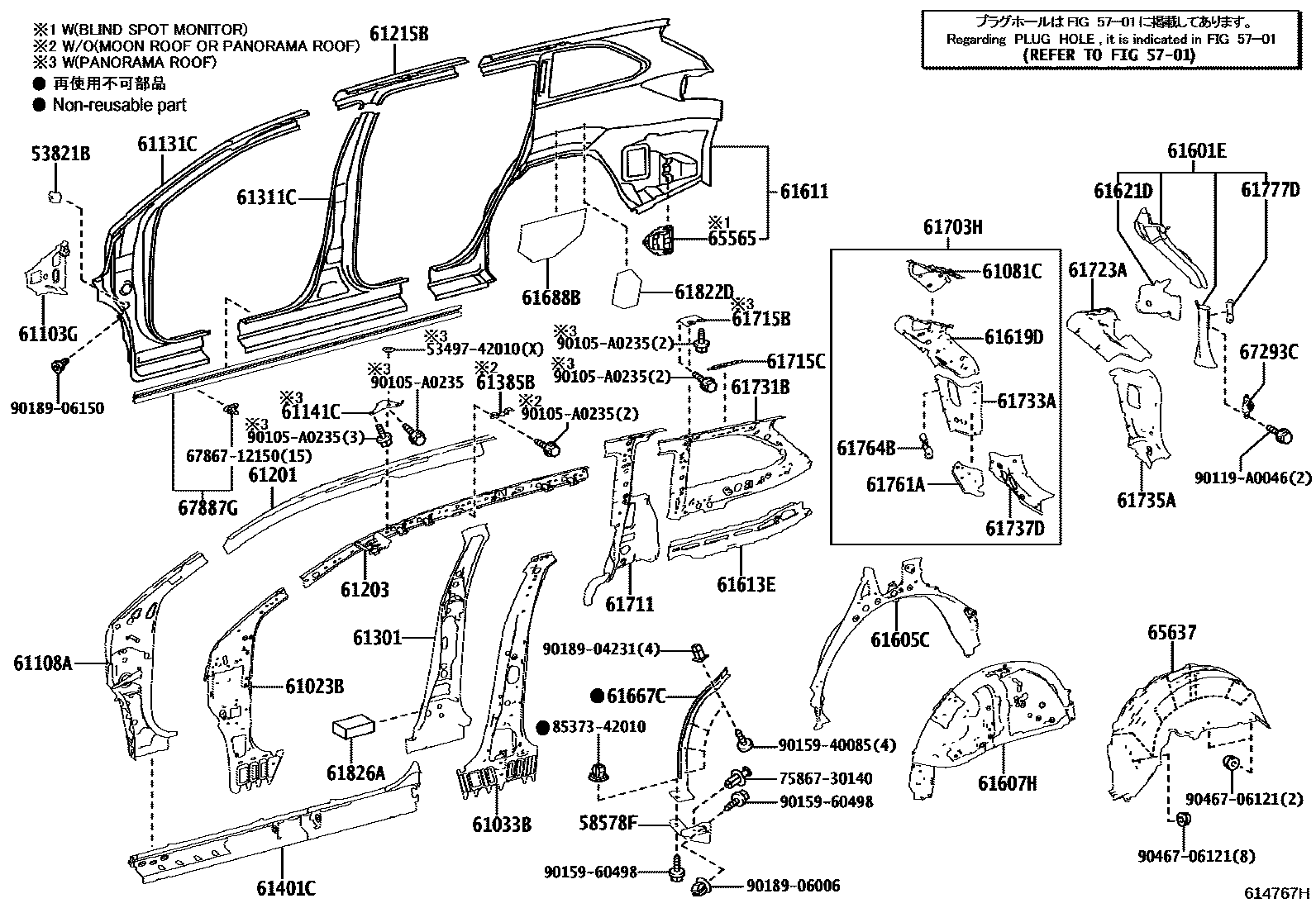

SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
5701
58578FPAD, REAR WHEEL HOUSE, RH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61033BPILLAR SUB-ASSY, NO.2 INNER, RH
61081CREINFORCE, ROOF SIDE, INNER RH
61103GGUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131CPILLAR, FRONT BODY, OUTER RH
61141CEXTENSION, FRONT PILLAR, UPPER INNER RH
CANADA
USA POSSESSION&PLATINUM PACKAGE&SATELLITE RADIO-W/O
PLATINUM PACKAGE
MOON ROOF-WITH(PANORAMA ROOF)
MOON ROOF-WITH(PANORAMA ROOF)&SATELLITE RADIO-W/O
HAWAII&PLATINUM PACKAGE&SATELLITE RADIO-W/O
MOON ROOF-WITH(PANORAMA ROOF)&SATELLITE RADIO-WITHOUT
61201RAIL SUB-ASSY, ROOF SIDE, RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61215BRAIL, ROOF SIDE, OUTER NO.3 RH
61301PILLAR SUB-ASSY, CENTER BODY, RH
61311CPANEL, REAR BODY FRONT OUTSIDE, RH
61385BEXTENSION, CENTER BODY PILLAR, INNER RH
61401CPANEL SUB-ASSY, ROCKER, OUTER RH
61601EPANEL SUB-ASSY, QUARTER, OUTER RH
61605CPANEL SUB-ASSY, QUATER, REAR INNER RH
61607HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH
61611PANEL, QUARTER, RH
61613EPANEL, QUARTER, INNER RH
61619DREINFORCEMENT, QUARTER PANEL, RH
61621DTROUGH, BACK DOOR OPENING, RH
61667CSEAL, QAURTER PANEL, NO.1
61688BLINING, QUARTER PANEL REINFORCEMENT, RH
61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH
61711PANEL, ROOF SIDE, OUTER RH
61715BEXTENSION, ROOF SIDE, INNER FRONT RH
MOON ROOF-WITH(PANORAMA ROOF)
MOON ROOF-WITH(PANORAMA ROOF)&SATELLITE RADIO-WITHOUT
HAWAII&PLATINUM PACKAGE&SATELLITE RADIO-W/O
CANADA
USA POSSESSION&PLATINUM PACKAGE&SATELLITE RADIO-W/O
PLATINUM PACKAGE
MOON ROOF-WITH(PANORAMA ROOF)&SATELLITE RADIO-W/O
61715CBRACKET, ROOF SIDE, RH
61723AREINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1
61731BPANEL, ROOF SIDE, INNER RH
61733APANEL, ROOF SIDE, INNER FRONT RH
61735APANEL, ROOF SIDE, INNER REAR RH
61737DREINFORCEMENT, ROOF SIDE, INNER RH
61761AREINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH
61764BREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH
61777DRETAINER, BACK DOOR SIDE STOPPER, RH
61822DPLATE, NOISE CONTROL, LH
61826APLATE, NOISE CONTROL, NO.3
65565PATCH, SIDE PANEL REAR END, RH
LE PACKAGE
65637LINER, REAR WHEEL HOUSE, RH
67293CCUSHION, BACK DOOR STOPPER
67887GWEATHERSTRIP, ROCKER OUTER, RH
5349742010PAD, HOOD HINGE, NO.1
main53497-42010
6786712150CLIP, DOOR WEATHERSTRIP
main67867-12150
7586730140MOULDING, FRONT PANEL
main75867-30140
8537342010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main85373-42010
90105A0235
main90105-A0235
90119A0046
main90119-A0046
9015940085
main90159-40085
9015960498
main90159-60498
9018904231
main90189-04231
9018906006
main90189-06006
9018906150
main90189-06150
9046706121
main90467-06121
56 parts on this diagram · 2 diagrams in section
