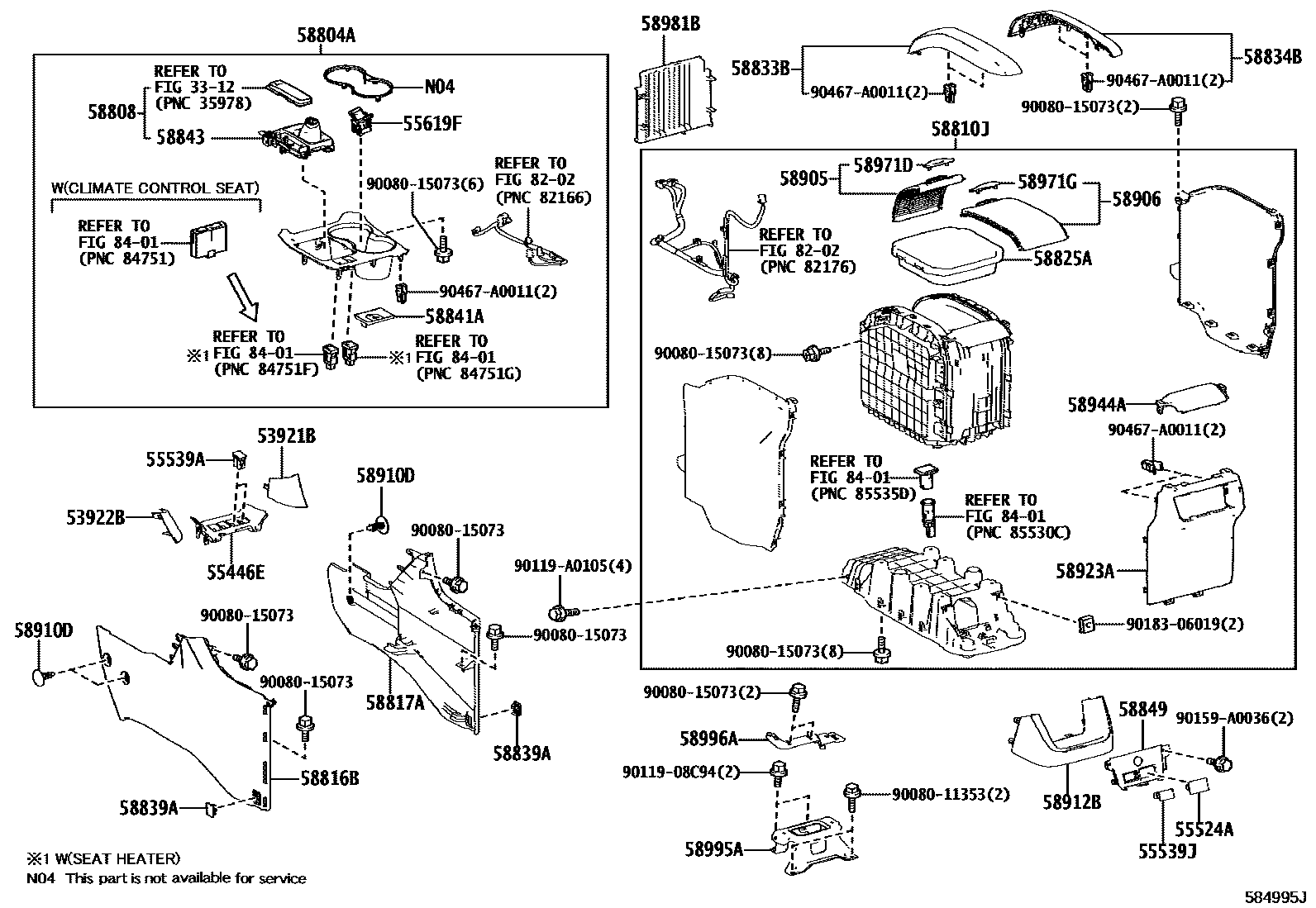

CONSOLE BOX & BRACKET
3312
53921BGARNISH, FRONT PANEL, RH
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,4#
53922BGARNISH, FRONT PANEL, LH
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
55446EBASE, SWITCH HOLE, NO.1
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM1#,2#
55524ACOVER, SWITCH BASE HOLE
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#
TELEVISION & DVD PLAYER-WITH,BLACK,TRIM0#,1#,2#,4#
TELEVISION & DVD PLAYER-WITH,BLACK,TRIM0#,1#,2#
55539ACOVER, SPARE SWITCH HOLE
55539JCOVER, SPARE SWITCH HOLE
BLACK,TRIM0#,1#,2#
ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1,BLACK,TRIM0#,1#,2#
TELEVISION & DVD PLAYER-WITH,BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1,BLACK,TRIM0#,1#,2#
TELEVISION & DVD PLAYER-WITH,BLACK,TRIM0#,1#,2#
ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),BLACK,TRIM0#,1#,2#,4#
ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),BLACK,TRIM0#,1#,2#
55619FHOLDER, CONSOLE BOX CUP, NO.2
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#
SE PACKAGE,BLACK,TRIM2#
SPECIAL EDITION,BLACK,TRIM2#
58804APANEL SUB-ASSY, CONSOLE, UPPER
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
SEAT HEATER-WITH(*DRP),BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
SEAT HEATER-WITH(*DRP),BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
LE PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,1#,2#
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,4#
SPECIAL EDITION,BLACK,TRIM2#
SE PACKAGE,BLACK,TRIM2#
BLACK,TRIM1#,2#
58810JBOX ASSY, CONSOLE
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1&TELEVISION & DVD PLAYER-WITH,FLAXEN,TRIM0#
ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1,FLAXEN,TRIM0#
TELEVISION & DVD PLAYER-WITH,FLAXEN,TRIM0#
ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1,GRAY,TRIM1#
TELEVISION & DVD PLAYER-WITH,GRAY,TRIM1#
ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1&TELEVISION & DVD PLAYER-WITH,GRAY,TRIM1#
ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1,BLACK,TRIM2#
TELEVISION & DVD PLAYER-WITH,BLACK,TRIM2#
ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1&TELEVISION & DVD PLAYER-WITH,BLACK,TRIM2#
ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1,FLAXEN,TRIM0#
TELEVISION & DVD PLAYER-WITH,FLAXEN,TRIM0#
ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1&TELEVISION & DVD PLAYER-WITH,FLAXEN,TRIM0#
ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1&TELEVISION & DVD PLAYER-WITH,GRAY,TRIM1#
TELEVISION & DVD PLAYER-WITH,GRAY,TRIM1#
ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1,GRAY,TRIM1#
ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1,BLACK,TRIM2#
TELEVISION & DVD PLAYER-WITH,BLACK,TRIM2#
ACCESSORY CONNECTOR(NO.2)-WITH(120V,100W)RR1&TELEVISION & DVD PLAYER-WITH,BLACK,TRIM2#
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
TELEVISION & DVD PLAYER-WITH,FLAXEN,TRIM0#
ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB)&TELEVISION & DVD PLAYER-WITH,FLAXEN,TRIM0#
ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),FLAXEN,TRIM0#
ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),GRAY,TRIM1#
TELEVISION & DVD PLAYER-WITH,GRAY,TRIM1#
ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB)&TELEVISION & DVD PLAYER-WITH,GRAY,TRIM1#
ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB)&TELEVISION & DVD PLAYER-WITH,BLACK,TRIM2#,4#
ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),BLACK,TRIM2#,4#
ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),BLACK,TRIM2#
ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB)&TELEVISION & DVD PLAYER-WITH,BLACK,TRIM2#
TELEVISION & DVD PLAYER-WITH,BLACK,TRIM2#,4#
TELEVISION & DVD PLAYER-WITH,BLACK,TRIM2#
CANADA&ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),FLAXEN,TRIM0#
PLATINUM PACKAGE&ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),FLAXEN,TRIM0#
SEAT HEATER-WITH(*DRP & REAR CAPTAIN SEAT)&ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),FLAXEN,TRIM0#
SEAT HEATER-WITH(*DRP & REAR BENCH SEAT)&ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),FLAXEN,TRIM0#
CANADA&ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),GRAY,TRIM1#
PLATINUM PACKAGE&ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),GRAY,TRIM1#
SEAT HEATER-WITH(*DRP & REAR CAPTAIN SEAT)&ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),GRAY,TRIM1#
SEAT HEATER-WITH(*DRP & REAR BENCH SEAT)&ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),GRAY,TRIM1#
PLATINUM PACKAGE&ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),BLACK,TRIM2#,4#
CANADA&ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),BLACK,TRIM2#,4#
SEAT HEATER-WITH(*DRP & REAR CAPTAIN SEAT)&ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),BLACK,TRIM2#,4#
SEAT HEATER-WITH(*DRP & REAR BENCH SEAT)&ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),BLACK,TRIM2#,4#
ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),FLAXEN,TRIM0#
ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),GRAY,TRIM1#
ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),BLACK,TRIM2#
ACCESSORY CONNECTOR(NO.2)-WITH(120V+2USB),BLACK,TRIM2#,4#
58816BINSERT, CONSOLE BOX
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
58817AINSERT, CONSOLE BOX, FRONT NO.2
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
58825APOCKET, CONSOLE BOX
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#,4#
BLACK,TRIM2#
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#,4#
BLACK,TRIM2#
58839ACOVER, CONSOLE BOX HOLE
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#,4#
BLACK,TRIM2#
58841ACOVER, SHIFTING HOLE
58843BEZEL, SHIFTING HOLE
SE PACKAGE
SPECIAL EDITION
58849COVER, CONSOLE BOX HOLE, NO.2
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#,4#
BLACK,TRIM2#
58906DOOR SUB-ASSY, UPPER CONSOLE
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#,4#
BLACK,TRIM2#
58910DCLIP(FOR CONSOLE BOX)
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
58912BBOX, REAR CONSOLE, LOWER
FLAXEN,TRIM0#
FLAXEN,TRIM00
GRAY,TRIM1#
GRAY,TRIM10
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM00,10,2#
58923APANEL, CONSOLE REAR END
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#,4#
BLACK,TRIM2#
58944ACOVER, CONSOLE, REAR
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#,4#
BLACK,TRIM2#
58971DLEVER, CONSOLE COMPARTMENT DOOR LOCK
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#,4#
BLACK,TRIM2#
58971GLEVER, CONSOLE COMPARTMENT DOOR LOCK, NO.2
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
58981BRETAINER, CONSOLE MOUNTING, NO.1
TRIM00
TRIM10
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM00,10,2#
BLACK,TRIM1#,2#
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8202
8401
9008011353
main90080-11353
9008015073
main90080-15073
9011908C94
main90119-08C94
90119A0105
main90119-A0105
90159A0036
main90159-A0036
9018306019
main90183-06019
90467A0011
main90467-A0011
40 parts on this diagram · 2 diagrams in section
