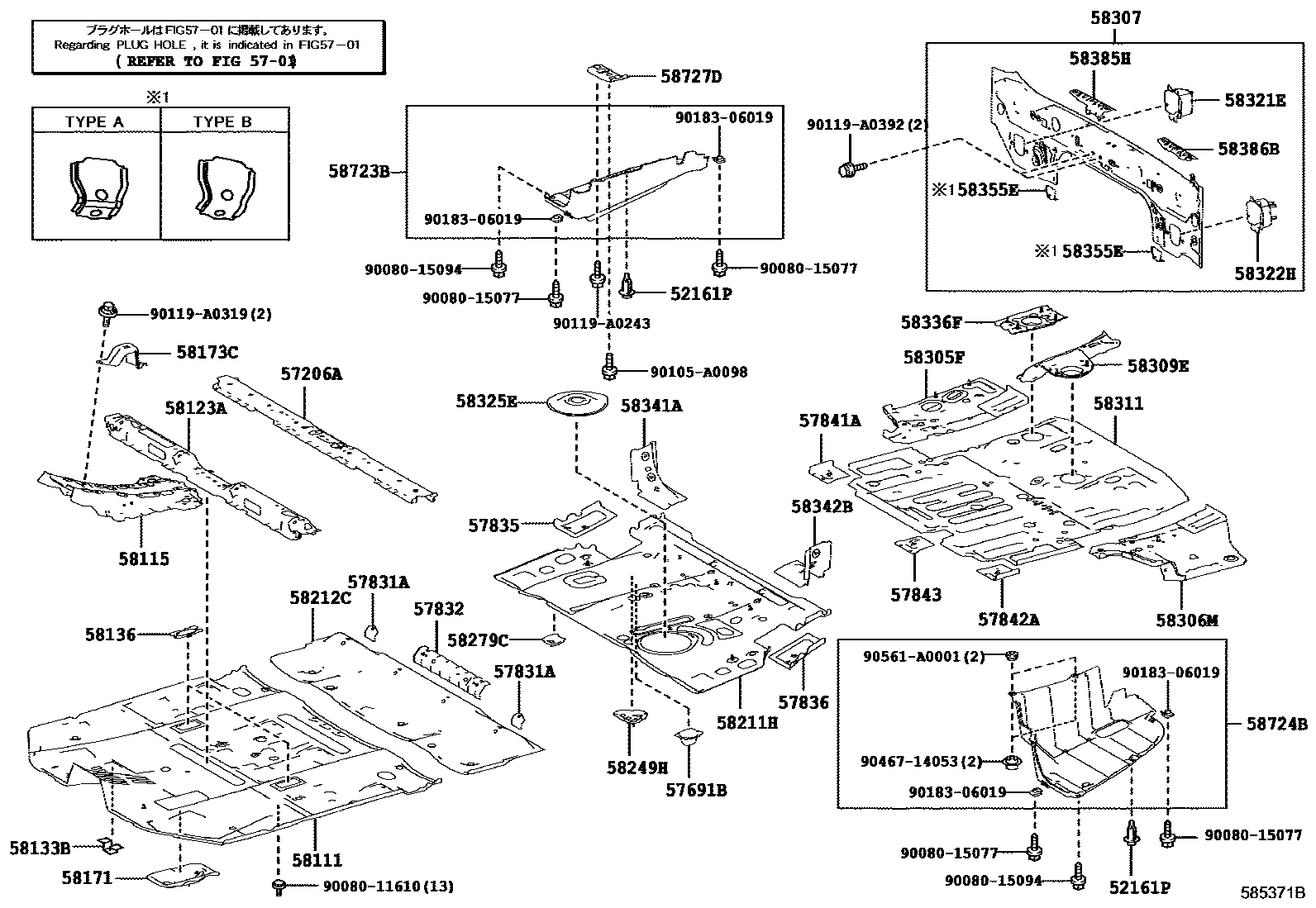

FLOOR PAN & LOWER BACK PANEL
52161PPIECE, REAR BUMPER
5701
57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57691BBRACKET, FUEL TANK MOUNTING, FRONT CENTER
57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
57841AREINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH
57842AREINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH
57843REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.5
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58123ASUPPORT, SHIFT & SELECT LEVER
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58173CBRACKET, WIRING HARNESS PROTECTOR
58211HPAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58249HBRACKET, CENTER FLOOR BOARD SUPPORT
58279CPROTECTOR, FUEL TANK, UPPER NO.2
58307PANEL SUB-ASSY, BODY LOWER BACK
58309EPLATE SUB-ASSY, REAR FLOOR
58311PAN, REAR FLOOR
58321EPLATE, REAR BUMPER ARM SUPPORT, RH
58322HPLATE, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336FREINFORCEMENT, REAR FLOOR PAN, RH
58341ABRACKET, REAR ABSORBER MOUNTING, RH
58342BBRACKET, REAR ABSORBER MOUNTING, LH
58355EBRACKET, REAR BUMPER ARM, RH
TYPE A
TYPE B
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
58723BPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1
58724BPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2
58727DPLATE, ENGINE SERVICE COVER, NO.1
9008011610
main90080-11610
9008015077
main90080-15077
9008015094
main90080-15094
90105A0098
main90105-A0098
90119A0243
main90119-A0243
90119A0319
main90119-A0319
90119A0392
main90119-A0392
9018306019
main90183-06019
9046714053
main90467-14053
90561A0001
main90561-A0001
49 parts on this diagram · 6 diagrams in section
