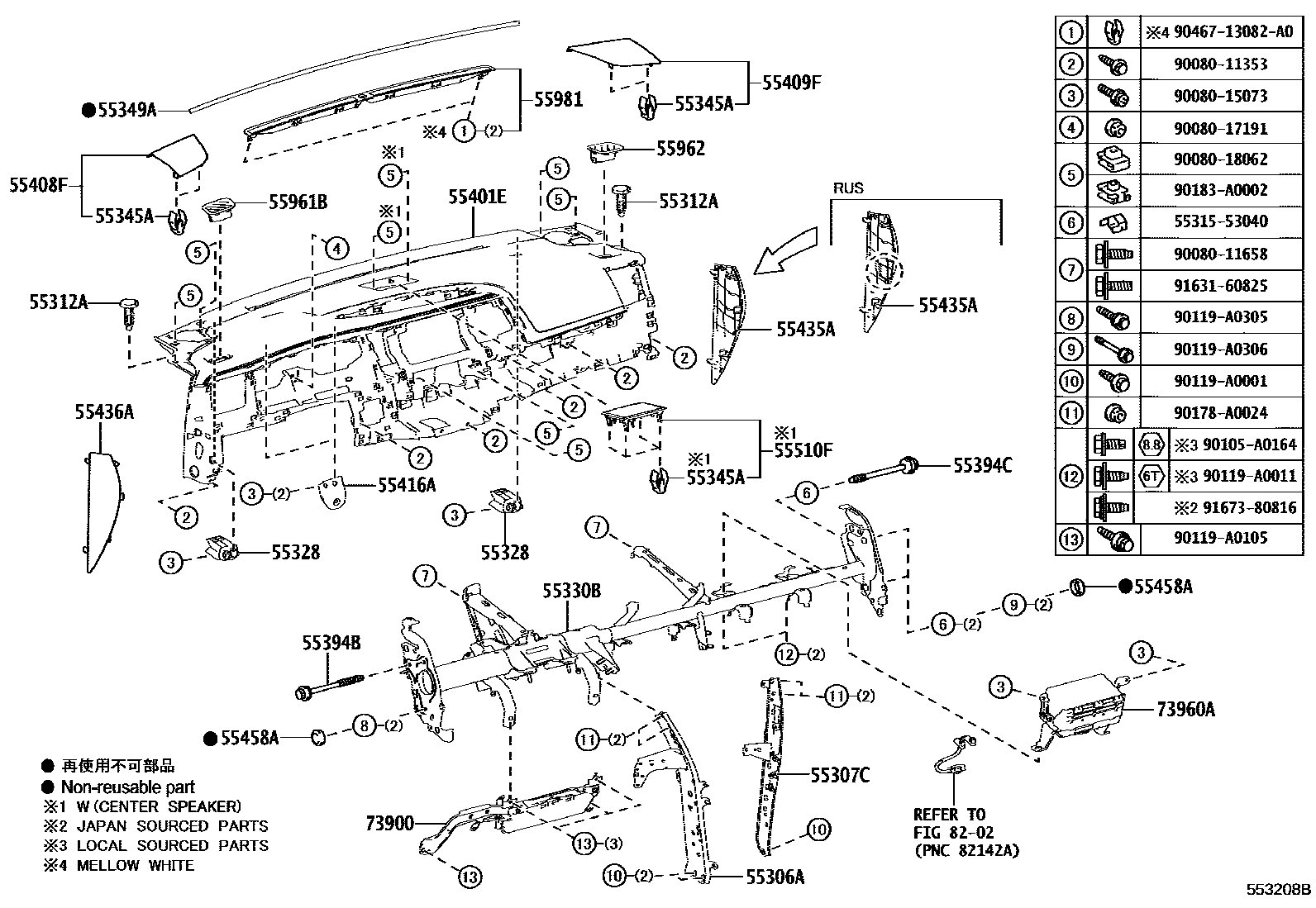

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER SIDE 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE 0009 1DRIVER SIDE 0010 1CENTER 0011 1PASSENGER SIDE 0012 1*DRS W(INTERIOR ILLUMINATION 0013 1*CTR W(INTERIOR ILLUMINATION 0014 1*PAS W(INTERIOR ILLUMINATION

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0E060iASU50,GSU5#,GVU58201312-201611

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0E060iASU50,GSU5#,GVU58201312-201611

55312ACLIP, INSTRUMENT PANEL

main52161-02020iASU50,GSU5#,GVU58201408-201611

main52161-16010iASU50,GSU5#,GVU58201312-201407

sub52161-0K040

55328PIN, INSTRUMENT PANEL, NO.1

main55328-0E060iASU50,GSU5#,GVU58201312-201611

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0E060iASU50,GSU5#,GVU58201312-201611

main55330-0E100iASU50,GSU5#,GVU58201611-201808

sub55330-0E190

main55330-0E190iASU50,GSU5#,GVU58201809

55345ACLIP, INSTRUMENT PANEL, NO.1

main90467-13082-A0iGSU5#,GVU58..G201312-201611

AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),MELLOW WHITE

sub90467-13082

main90467-13082-A0iASU50,GSU5#,GVU58201312-201611

MELLOW WHITE

sub90467-13082

main90467-13082-A0iASU50,GSU5#,GVU58201312-201611

AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),MELLOW WHITE

sub90467-13082

main90467-13082-A0iASU50,GSU5#,GVU58201611

AUDIO-8INCH DA 6SPEAKER W(NIS),MELLOW WHITE

sub90467-13082

55349ACUSHION, INSTRUMENT PANEL

main55349-0E020iASU50,GSU5#,GVU58201312-201611

55394BBOLT, INSTRUMENT PANEL

main55394-08060iASU50,GSU5#,GVU58201312-201611

55394CBOLT, INSTRUMENT PANEL

main55394-08070iASU50,GSU5#,GVU58201312-201611

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-0E040-C0iASU50201611

BLACK,TRIM1#,2#

main55401-0E040-C0iASU50,GSU5#,GVU58..M,N201312-201611

BLACK,TRIM0#,1#,2#

main55401-0E050-C0iGSU5#,GVU58..G201312-201611

BLACK,TRIM0#,1#,2#

main55401-0E050-C0iGSU5#,GVU58..G201611

BLACK,TRIM0#,1#,2#,4#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-0E050-C0iASU50201312-201611

BLACK,TRIM0#,1#,2#

main55472-0E050-C0iGSU5#,GVU58..G201611

BLACK,TRIM1#,2#

main55472-0E050-C0iGSU5#,GVU58..G201611

BLACK,TRIM0#,1#,2#,4#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-0E050-C0iGSU5#,GVU58..M,N201611

BLACK,TRIM0#,1#,2#,4#

main55473-0E050-C0iASU50,GSU5#,GVU58201312-201611

BLACK,TRIM0#,1#,2#

main55473-0E050-C0iASU50201611

BLACK,TRIM1#,2#

55416ARETAINER, METER HOOD, NO.1

main55416-0E030iASU50,GSU5#,GVU58201312-201611

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-0E050-A0iGSU5#,GVU58201312-201611

FLAXEN,TRIM0#

main55435-0E050-B0iASU50,GSU5#,GVU58201312-201611

GRAY,TRIM1#

main55435-0E050-C0iASU50,GSU5#,GVU58201312-201611

BLACK,TRIM2#

main55435-0E050-C0iASU50,GSU5#,GVU58..M,N201611

BLACK,TRIM2#,4#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-0E070-A0iASU50,GSU5#,GVU58201312-201611

FLAXEN,TRIM0#

main55436-0E070-B0iASU50,GSU5#,GVU58201312-201611

GRAY,TRIM1#

main55436-0E070-C0iGSU5#,GVU58..G201312-201611

BLACK,TRIM2#

main55436-0E070-C0iASU50,GSU5#,GVU58..M,N201611

BLACK,TRIM2#,4#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110iASU50,GSU5#,GVU58201312-201611

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55475-0E050-C0iGSU5#,GVU58..G201312-201611

BLACK,TRIM0#,1#,2#

main55475-0E050-C0iGSU5#,GVU58..G201312-201611

AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM0#,1#,2#

main55475-0E050-C0iGSU5#,GVU58..G201312-201611

AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM),BLACK,TRIM0#,1#,2#

main55475-0E050-C0iGSU5#,GVU58..G201611

BLACK,TRIM0#,1#,2#,4#

main55475-0E050-C0iGSU5#,GVU58..G201611

AUDIO-8INCH DA 6SPEAKER W(NIS),BLACK,TRIM0#,1#,2#,4#

55961BNOZZLE, SIDE DEFROSTER, NO.1

main55961-0E030-C0iGSU5#,GVU58..G201312-201611

BLACK,TRIM0#,1#,2#

main55961-0E030-C0iASU50201611

BLACK,TRIM1#,2#

main55961-0E030-C0iASU50201611

BLACK,TRIM0#,1#,2#,4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-0E030-C0iGSU5#,GVU58..M,N201312-201611

BLACK,TRIM0#,1#,2#

main55962-0E030-C0iASU50201611

BLACK,TRIM1#,2#

main55962-0E030-C0iASU50201611

BLACK,TRIM0#,1#,2#,4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-0E040-C0iGSU5#,GVU58..M,N201611

BLACK,TRIM1#,2#

main55981-0E040-C0iASU50,GSU5#,GVU58201312-201611

BLACK,TRIM0#,1#,2#

main55981-0E040-C0iASU50201611

BLACK,TRIM0#,1#,2#,4#

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-0E050-A0iGSU5#,GVU58201312-201611

FLAXEN,TRIM0#

main73900-0E050-B0iASU50,GSU5#,GVU58201312-201611

GRAY,TRIM1#

main73900-0E050-C0iGSU5#,GVU58..G201611

BLACK,TRIM2#,4#

main73900-0E050-C0iASU50,GSU5#,GVU58201312-201611

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0E060iASU50,GSU5#,GVU58201312-201611

8202

5531553040SUPPORT, INSTRUMENT PANEL

main55315-53040

9008011353

main90080-11353

9008011658

main90080-11658

9008015073

main90080-15073

9008017191

main90080-17191

9008018062

main90080-18062

90105A0164

main90105-A0164

90119A0001

main90119-A0001

90119A0011

main90119-A0011

90119A0105

main90119-A0105

90119A0305

main90119-A0305

90119A0306

main90119-A0306

90178A0024

main90178-A0024

90183A0002

main90183-A0002

9046713082A0

main90467-13082A0

9163160825

main91631-60825

9167380816

main91673-80816

40 parts on this diagram · 14 diagrams in section
