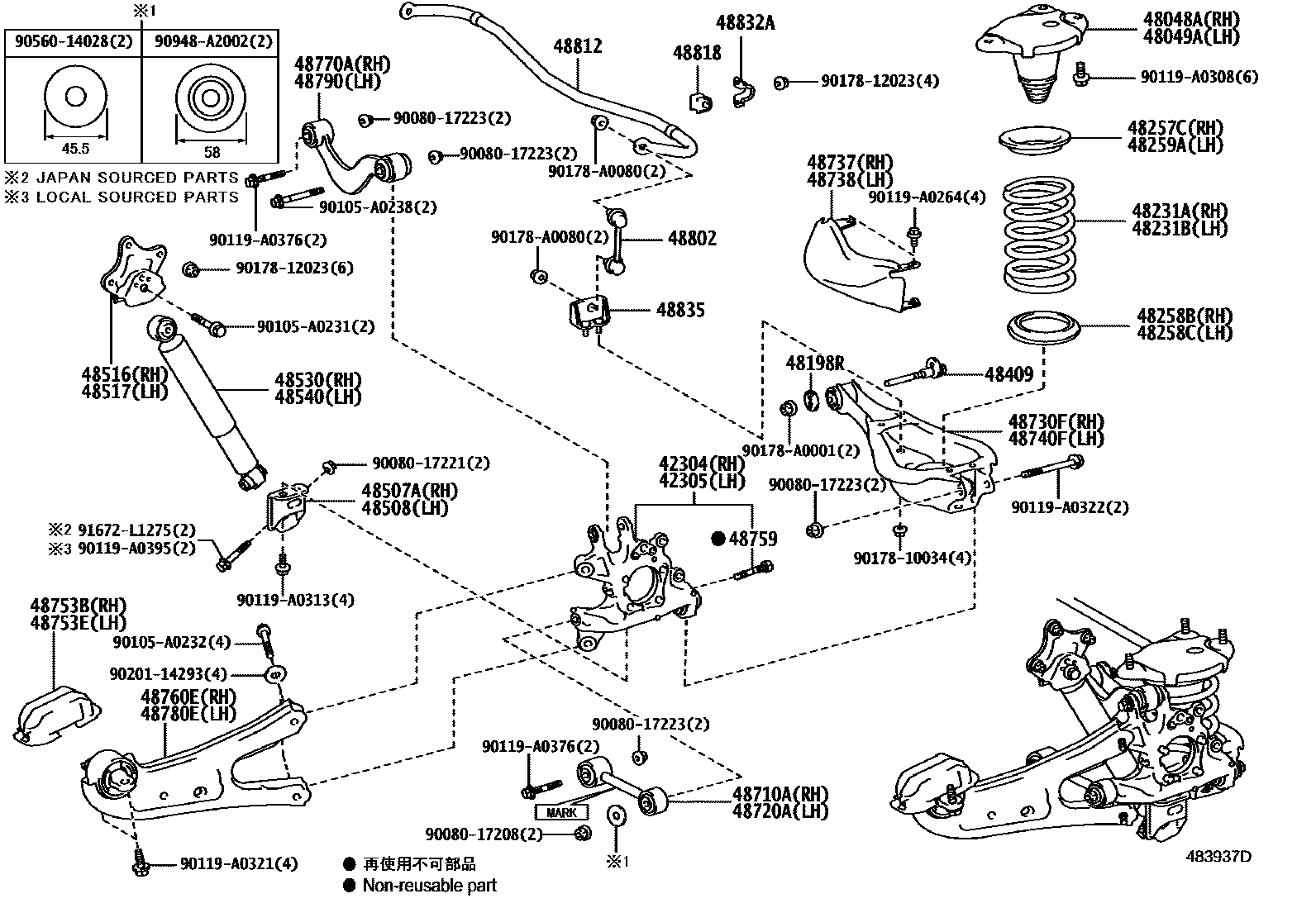

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48048ASEAT SUB-ASSY, SPRING, RH
48049ASEAT SUB-ASSY, SPRING, LH
48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48231ASPRING, COIL, REAR RH
SE PACKAGE
SPECIAL EDITION
SPECIAL EDITION
SE PACKAGE
48231BSPRING, COIL, REAR LH
SPECIAL EDITION
SE PACKAGE
SE PACKAGE
SPECIAL EDITION
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48507ABRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER RH
48508BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER LH
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48531-0E060
MARK 48531-0E070
MARK 48531-0E100
MARK 48531-0E110
MARK 48531-0E280
MARK 48531-0E290
MARK 48531-0E300,SPECIAL EDITION
MARK 48531-0E300,SE PACKAGE
MARK 48531-0E310,SE PACKAGE
MARK 48531-0E310,SPECIAL EDITION
MARK 48531-0E320
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48531-0E060
MARK 48531-0E070
MARK 48531-0E100
MARK 48531-0E110
MARK 48531-0E280
MARK 48531-0E290
MARK 48531-0E300,SPECIAL EDITION
MARK 48531-0E300,SE PACKAGE
MARK 48531-0E310,SE PACKAGE
MARK 48531-0E310,SPECIAL EDITION
MARK 48531-0E320
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
NO MARK
MARK=48710-0E060
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
NO MARK
MARK=48710-0E060
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48737COVER, REAR SUSPENSION ARM, RH
48738COVER, REAR SUSPENSION ARM, LH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753ECOVER, REAR SUSPENSION SUPOPORT, NO.2 LH
48759PIN, LOWER CONTROL ARM
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48802LINK SUB-ASSY, STABILIZER
RH
LH
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48832ABRACKET, REAR STABILIZER BAR, NO.1
48835BRACKET, REAR STABILIZER, LOWER
LH
9008017208
main90080-17208
9008017221
main90080-17221
9008017223
main90080-17223
90105A0231
main90105-A0231
90105A0232
main90105-A0232
90105A0238
main90105-A0238
90119A0264
main90119-A0264
90119A0308
main90119-A0308
90119A0313
main90119-A0313
90119A0321
main90119-A0321
90119A0322
main90119-A0322
90119A0376
main90119-A0376
90119A0395
main90119-A0395
9017810034
main90178-10034
9017812023
main90178-12023
90178A0001
main90178-A0001
90178A0080
main90178-A0080
9020114293
main90201-14293
9056014028
main90560-14028
90948A2002
main90948-A2002
91672L1275
main91672-L1275
57 parts on this diagram · 2 diagrams in section
