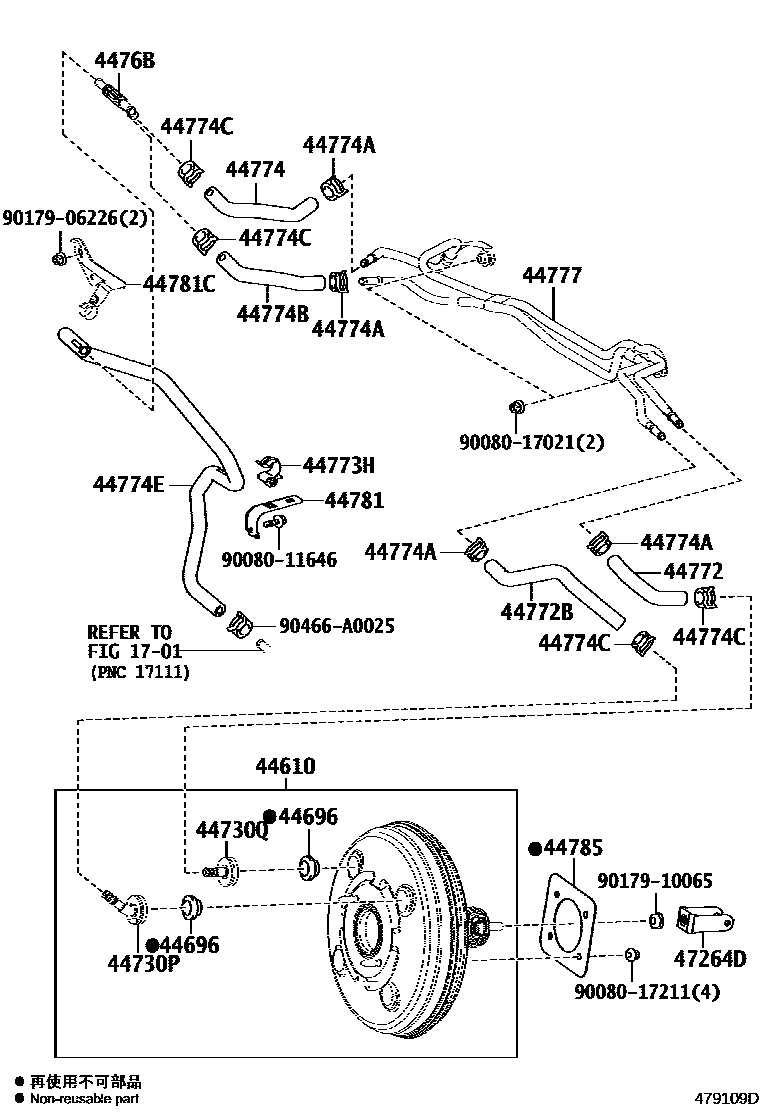

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1701

44610BOOSTER ASSY, BRAKE

main44610-0E080iGSU5#201312-201611

main44610-0E100iASU50201312-201611

main44610-0E150iGSU5#..N201611

MEXICO

main44610-0E160iGSU5#..G,M201611

LE PACKAGE

44696GROMMET, CHECK VALVE

main90080-48071iGSU5#201312-201611

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iGSU5#201312-201611

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-12040iASU50201312-201611

44730QVALVE ASSY, VACUUM CHECK, NO.2

main44730-20080iASU50201312-201611

4476BEJECTOR, BRAKE BOOSTER VACUUM

main4476B-48010iASU50201312-201611

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-48060iASU50201312-201611

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-48070iASU50201312-201611

44773HCLAMP(FOR UNION TO CHECK VALVE HOSE)

main90469-17002iASU50,GSU5#201312-201611

44774HOSE, UNION TO CONNECTOR TUBE

main44774-48050iASU50201312-201611

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500iASU50201312-201611

44774BHOSE, UNION TO CONNECTOR TUBE

main44774-48060iASU50201312-201611

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iASU50201312-201611

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-48110iASU50201312-201611

44777CONNECTOR, VACUUM HOSE, NO.1

main44770-48060iASU50201312-201611

44781BRACKET, HOSE

main44447-0E030iGSU5#201312-201611

main44447-48030iASU50201312-201611

44781CBRACKET, HOSE CLAMP, NO.2

main44781-48010iASU50201312-201611

44785GASKET, BRAKE BOOSTER

main44785-07010iASU50,GSU5#201312-201611

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-06040iASU50201312-201809

main47264-06040iGSU5#201808

(L)

main47264-48020iASU50201808

(J)

9008011646

main90080-11646

9008017021

main90080-17021

9008017211

main90080-17211

9017906226

main90179-06226

9017910065

main90179-10065

90466A0025

main90466-A0025

26 parts on this diagram · 3 diagrams in section
