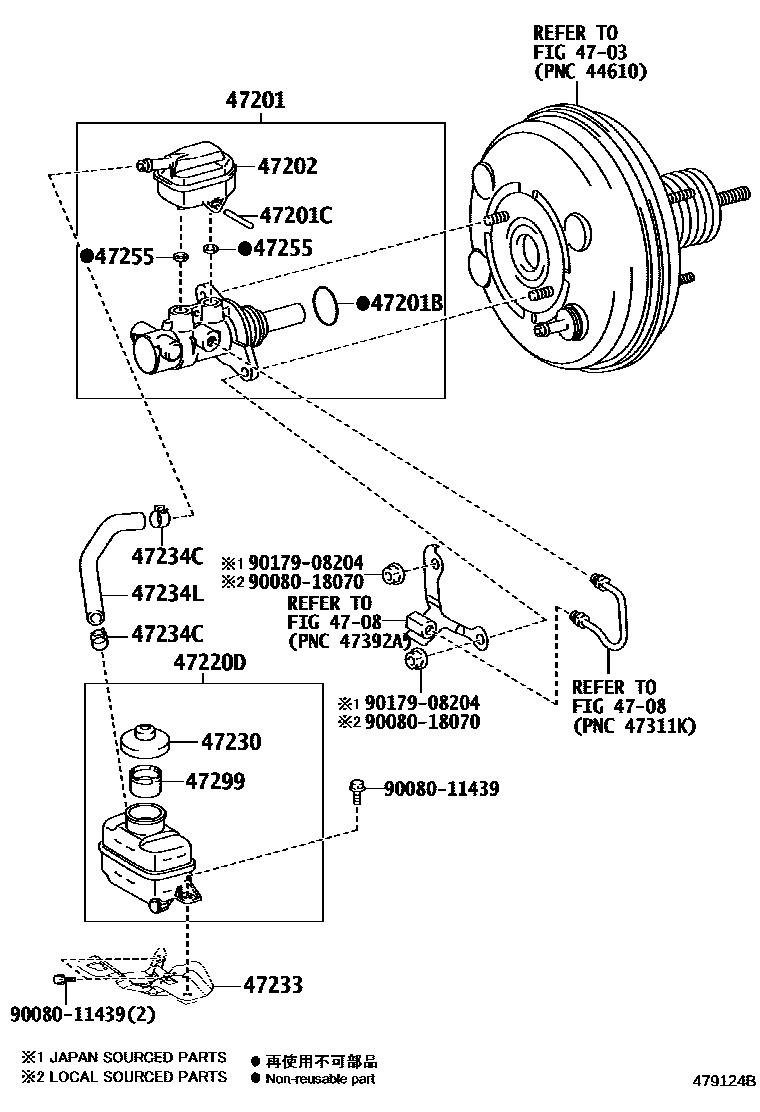

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-08080iASU50,GSU5#201709-201801

sub47201-0E060

main47201-0E060iASU50,GSU5#201802

main47201-48202iASU50,GSU5#201312-201708

main47201-48210iGVU58201401-201611

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASU50,GSU5#201312-201611

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iASU50,GSU5#201312-201611

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-48200iASU50,GSU5#201312-201611

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0E070iASU50,GSU5#201312-201611

main47220-48220iGVU58201401-201611

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iASU50,GSU5#201312-201412

sub47230-01031

main47230-01031iASU50,GSU5#201412-201611

main47230-11010iGVU58201704

main47230-47090iGVU58201612-201704

main47230-58010iGVU58201401-201612

sub47230-11010

47233BRACKET, RESERVOIR

main47233-0E040iASU50,GSU5#201312-201611

main47233-48140iGVU58201401-201611

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90466-A0013iASU50,GSU5#201312-201611

47234LHOSE, RESERVOIR, NO.1

main47234-48140iGVU58201401-201505

main47234-48141iGVU58201506-201611

sub47234-48310

main47234-48210iASU50,GSU5#201312-201611

main47234-48310iGVU58201701

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iGVU58201401-201611

main90029-48001iASU50,GSU5#201312-201611

sub90016-AT001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iASU50,GSU5#201312-201611

main47299-48180iGVU58201401-201611

9008011439

main90080-11439

9008018070

main90080-18070

9017908204

main90179-08204

16 parts on this diagram · 2 diagrams in section
