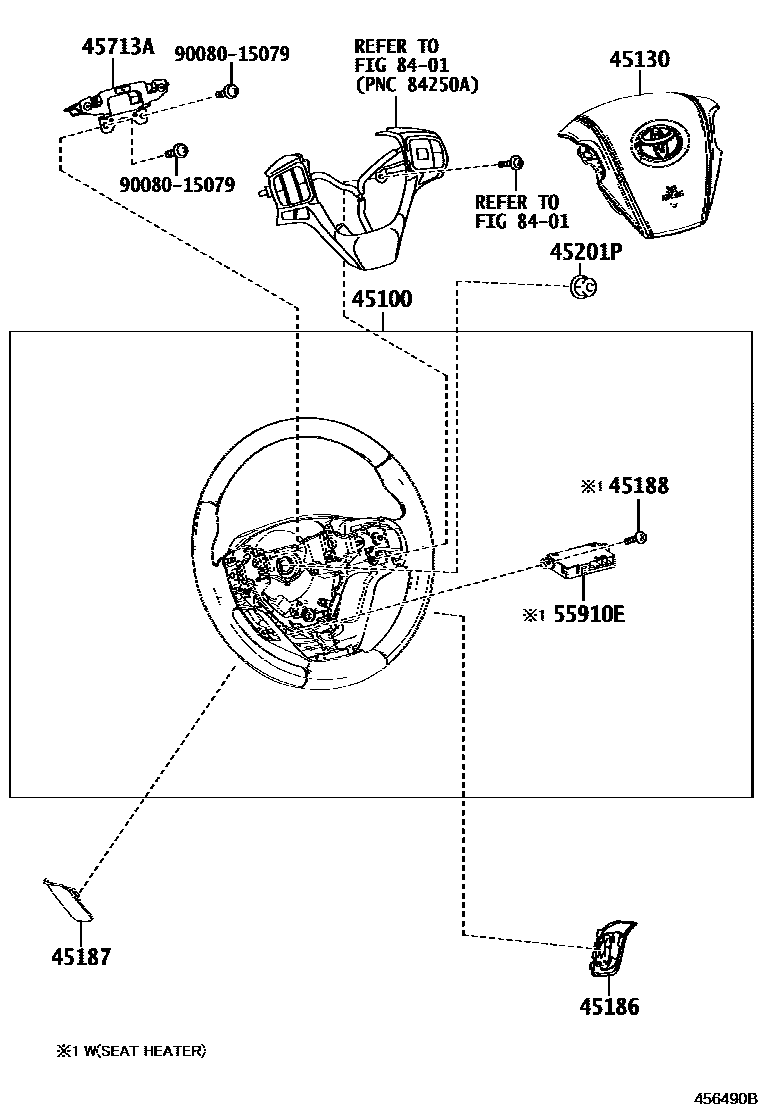

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,BLACK,TRIM0#,1#,2#
3-SPOKE,URETHANE,BLACK,TRIM1#,2#
3-SPOKE,LEATHER,LE PACKAGE,BLACK,TRIM0#,1#,2#
3-SPOKE,LEATHER,BLACK,TRIM0#,1#,2#,4#
3-SPOKE,LEATHER,BLACK,TRIM0#,1#,2#
45130BUTTON ASSY, HORN
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#,4#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#,4#
45188SCREW, STEERING WHEEL PAD ATTACHING
main90080-16108
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
55910ECONTROL ASSY, STEERING WHEEL HEATER
8401
9008015079
main90080-15079
10 parts on this diagram · 1 diagram in section
