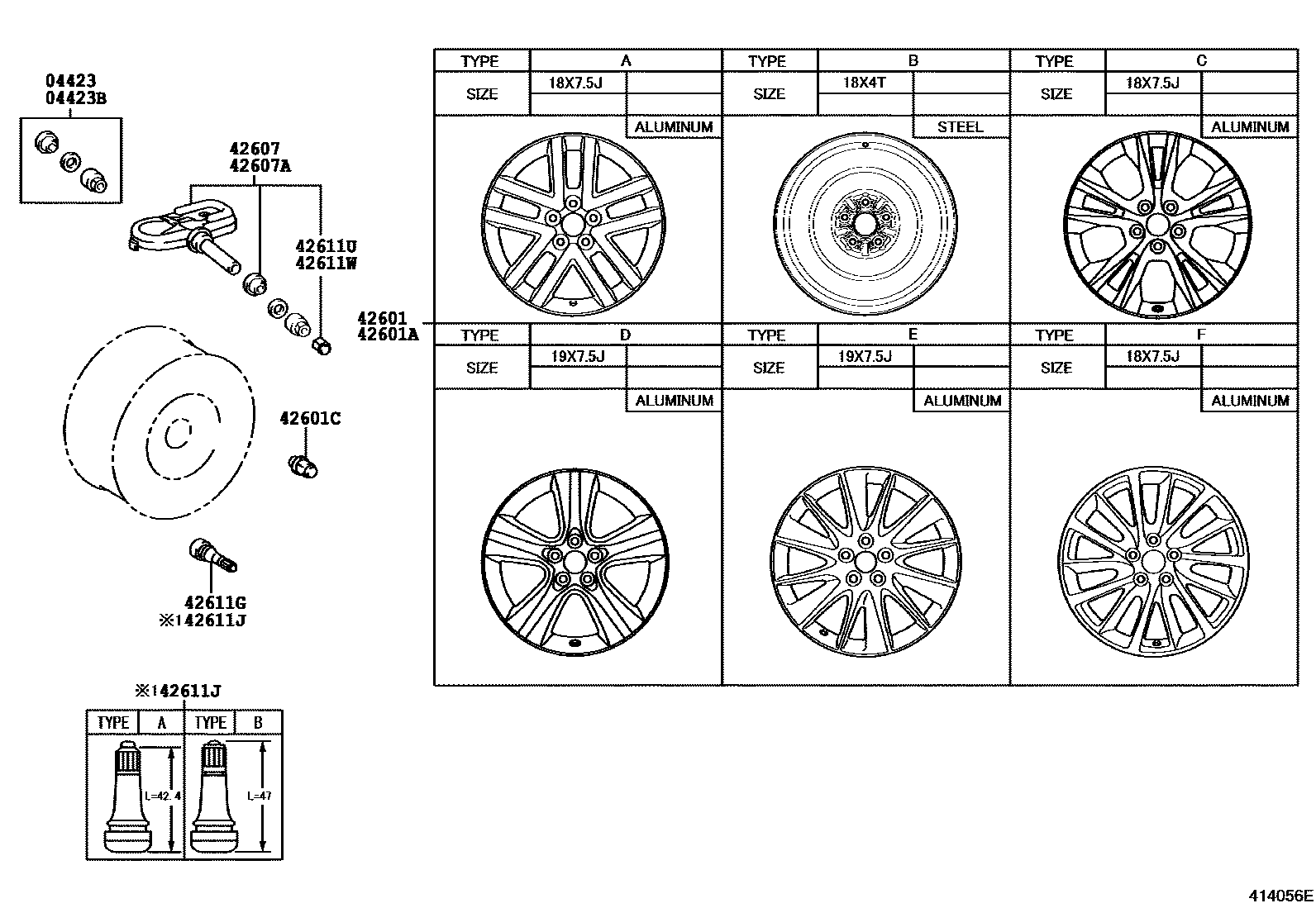

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
19X7.5J,#,TYPE D:REFER ILLUST.
18X7.5J,#,TYPE A:REFER ILLUST.
18X7.5J,#,LE PACKAGE,TYPE C:REFER ILLUST.
18X7.5J,#,TYPE C:REFER ILLUST.
18X7.5J,#,USA POSSESSION SPEC&LE PACKAGE,TYPE C:REFER ILLUST.
19X7.5J,#,TIRE & DISK WHEEL-245/55R19 ALUMI,TYPE E:REFER ILLUST.
19X7.5J,#,TYPE E:REFER ILLUST.
19X7.5J,#,MEXICO SPEC&TIRE & DISK WHEEL-245/55R19 ALUMI,TYPE E:REFER ILLUST.
19X7.5J,#,USA POSSESSION SPEC&TIRE & DISK WHEEL-245/55R19 ALUMI,TYPE E:REFER ILLUST.
18X7.5J,#,TYPE C:REFER ILLUST.
18X7.5J,#,TYPE F:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
42601CNUT, HUB (FOR AXLE)
sub90942-A1009
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
USA POSSESSION SPEC&TIRE & DISK WHEEL-245/55R19 CHROME PAINTED
USA POSSESSION SPEC&TIRE & DISK WHEEL-245/55R19 ALUMI
USA POSSESSION SPEC
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
MEXICO
MEXICO&TIRE & DISK WHEEL-245/55R19 ALUMI BLACK
42611UCAP, TIRE VALVE
USA POSSESSION SPEC
USA POSSESSION SPEC&TIRE & DISK WHEEL-245/55R19 CHROME PAINTED
USA POSSESSION SPEC&TIRE & DISK WHEEL-245/55R19 ALUMI
42611WCAP, TIRE VALVE (FOR SPARE)
11 parts on this diagram · 3 diagrams in section
