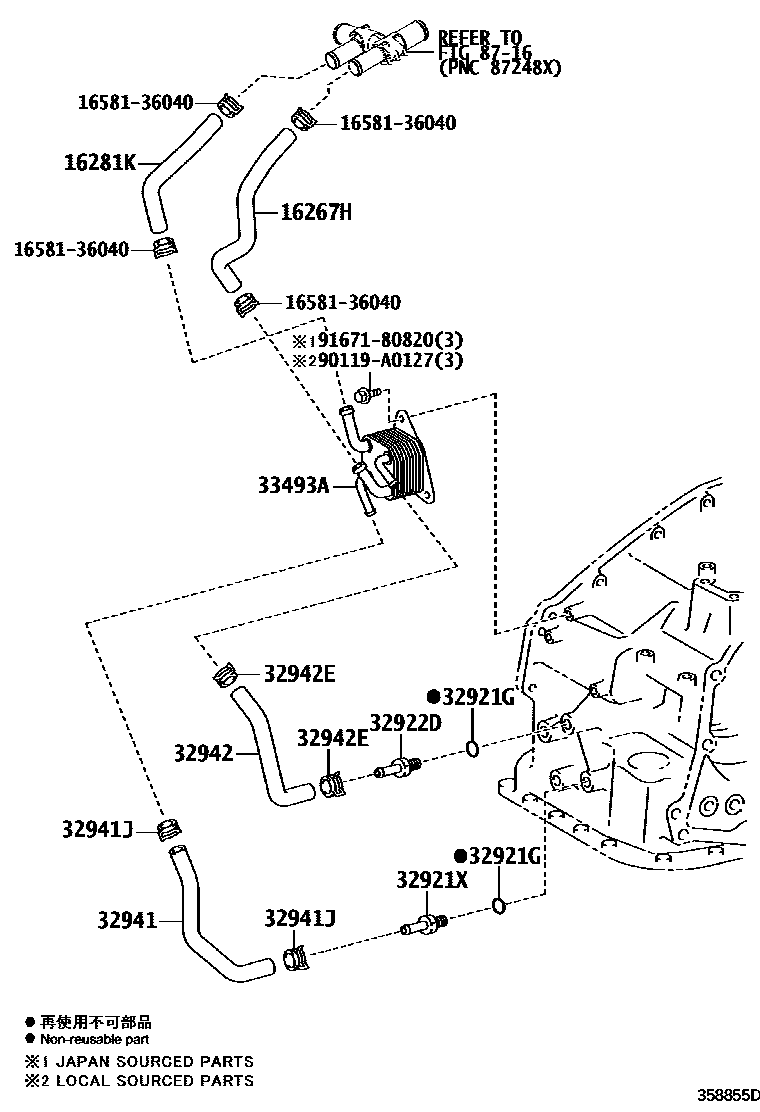

OIL COOLER & TUBE (ATM)

0001 1U760E 0002 1U660E,U660F 0003 1U660E,U660F,TOWING PACKAGE-500004 1UA80E,UA80F

16267HHOSE, WATER BY-PASS, NO.3

main16267-0P130i2GRFKS..GSU5#201611

NO.1

main16267-0P140i2GRFKS..GSU5#201611

NO.2

main16267-0V060i1ARFE..ASU50201312-201611

16281KHOSE, WATER BY-PASS, NO.4

main16281-0P130i2GRFKS..GSU5#201611

NO.1

main16281-0P140i2GRFKS..GSU5#201611

NO.2

main16281-0V060i1ARFE..ASU50201312-201611

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031iGSU5#201312-201501

main90301-11031iASU50201707

*349

main90301-A0022iASU50201611-201709

*325

main90301-A0022iGSU5#201312-201611

32921XUNION OR ELBOW, OIL COOLER INLET

main90404-14027iASU50,GSU5#201312-201611

main90404-A0002iASU50,GSU5#201506-201606

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90404-14027iASU50,GSU5#201312-201611

main90404-A0002iASU50,GSU5#201506-201606

32941HOSE, OIL COOLER INLET, NO.1

main32930-0E050iGSU5#201312-201611

main32941-08051iGSU5#201611

main32941-0E050iASU50201312-201611

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-A0014iGSU5#201312-201611

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-08050iGSU5#201611-201701

sub32942-08051

main32942-08051iGSU5#201702-201906

main32942-08052iGSU5#201906

main32942-0E070iASU50201312-201611

main32942-0E080iGSU5#201312-201611

main32942-0E110iGSU5#201312-201611

TOWING PACKAGE-5000LBS

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-A0014iASU50,GSU5#201312-201611

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-06020iGSU5#201611-201909

sub33493-06021

main33493-06021iGSU5#201910-201911

main33493-48010iASU50201312-201911

8716

1658136040CLAMP, HOSE(FOR WATER HOSE)

main16581-36040

90119A0127

main90119-A0127

9167180820

main91671-80820

14 parts on this diagram · 4 diagrams in section
