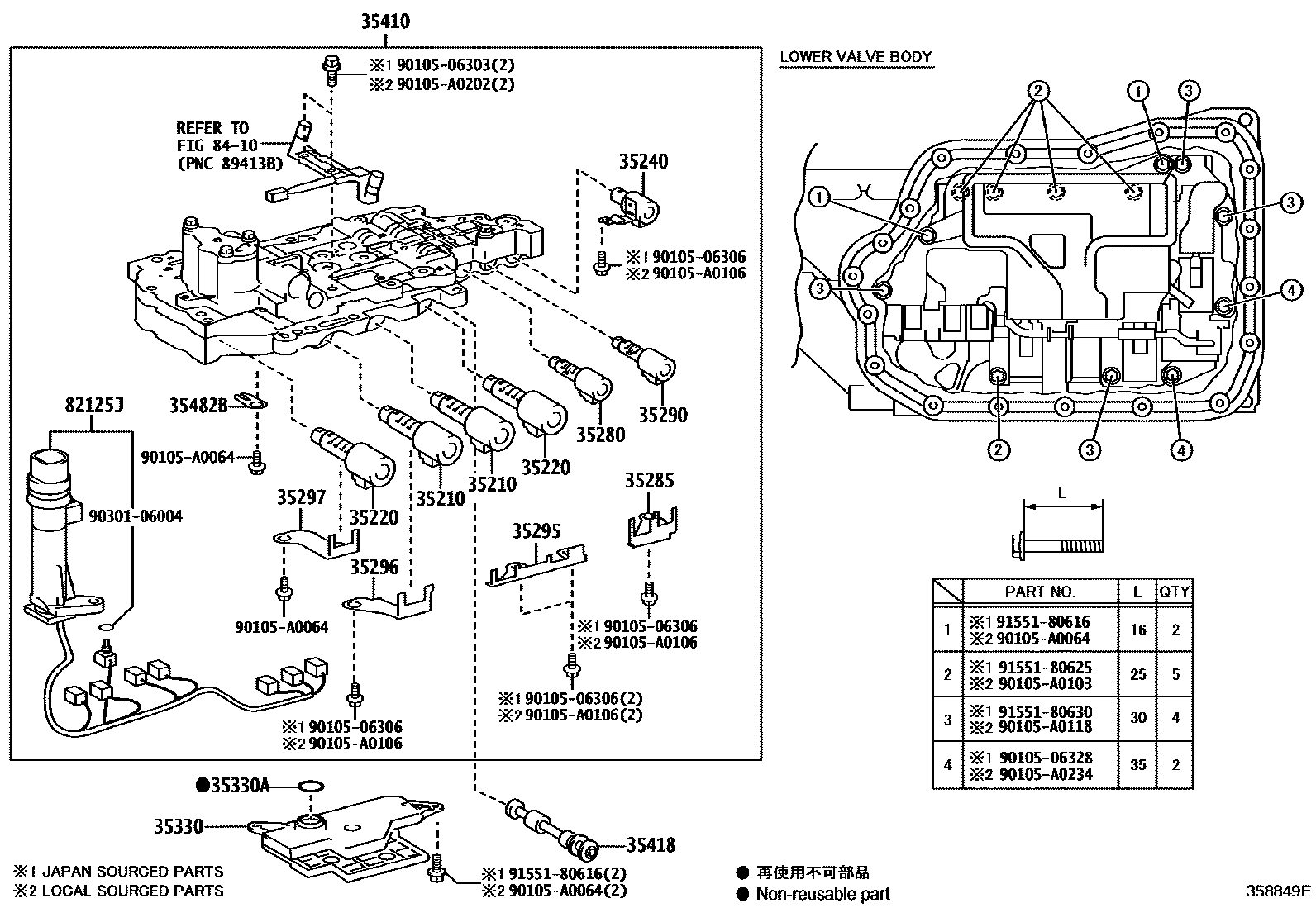

VALVE BODY & OIL STRAINER (ATM)

0001 1U760E 0002 1U660E,U660F 0003 1U660E,U660F,U760E 0005 1UA80E,UA80F

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33030iASU50201312-201611

main35210-73010iASU50201312-201409

sub35210-33030

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-33040iGSU5#201312-201611

main35220-48020iASU50201410-201611

main35220-73010iASU50201312-201409

sub35220-48020

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-73010iASU50,GSU5#201312-201611

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-33020iASU50201312-201611

main35280-52040iGSU5#201312-201611

35285PLATE, SOLENOID LOCK

main35285-06010iASU50201312-201611

main35285-06010iASU50201611-201709

(L)

main35285-06020iGSU5#201808

(L)

main35285-33070iASU50201707

(J)

main35285-48030iGSU50201611-201905

(J)

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33040iASU50201312-201611

35295PLATE, SOLENOID LOCK, NO.2

main35295-06010iASU50201312-201611

main35295-06010iASU50201611-201709

(L)

main35295-33050iASU50201707

(J)

35296PLATE, SOLENOID LOCK, NO.3

main35296-06010iASU50201611-201709

(L)

main35296-06010iASU50201312-201611

main35296-33050iASU50201707

(J)

35297PLATE, SOLENOID LOCK, NO.4

main35297-06010iASU50201312-201611

main35297-06010iASU50201611-201709

(L)

main35297-33020iASU50201707

(J)

35330STRAINER ASSY, VALVE BODY OIL

main35330-0R010iASU50201312-201611

main35330-0R010iASU50201611-201709

(L)

main35330-48020iGSU5#201312-201611

main35330-73010iASU50201707

(J)

35330ARING, O (FOR OIL STRAINER)

main90301-27015iGSU5#201312-201501

*322

main90301-27015iASU50201707

*349

main90301-A0026iGSU5#201501-201611

*323

main90301-A0026iASU50201611-201709

*325

main90301-A0026iASU50201312-201611

35410BODY ASSY, TRANSMISSION VALVE

main35410-06050iGSU5#..N201808

TMMWV:REFER 35-01

main35410-06050iGSU5#..N201808

MEXICO,TMMWV:REFER 35-01

main35410-08021iGSU5#201501-201611

sub35410-33240

main35410-0E010iGSU5#..N201808

LE PACKAGE,TMMWV:REFER 35-01

main35410-0E010iGSU5#..N201808

TMMWV:REFER 35-01

main35410-0R010iASU50201312-201611

sub35410-06020

main35410-0R010iASU50201611-201709

*325

sub35410-06020

main35410-33240iGSU5#201312-201501

main35410-33260iASU50201707

*349

main35410-48070iGSU50..G,M201611-201905

MEXICO,TOYOTA:REFER 35-01

sub35410-48090

main35410-48070iGSU50..G,M201611-201905

TOYOTA:REFER 35-01

sub35410-48090

main35410-48080iGSU5#..G,M201611-201905

TOYOTA:REFER 35-01

sub35410-48100

main35410-48080iGSU5#..N201611-201905

LE PACKAGE,TOYOTA:REFER 35-01

sub35410-48100

main35410-48090iGSU50..N201711-201905

MEXICO,AISIN:REFER 35-01

main35410-48090iGSU50..N201611-201905

AISIN:REFER 35-01

main35410-48100iGSU55..G,M201611

AISIN:REFER 35-01

main35410-48100iGSU55..G,M201611

LE PACKAGE,AISIN:REFER 35-01

35418VALVE, MANUAL

main35418-73010iASU50,GSU5#201312-201611

35482BCLAMP, TEMPERATURE SENSOR

main35482-06020iASU50201312-201611

main35482-06020iASU50201611-201709

(L)

main35482-73010iGSU5#201611

main35482-73010iASU50201707

(J)

82125JWIRE, TRANSMISSION

main82125-06281iGSU50..G,M201808

MEXICO,(L)

main82125-06281iGSU50..G,M201808

(L)

main82125-33150iGSU5#201312-201611

sub82125-33151

main82125-33170iGSU50..G,M201611-201807

MEXICO

sub82125-33171

main82125-33171iGSU50..G,M201808

(J)

main82125-33171iGSU50..G,M201808

MEXICO,(J)

main82125-33210iGSU5#..G,M201611-201807

LE PACKAGE

sub82125-33211

main82125-33211iGSU5#..G,M201808

LE PACKAGE

main82125-73010iASU50201312-201807

sub82125-73011

main82125-73011iASU50201808

8410

9010506303

main90105-06303

9010506306

main90105-06306

9010506328

main90105-06328

90105A0064

main90105-A0064

90105A0103

main90105-A0103

90105A0106

main90105-A0106

90105A0118

main90105-A0118

90105A0202

main90105-A0202

90105A0234

main90105-A0234

9030106004

main90301-06004

9155180616

main91551-80616

9155180625

main91551-80625

9155180630

main91551-80630

29 parts on this diagram · 4 diagrams in section
