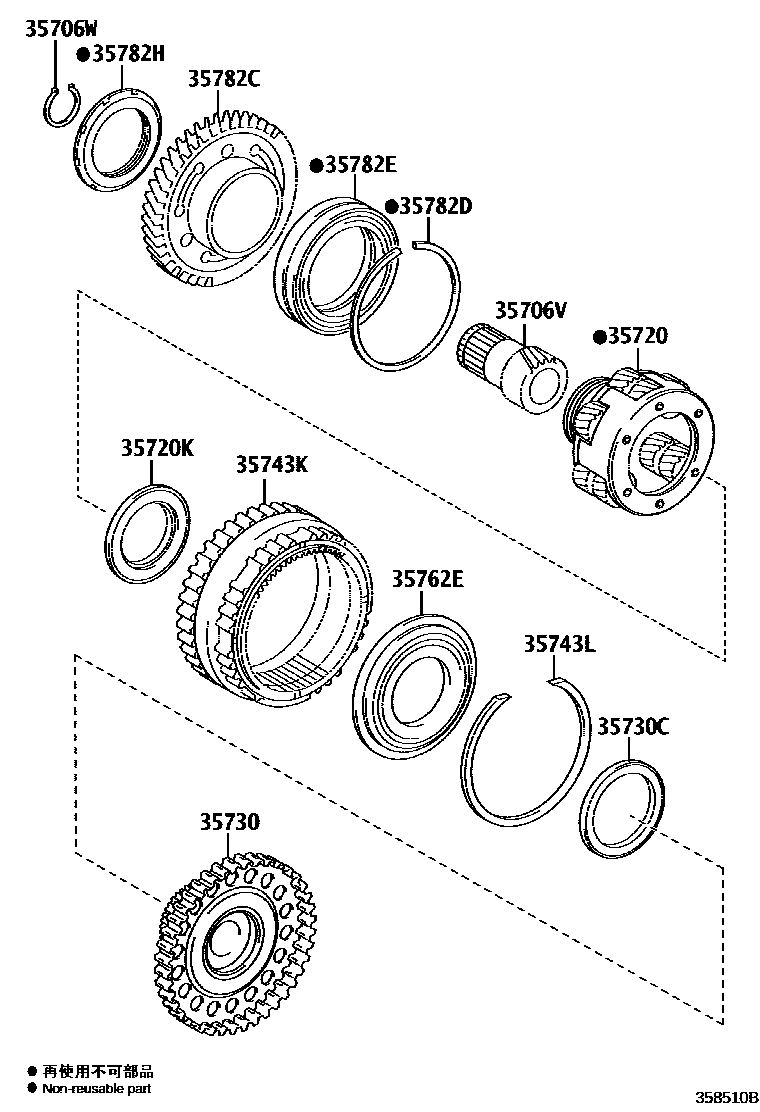

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35706VGEAR SUB ASSY, PLANETARY SUN
(L)
(J)
AISIN:REFER 35-01
MEXICO,AISIN:REFER 35-01
(J)
35706WRING, SNAP (FOR PLANETARY SUN GEAR)
35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)
(J)
(L)
35730GEAR ASSY, REAR PLANETARY SUN
(J)
35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)
(J)
(L)
35743GEAR, FRONT PLANETARY RING
35743KGEAR, PLANETARY RING
*349
35743LRING, SNAP (FOR PLANETARY RING GEAR)
(J)
(L)
35762EFLANGE, PLANETARY RING GEAR
35782CGEAR, COUNTER DRIVE
*349
35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
(J)
*325
(L)
35782HNUT(FOR COUNTER DRIVE GEAR)
(J)
(L)
14 parts on this diagram · 4 diagrams in section
