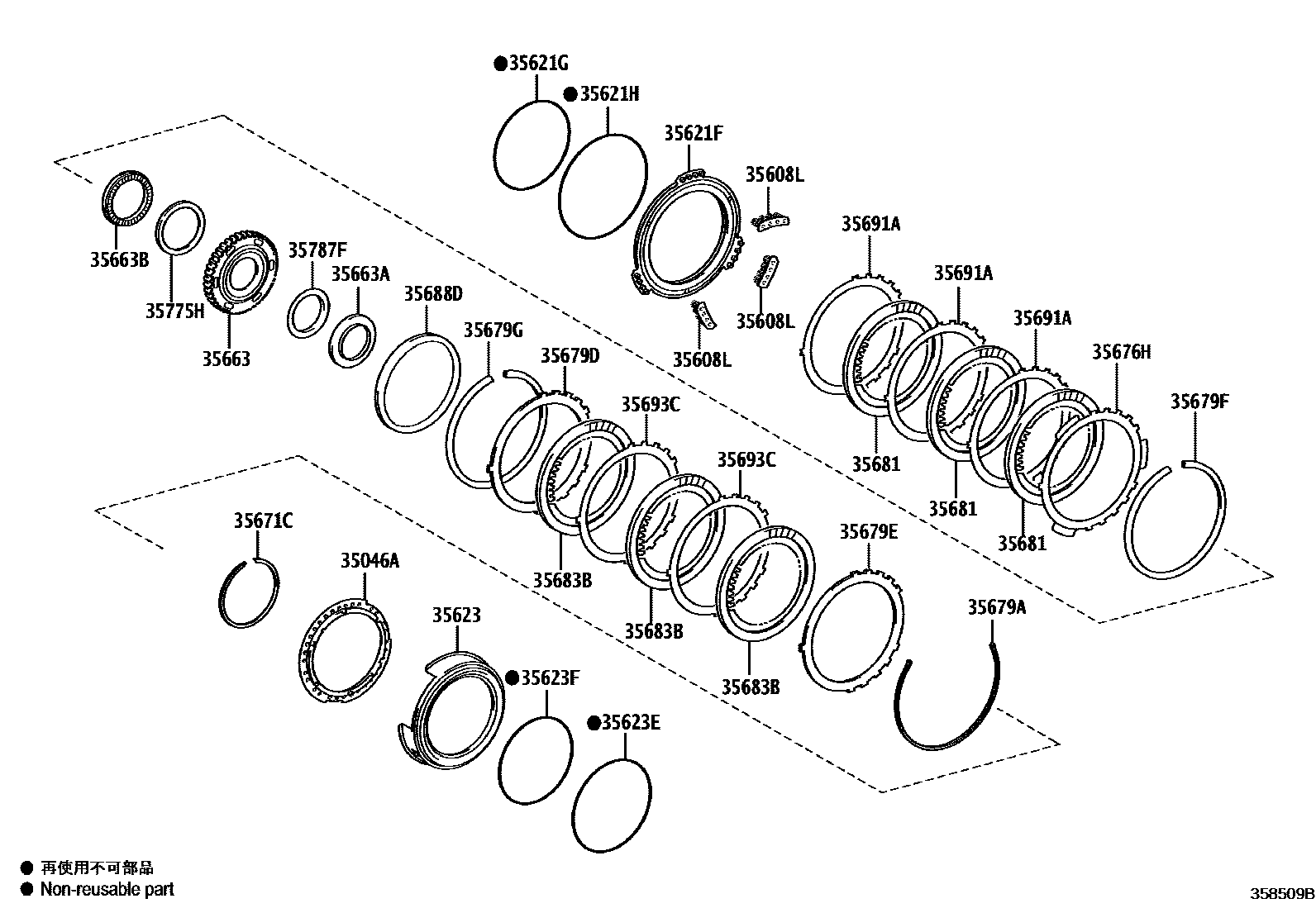

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35046ASPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3
(L)
(J)
35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
(L)
(J)
35621GRING, O (FOR BRAKE PISTON INNER)
*349
*325
35621HRING, O (FOR BRAKE PISTON OUTER)
*325
*349
35623PISTON, BRAKE, NO.3
(L)
(J)
35623ERING, O, NO.1 (FOR BRAKE PISTON)
*349
*325
35623FRING, O, NO.2 (FOR BRAKE PISTON)
35663ABEARING, THRUST NEEDLE ROLLER, NO.1
(J)
(L)
35663BBEARING, THRUST NEEDLE ROLLER, NO.2
*349
*325
35671CRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
(J)
(L)
35676HFLANGE, BRAKE, NO.1
T=3.0,MARK 30
T=3.1,MARK 31
T=3.2,MARK 32
T=3.3,MARK 33
T=3.4,MARK 34
T=3.5,MARK 35
T=3.0,MARK 30
T=3.1,MARK 31
T=3.2,MARK 32
T=3.3,MARK 33
T=3.4,MARK 34
T=3.5,MARK 35
T=3.6,MARK 36
T=3.0,MARK 30,(J)
T=3.1,MARK 31,(J)
T=3.2,MARK 32,(J)
T=3.3,MARK 33,(J)
T=3.4,MARK 34,(J)
T=3.5,MARK 35,(J)
T=3.6,MARK 36,(J)
35679ARING, HOLE SNAP(FOR BRAKE FLANGE)
(J)
(L)
35679DFRANGE, BRAKE, NO.2
*325
*349
35679EFRANGE, BRAKE, NO.3
T=3.8,MARK 38
T=3.8,MARK 38,(L)
T=3.9,MARK 39
T=3.9,MARK 39,(L)
T=4.0,MARK 40
T=4.0,MARK 40,(L)
T=4.1,MARK 41
T=4.1,MARK 41,(L)
T=4.2,MARK 42
T=4.2,MARK 42,(L)
T=4.3,MARK 43
T=4.3,MARK 43,(L)
T=3.8,MARK 38,(J)
T=3.8,MARK 38
T=3.9,MARK 39
T=3.9,MARK 39,(J)
T=4.0,MARK 40
T=4.0,MARK 40,(J)
T=4.1,MARK 41
T=4.1,MARK 41,(J)
T=4.2,MARK 42
T=4.2,MARK 42,(J)
T=4.3,MARK 43
T=4.3,MARK 43,(J)
T=4.4,MARK 44
T=4.4,MARK 44,(J)
T=4.5,MARK 45
35679FRING, SNAP(FOR BRAKE FLANGE)
35679GRING, SNAP (FOR RAKE FLANGE NO.3)
35681DISC, BRAKE, NO.1
(L)
(J)
35683BDISC, BRAKE, NO.3
(L)
(J)
35691APLATE, BRAKE, NO.1
(L)
(J)
35693CPLATE, BRAKE, NO.3
*325
*349
35775HRACE, THRUST BEARING, NO.5
*325
*349
