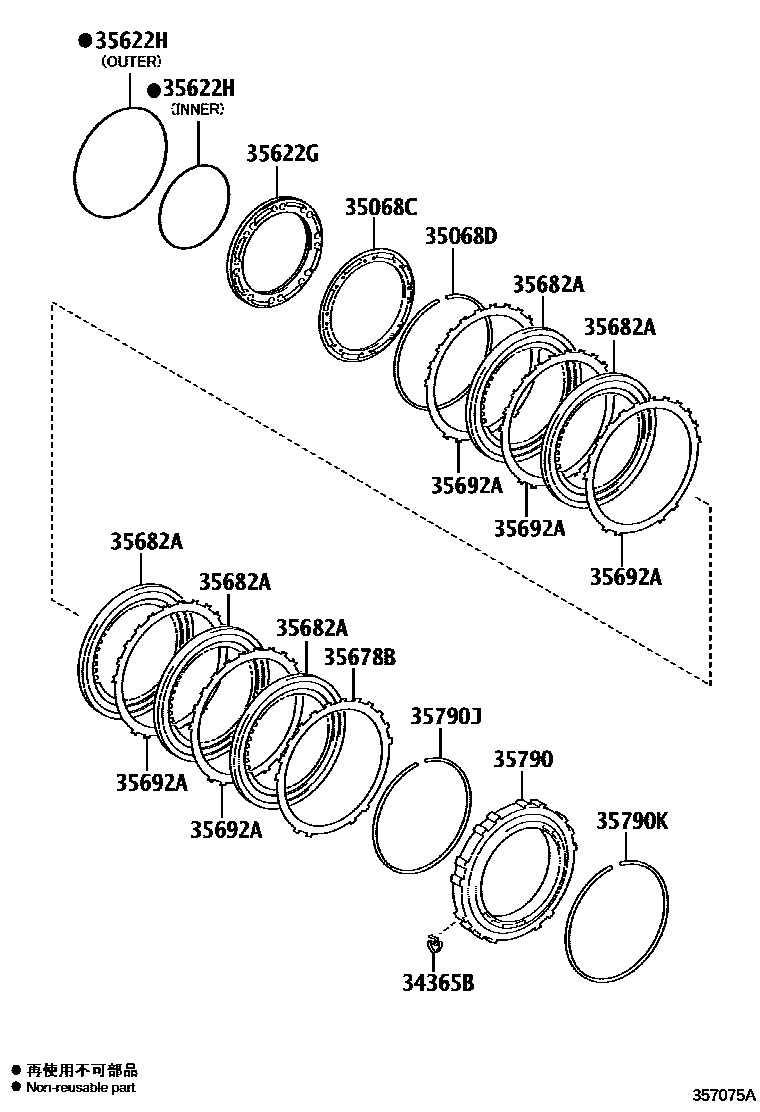

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
34365BRETAINER, OUTER RACE
35068CSPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
(L)
(J)
35068DRING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
(J)
(L)
35622HRING, O (FOR BRAKE PISTON NO.2)
*349,INNER
INNER
*349,OUTER
OUTER
INNER
*325,INNER
OUTER
*325,OUTER
35678BFLANGE, BRAKE, NO.2
T=4.1,MARK 41
T=4.1,MARK 41,*325
T=4.2,MARK 42
T=4.2,MARK 42,*325
T=4.4,MARK 44
T=4.4,MARK 44,*325
T=4.0,MARK 40
T=4.1,MARK 41
T=4.2,MARK 42
T=4.3,MARK 43
T=4.4,MARK 44
T=4.0,MARK 40A,*349
T=4.1,MARK 41A,*349
T=4.2,MARK 42A,*349
T=4.3,MARK 43A,*349
T=4.4,MARK 44A,*349
35692APLATE, BRAKE, NO.2
(L)
(J)
35790CLUTCH ASSY, 1 WAY
*325
*349
35790JRING, SNAP NO.1 (FOR 1 WAY CLUTCH)
(J)
(L)
35790KRING, SNAP NO.2 (FOR 1 WAY CLUTCH)
(J)
11 parts on this diagram · 1 diagram in section
