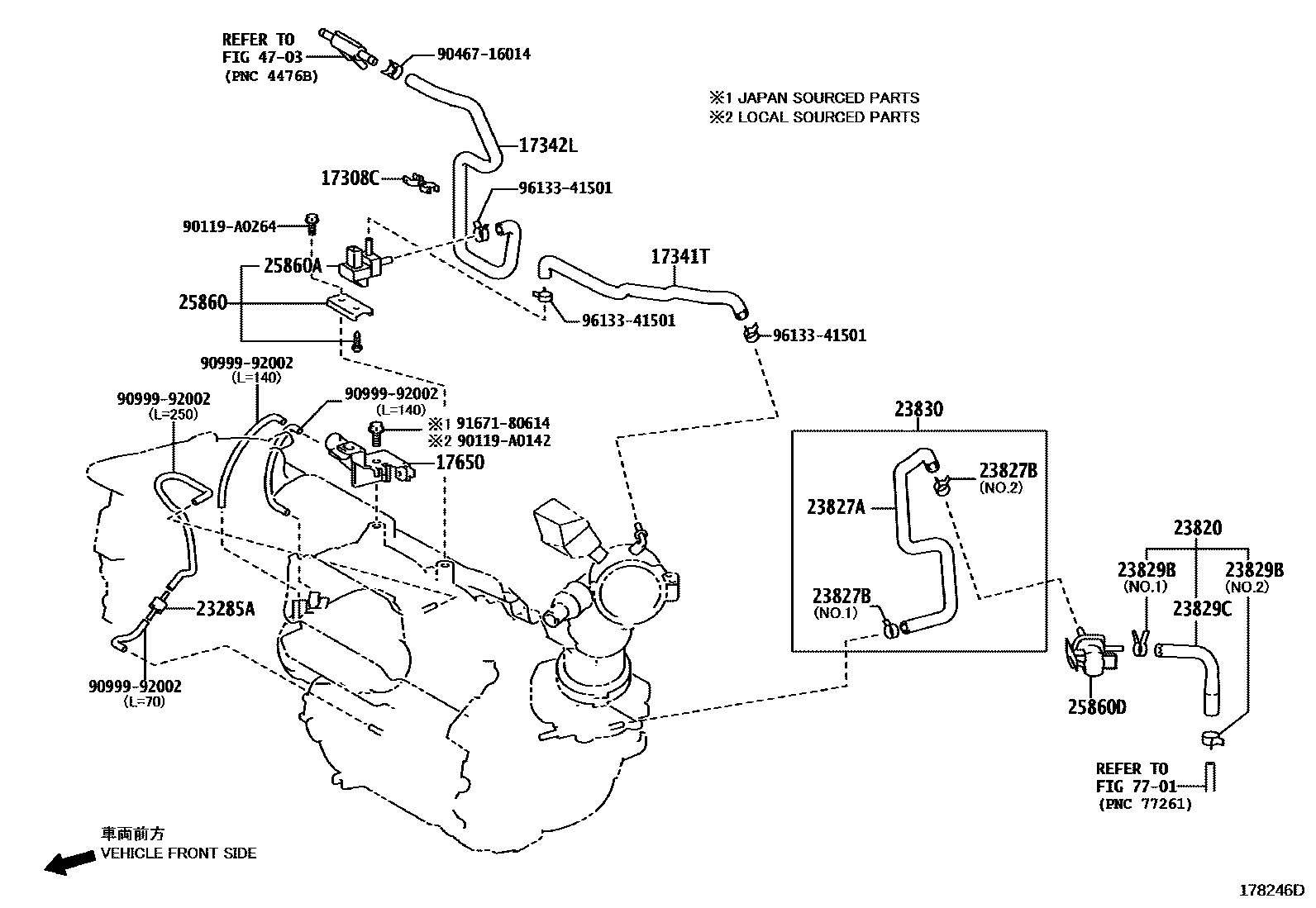

VACUUM PIPING
17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308CCLAMP(FOR VACUUM HOSE)
17341THOSE, AIR, NO.1
17342LHOSE, AIR, NO.2
17650VALVE ASSY, VACUUM SWITCHING
*535
*524
23285AVALVE, CHECK, NO.1
*535
*524
23820HOSE ASSY, FUEL VAPOR FEED
23827AHOSE, FUEL VAPOR FEED, NO.2
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
NO.1:REFER ILLUST.
NO.1
NO.1:REFER ILLUST.
NO.1
(L),NO.1
NO.1
NO.2
NO.2:REFER ILLUST.
NO.3
NO.2
(J),NO.1
23829CHOSE, FUEL VAPOR FEED, NO.2
23830HOSE ASSY, FUEL VAPOR FEED, NO.2
25860VALVE ASSY, VACUUM SWITCHING, NO.1
(L),NO.1
NO.1
(J),NO.1
NO.2
25860AVALVE, VACUUM SWITCHING, NO.1
25860DVALVE ASSY, VACUUM SWITCHING, NO.2
4703
7701
90119A0142
main90119-A0142
90119A0264
main90119-A0264
9046716014
main90467-16014
9099992002
main90999-92002
9167180614
main91671-80614
9613341501
main96133-41501
23 parts on this diagram · 5 diagrams in section
