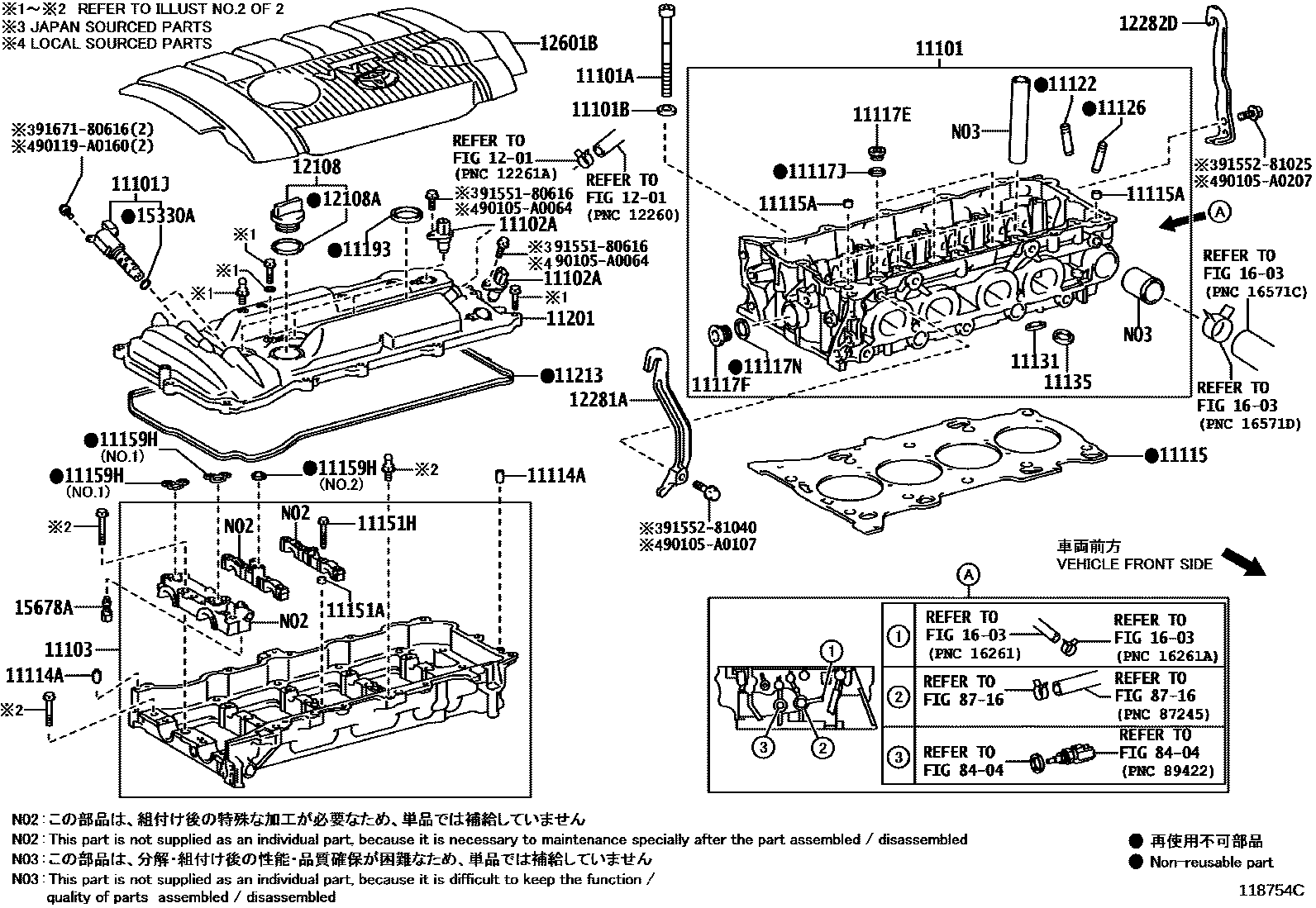

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
W/(PNC 11117A)
*467,(J)
*427
*446
*535
*524
11101ABOLT(FOR CYLINDER HEAD SET)
(J)
*524
(J)
*535
(L)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
(J)
*535
*524
(L)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
*535
*524
11102HEAD, CYLINDER, LH
W/O(PNC 11117A)
*427
*467,(J)
*446
11102ASENSOR, CAMSHAFT POSITION
*524
*535
11114APIN, STRAIGHT
L=13.8,OD=5.0
L=13.8,OD=5.0,(J)
L=14,OD=6,*535
L=14,OD=6,*524
L=14,OD=6
L=13.8,OD=5.0,(L)
11115APIN, RING
*524
*535
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
*524
*535
(J)
(L)
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
*535
*524
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
NO.2
*535
*524
NO.1
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
*535
*524
11122BUSH, INTAKE VALVE GUIDE
STD
STD
STD,*535
O/S 0.05,*524
O/S 0.05
O/S 0.05,*535
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD,*535
STD
O/S 0.05
O/S 0.05,*535
11131SEAT, INTAKE VALVE
STD,(L)
STD
STD
STD,*535
STD,*524
O/S 0.03,(L)
O/S 0.03
O/S 0.03
O/S 0.03,*535
O/S 0.03,*524
11135SEAT, EXHAUST VALVE
STD,(L)
STD
STD
STD,*535
STD,(J)
STD
STD
STD,*524
O/S 0.03,(L)
O/S 0.03
O/S 0.03
O/S 0.03,*535
O/S 0.03,(J)
O/S 0.03
O/S 0.03,*524
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11
L=12.5,OD=8
L=12.5,OD=8,*535
L=12.5,OD=8,*524
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
*524
*535
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
*535,NO.1:REFER ILL.
NO.1:REFER ILLUST.
*524,NO.1:REF.ILLUST
*524,NO.2:REF.ILLUST
NO.2:REFER ILLUST.
*535,NO.2:REFER ILL.
11193GASKET, SPARK PLUG TUBE
*535
*524
(J)
11201COVER SUB-ASSY, CYLINDER HEAD
*535
(J)
*524
11213GASKET, CYLINDER HEAD COVER
(L)
(J)
*535
*524
1201
12108CAP SUB-ASSY, OIL FILLER
(J)
*524
12108AGASKET(FOR OIL FILLER CAP)
(J)
*524
12281AHANGER, ENGINE, NO.1
*535
*524
12282DHANGER, ENGINE, NO.2
*524
*535
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
(J)
*524
15678AFILTER, OIL CONTROL VALVE
(L),*535
(L)
(J)
(J),*535
*524
1603
8404
8716
90105A0064
main90105-A0064
90105A0107
main90105-A0107
90105A0207
main90105-A0207
90119A0160
main90119-A0160
9155180616
9155281025
9155281040
9167180616
43 parts on this diagram · 14 diagrams in section
