ENGINE OVERHAUL GASKET KIT

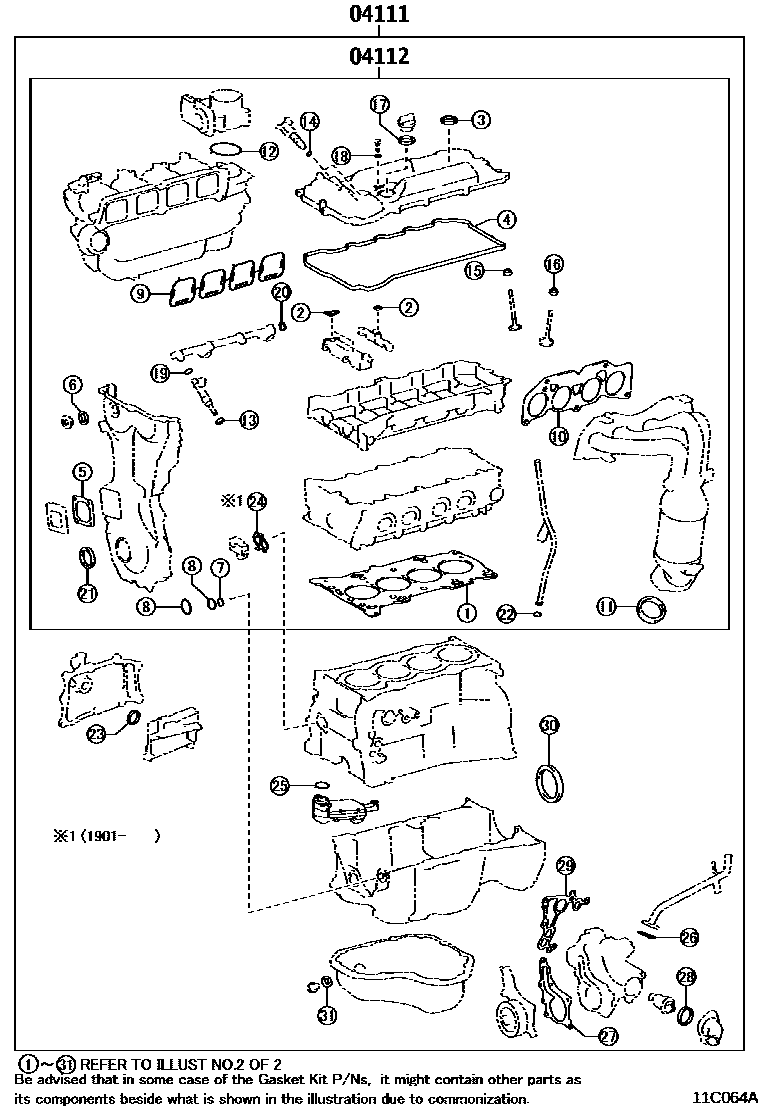

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-0P064i201312-201508
sub04111-0P065
main04111-0P065i201508-201611
main04111-0P203i201807
sub04111-0P204
main04111-0P240i201611-201711
sub04111-0P241
main04111-0P241i201711-201806
sub04111-0P242
main04111-0P242i201806-201807
sub04111-0P203
main04111-0V031i201810-201901
(L)
sub04111-0V032
main04111-0V031i201312-201810
sub04111-0V032
main04111-0V032i201901
(L)
main04111-31B90i201401-201503
sub04111-31B91
main04111-31B91i201503-201611
main04111-31C80i201611-201711
sub04111-31C81
main04111-31C81i201711-201806
sub04111-31C82
main04111-31C82i201806
sub04111-31C83
main04111-36047i201810
(J)
04112GASKET KIT, ENGINE VALVE GRIND
main04112-0P055i201312-201611
main04112-0P200i201611-201711
sub04112-0P201
main04112-0P201i201711-201806
sub04112-0P202
main04112-0P202i201806
sub04112-0P203
main04112-0V031i201312-201611
sub04112-0V032
main04112-0V031i201611-201901
(L)
sub04112-0V032
main04112-0V032i201901
(L)
main04112-31860i201401-201611
main04112-31A20i201611-201711
sub04112-31A21
main04112-31A21i201711-201806
sub04112-31A22
main04112-31A22i201806
sub04112-31A23
main04112-36045i201810-201901
(J)
sub04112-36046
main04112-36046i201901
(J)

2 parts on this diagram · 10 diagrams in section
