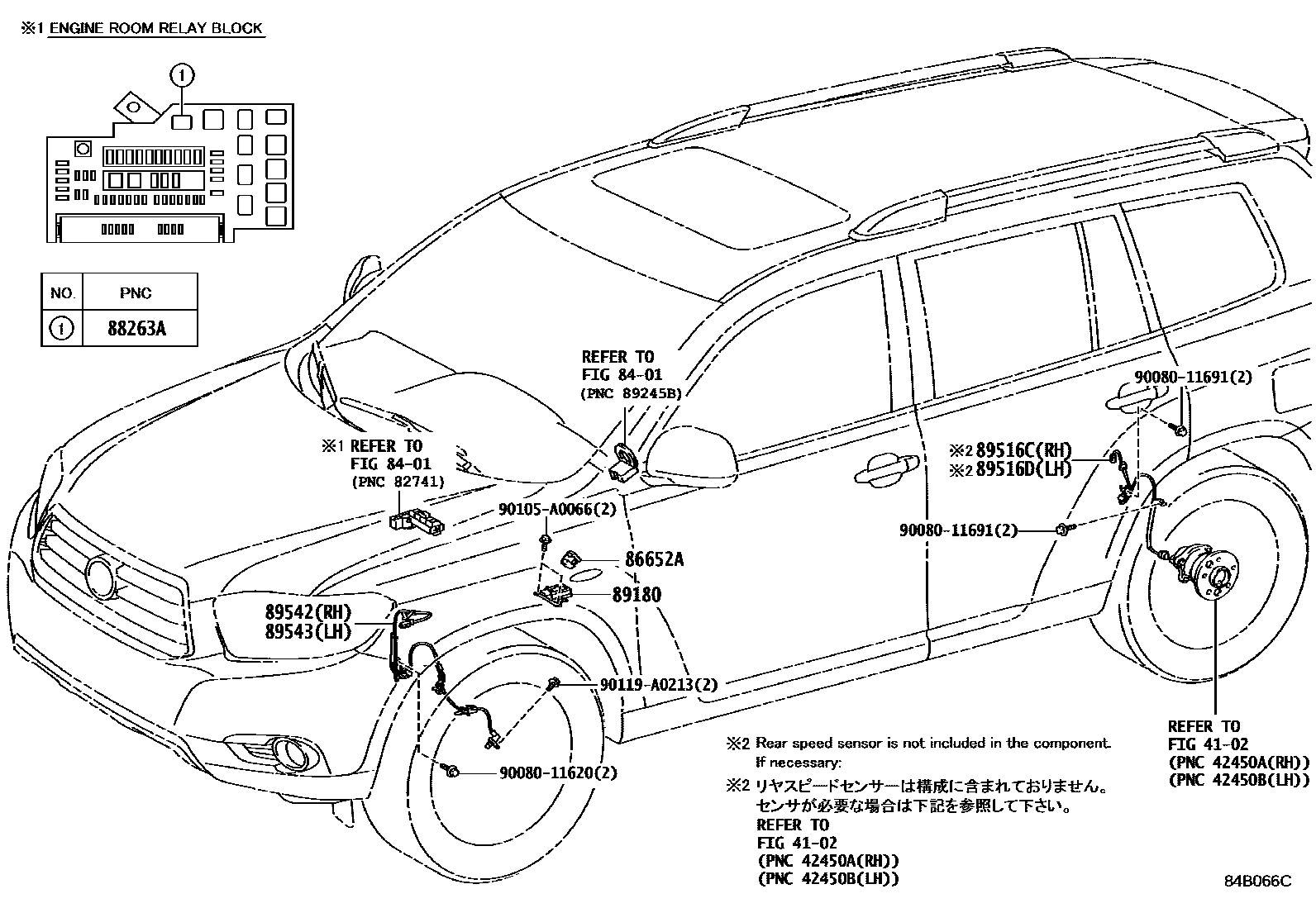

ABS & VSC

0001 1 0002 1

4102

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iASU40,GSU4#200910-201008

88263ARELAY, SKID CONTROL

main90084-98032iASU40,GSU4#200910-201008

89180SENSOR ASSY, YAWRATE

main89180-48090iASU40,GSU4#200910-201008

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-0E080iASU40,GSU40200910-201312

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-0E090iASU40,GSU40200910-201008

89542SENSOR, SPEED, FRONT RH

main89542-0E020iASU40,GSU4#200910-201008

sub89542-0E080

89543SENSOR, SPEED, FRONT LH

main89543-0E020iASU40,GSU4#200910-201008

sub89543-0E080

9008011620

main90080-11620

9008011691

main90080-11691

90105A0066

main90105-A0066

90119A0213

main90119-A0213

13 parts on this diagram · 2 diagrams in section
